C6472 Evaluation Module
4
The TMDXEVM6472 (Evaluation Module) kit includes:
TMS320C6472 Evaluation Module (Printed circuit board
assembly)
Power supply and power cord
USB Cable for on-board JTAG emulation
Ethernet cable
Software (DVD) and documentation
1

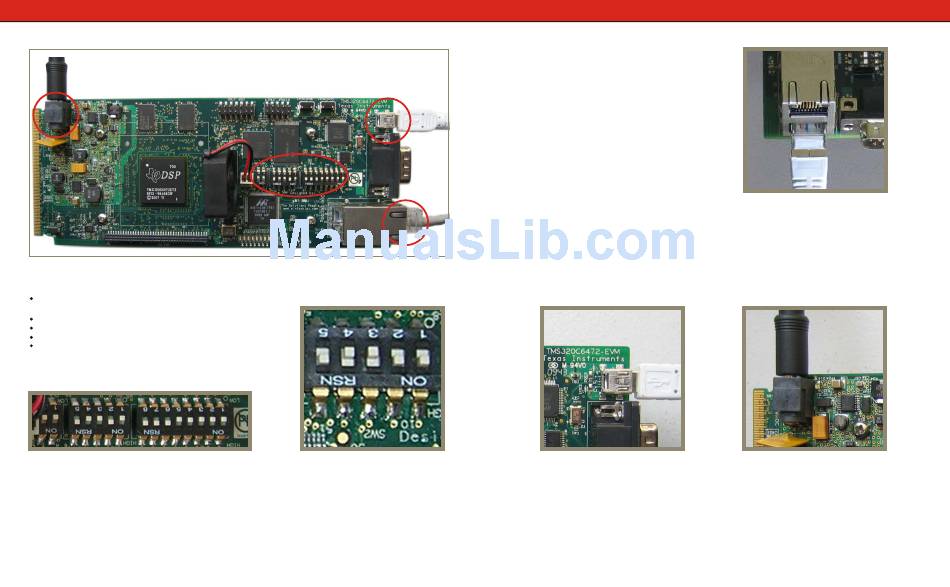

Ensure EVM
configuration switches
are set as shown.
©2009 Texas Instruments Incorporated
2
1
3
1
To run Out-Of-Box
a
demo through
NAND, configure
the switches as
shown above.
eInfochips Literature: EVM6472_QSG_0.2
1a
The EVMC6472 is also shipped
with an Out-Of-Box Demo application
flashed into NAND. This is a network
based application which starts an HTTP
server and a TELNET server with the
following static IP address:
192.168.2.100. The application enables
the following:
User switch 1 OFF - Static IP set as
192.168.2.100 (recommended)
User switch 1 ON - Obtains IP address
from DHCP server
In order to connect to the board, the
test PC should be configured with
static IP address: 192.168.2.101. Once
the User LEDs are OFF (indicating
successful NAND boot) the user can
access the following URL through a
browser to view Out-Of-Box demo:
http://192.168.2.100
2
Connect the USB miniB
cable to J7 plug for on
board embedded
emulation, as shown in
figure. (For use with CCS
debugger only)
©2009 Texas Instruments Incorporated
3
Connect Ethernet switch /
router / PC to the lower Giga
Ethernet port (J3) of EVM6472
board using an Ethernet
cable to access EMAC0. Use
upper Giga Ethernet port of
J3 to access EMAC1.
4
Connect the 12V DC
power adapter
(supplied with the kit) to
power jack (J6).
