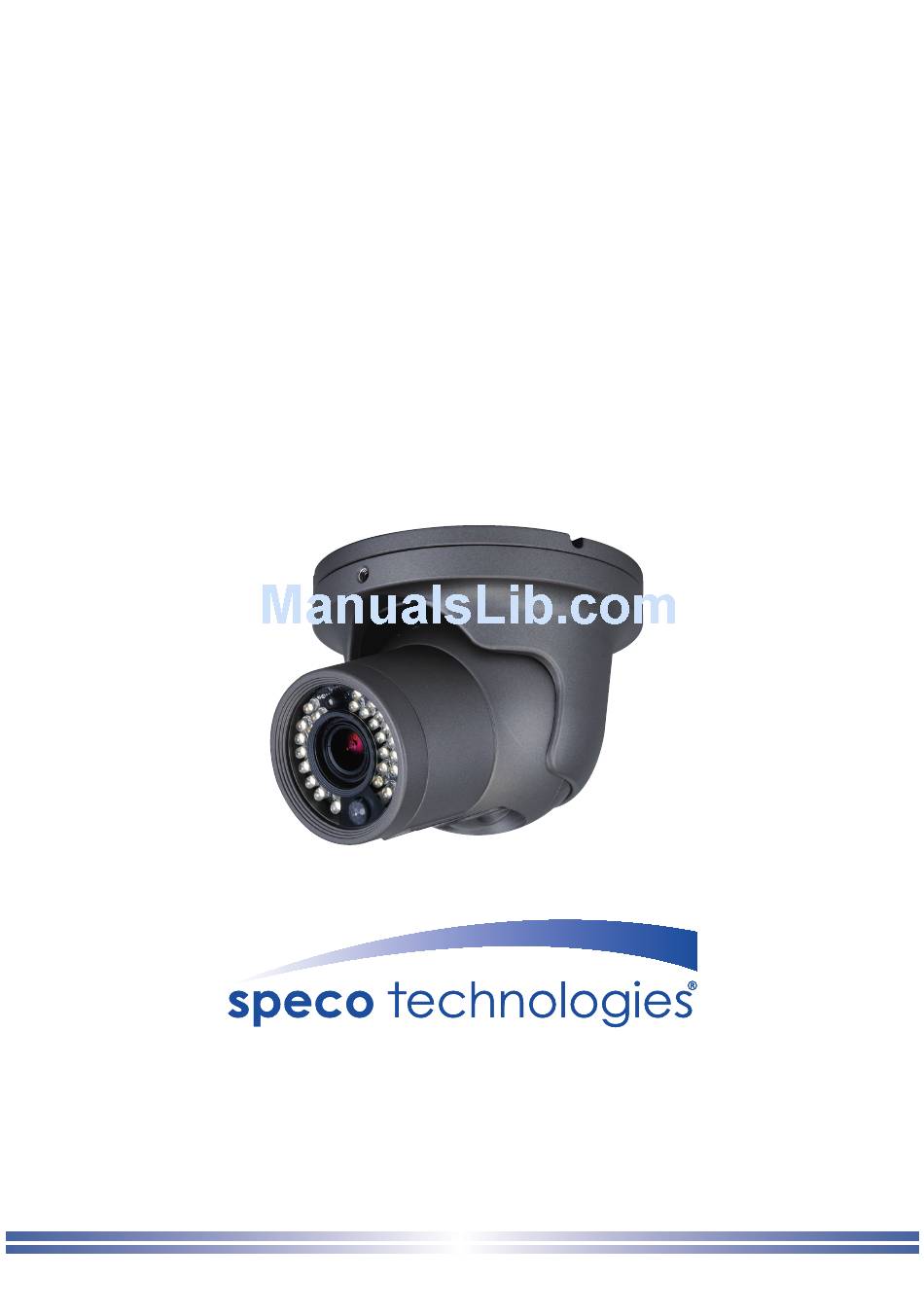

- Page 1 INSTRUCTION MANUAL PIR Sensor Camera CVC5300DPVF / CVC5300DPVFW Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/20/2012...
-
Page 2: Table Of Contents
Contents Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-8 ◑ Specifications ..........9 ◑ Camera Dimension ........10 ◑ Features ............11 ◑ OSD Menu Details ........12-24 ◑... -
Page 3: Precautions
Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly. - Page 4 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
-
Page 5: Safety Instructions
Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑... -
Page 6: Package Contents
Package Contents Please make sure that the following items are included in the Package: 1) CVC5300DPVF, CVC5300DPVFW • 1 Video Test Connector, Power Jack • 2 Wrenches • Set Screw - 3 Tapping Screws 4x25 - 2 Hexagon Socket Screws M6x20... -
Page 7: Camera Installation
CAMERA INSTALLATION... - Page 8 CAMERA INSTALLATION Compatibility 1)CVC5300DPVF, CVC5300DPVFW INTWM INTPM JB03TG...
-
Page 9: Camera Installation
CAMERA INSTALLATION 1. CVC5300DPVF, CVC5300DPVFW BALL DOME BASE TAPPING SCREW 4X25, 3EA BALL DOME ASSEMBLY HEXAGON SOCKET SCREW M6X20, 2EA BALL DOME BODY... -
Page 10: Specifications
PIR Sensor Weatherproof Dome Camera DC Auto Iris Varifocal Lens(2.8mm-12mm) ■ CVC5300DPVF ■ CVC5300DPVFW 600TV Lines DC Auto Iris Varifocal Lens(2.8mm-12mm) True Day / Night Capability ICR-IR Cut Filter Removable White LEDs * 6pcs IR LEDs * 24pcs 0.00002Lux 512x SPECIFICATIONS CVC5300DPVF / CVC5300DPVFW MODEL... -
Page 11: Camera Dimension
CAMERA DIMENSION CVC5300DPVF, CVC5300DPVFW 5.47” dia... -
Page 12: Features
General Features Ultra High Sensitivity ◑ - The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower illumination. 600TV Lines ◑ - By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV lines for color and a horizontal resolution of 700TV lines for BW mode. -
Page 13: Osd Menu Details
OSD Control Button 1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control. 2. Type D is extra Option (wired Remote controller) ▲ Up button: Moves the cursor upwards. Use this button to select an item or adjust the parameters. -
Page 14: Menu Setup
Menu Setup ● 1. Press the Function Setup switch. - Main setup menu is displayed on the monitor screen. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.SSNR 5.BACKLIGHT 6.DNR3 7.DAY/NIGHT AUTO 8.SPECIAL 9.EXIT SAVE 2. Select a desired function using the Function Setup switch. - Place the cursor over a desired item. -
Page 15: Exposure Setting
- FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode. ☞ NOTE ■ If color rolling occurs when using a DC lens, set Shutter to Fixed (---). Exposure Setting ●... - Page 16 ◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but the higher the noise. * OFF : Deactivates the AGC function. * LOW : Allows automatic gain control from 5.3dB to 32dB. * HIGH : Allows automatic gain control from 5.3dB to 37dB. ◆...
-
Page 17: Ssnr Setting
※ Select one of the following 5 modes, as appropriate for your purpose. ◆ ATW : Select this when the color temperature is between 1,700˚K and 11,000˚K. ◆ OUTDOOR : Select this when the color temperature is between 1,700˚K and 11,000˚K. (sodium light inclusion) ◆... -
Page 18: Backlight Setting
Backlight Setting ● Unlike conventional cameras, the CVC5300DPVF and CVC5400DPVF are designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by using the features of the proprietary W-V DSP chip. 1. When the SETUP menu screen is displayed, select 'BACKLIGHT' by using the Function Setup switch so that the arrow indicates 'BACKLIGHT'. -
Page 19: Dnr3 Setting
BLC SETUP HLC SETUP LEVEL LEVEL MIDDLE LIMITS NIGHT ONLY BOTTOM MASK COLOR BLACK LEFT MASK TONE RIGHT BOTTOM Press Set to Return LEFT RIGHT Press Set to Return ☞ NOTE ■ Because there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance. - Page 20 3. Set the DNR3 mode to 'ON' and press the Function Setup switch. Then you can adjust the noise reduction level. ☞ NOTE ■ You cannot set the DNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’. ■...
-
Page 21: Special Setting
◆ AUTO : The mode is switched to 'Color' in a normal environment, but switches to 'B/W' mode when ambient illumination is low. To set up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W mode. - Page 22 2. Select a desired mode using the Function Setup switch. SPECIAL 1.IMAGE ADJ 2.CAM TITLE 3.SYNC 4.MOTION DET 5.PRIVACY 6.DIS 7.COMM ADJ 8.LANGUAGE ENGLISH 9.RETURN ◆ IMAGE ADJ. : 1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
- Page 23 ☞ NOTE ■ When the V-REV or H-REV mode is enabled, the text on the screen does not flip. ■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ◆ CAM TITLE : If you enter a title, the title will appear on the monitor. 1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates 'CAM TITLE'.
- Page 24 ☞ NOTE ■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization. ■ When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode. ◆ MOTION DET :This product has a feature MOTION DET that allows you to observe movement of 1.SENSITIVITY...
-
Page 25: Exit Setting
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'. 2) Set up the mode using the Function Setup switch. - AREA : You can select up to 12 PRIVACY areas. - MODE : Determines whether to use the area selected in the AREA. -
Page 26: Trouble Shooting
Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞Adjust the monitor controls, as required. - Page 28 ▶ MEMO...
- Page 29 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
