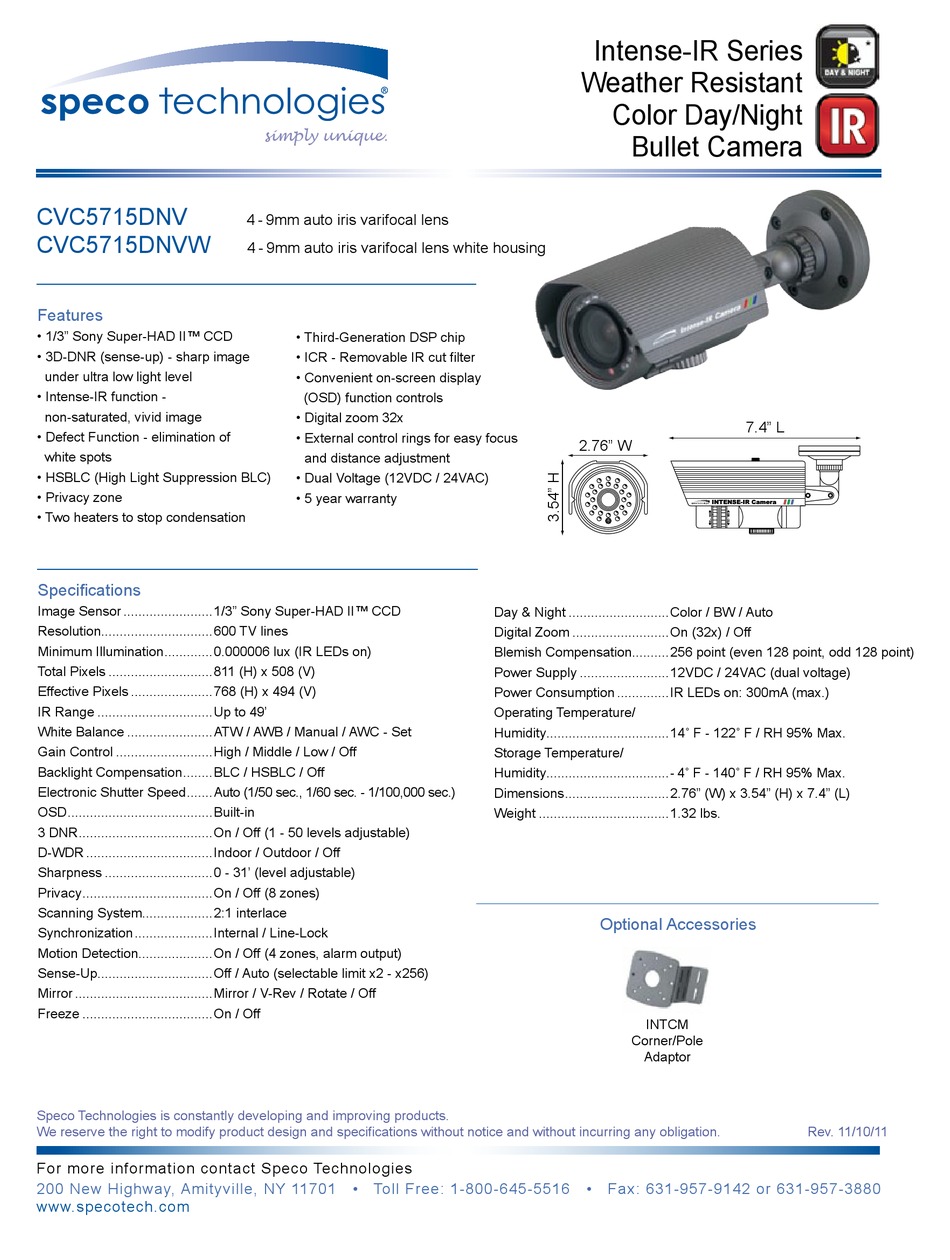

Speco CVC-5715DNV Specifications

CVC5715DNV
CVC5715DNVW
Features
• 1/3" Sony Super-HAD II™ CCD
• 3D-DNR (sense-up) - sharp image
under ultra low light level
• Intense-IR function -
non-saturated, vivid image
• Defect Function - elimination of
white spots
• HSBLC (High Light Suppression BLC)
• Privacy zone
• Two heaters to stop condensation

Specifications

Image Sensor ........................1/3" Sony Super-HAD II™ CCD
Resolution..............................600 TV lines
Minimum Illumination .............0.000006 lux (IR LEDs on)
Total Pixels ............................811 (H) x 508 (V)
Effective Pixels ......................768 (H) x 494 (V)
IR Range ...............................Up to 49'
White Balance .......................ATW / AWB / Manual / AWC - Set
Gain Control ..........................High / Middle / Low / Off
Backlight Compensation ........BLC / HSBLC / Off
Electronic Shutter Speed .......Auto (1/50 sec., 1/60 sec. - 1/100,000 sec.)
OSD .......................................Built-in
3 DNR ....................................On / Off (1 - 50 levels adjustable)
D-WDR ..................................Indoor / Outdoor / Off
Sharpness .............................0 - 31' (level adjustable)
Privacy ...................................On / Off (8 zones)
Scanning System...................2:1 interlace
Synchronization .....................Internal / Line-Lock
Motion Detection....................On / Off (4 zones, alarm output)
Sense-Up...............................Off / Auto (selectable limit x2 - x256)
Mirror .....................................Mirror / V-Rev / Rotate / Off
Freeze ...................................On / Off
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique.
4 - 9mm auto iris varifocal lens
4 - 9mm auto iris varifocal lens white housing
• Third-Generation DSP chip
• ICR - Removable IR cut filter
• Convenient on-screen display
(OSD) function controls
• Digital zoom 32x
• External control rings for easy focus
and distance adjustment
• Dual Voltage (12VDC / 24VAC)
• 5 year warranty
• Toll Free: 1-800-645-5516
Intense-IR Series
Weather Resistant
Color Day/Night
Bullet Camera
2.76" W
Day & Night ...........................Color / BW / Auto
Digital Zoom ..........................On (32x) / Off
Blemish Compensation..........256 point (even 128 point, odd 128 point)
Power Supply ........................12VDC / 24VAC (dual voltage)
Power Consumption ..............IR LEDs on: 300mA (max.)
Operating Temperature/
Humidity.................................14˚ F - 122˚ F / RH 95% Max.
Storage Temperature/
Humidity.................................- 4˚ F - 140˚ F / RH 95% Max.
Dimensions ............................2.76" (W) x 3.54" (H) x 7.4" (L)
Weight ...................................1.32 lbs.
Optional Accessories
INTCM
Corner/Pole
Adaptor
• Fax: 631-957-9142 or 631-957-3880
7.4" L
INTENSE-IR Camera
Rev. 11/10/11
