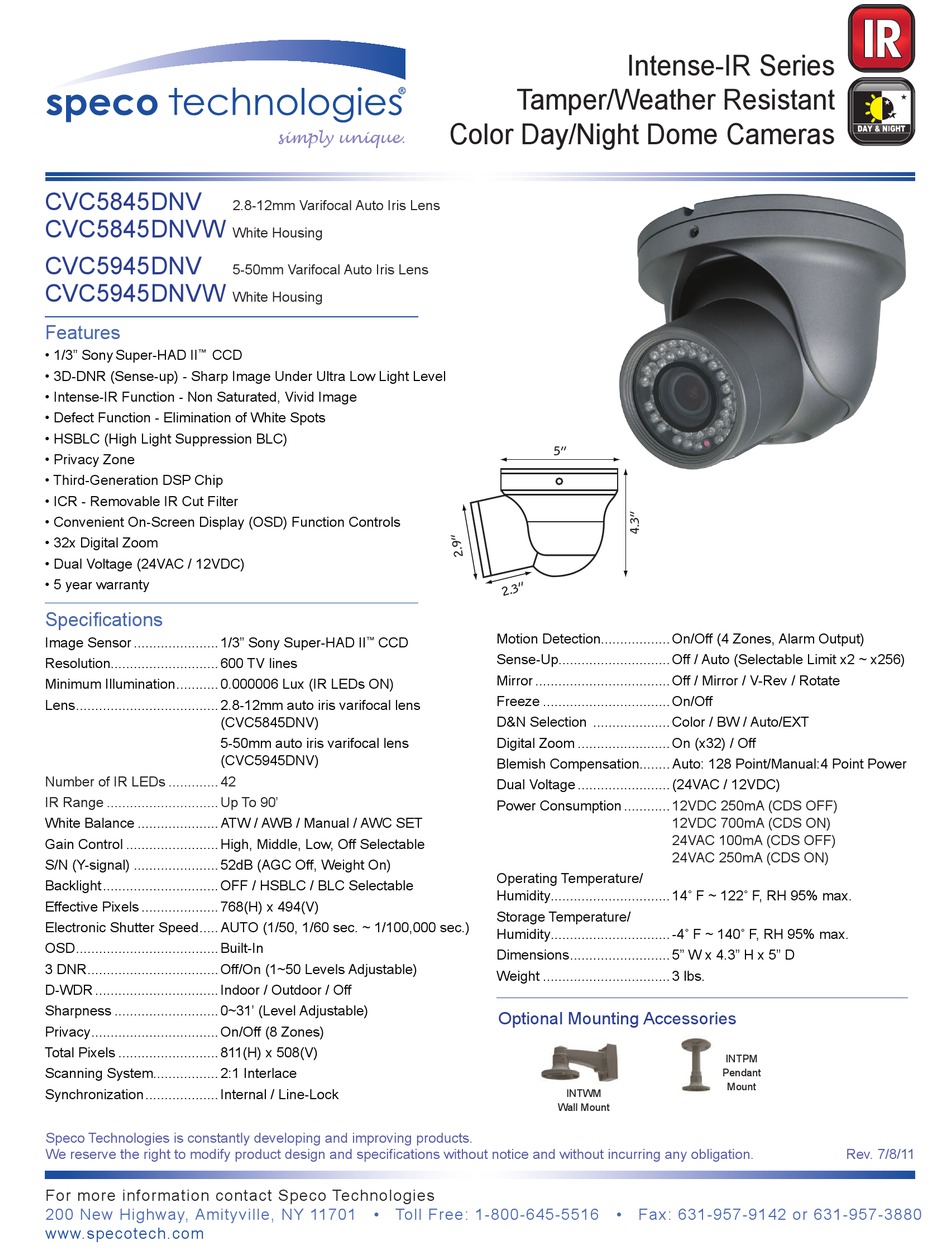

Speco CVC5845DNV Specification Sheet

CVC5845DNV
CVC5845DNVW
CVC5945DNV
CVC5945DNVW
Features
• 1/3" Sony Super-HAD II CCD
™
• 3D-DNR (Sense-up) - Sharp Image Under Ultra Low Light Level
• Intense-IR Function - Non Saturated, Vivid Image
• Defect Function - Elimination of White Spots
• HSBLC (High Light Suppression BLC)
• Privacy Zone
• Third-Generation DSP Chip
• ICR - Removable IR Cut Filter
• Convenient On-Screen Display (OSD) Function Controls
• 32x Digital Zoom
• Dual Voltage (24VAC / 12VDC)
• 5 year warranty

Specifications

Image Sensor ...................... 1/3" Sony Super-HAD II
Resolution............................ 600 TV lines
Minimum Illumination ........... 0.000006 Lux (IR LEDs ON)
Lens ..................................... 2.8-12mm auto iris varifocal lens
(CVC5845DNV)
5-50mm auto iris varifocal lens
(CVC5945DNV)
Number of IR LEDs ............. 42
IR Range ............................. Up To 90'
White Balance ..................... ATW / AWB / Manual / AWC SET
Gain Control ........................ High, Middle, Low, Off Selectable
S/N (Y-signal) ...................... 52dB (AGC Off, Weight On)
Backlight .............................. OFF / HSBLC / BLC Selectable
Effective Pixels .................... 768(H) x 494(V)
Electronic Shutter Speed ..... AUTO (1/50, 1/60 sec. ~ 1/100,000 sec.)
OSD ..................................... Built-In
3 DNR .................................. Off/On (1~50 Levels Adjustable)
D-WDR ................................ Indoor / Outdoor / Off
Sharpness ........................... 0~31' (Level Adjustable)
Privacy ................................. On/Off (8 Zones)
Total Pixels .......................... 811(H) x 508(V)
Scanning System................. 2:1 Interlace
Synchronization ................... Internal / Line-Lock
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique.
2.8-12mm Varifocal Auto Iris Lens
White Housing
5-50mm Varifocal Auto Iris Lens
White Housing
CCD
™
• Toll Free: 1-800-645-5516
Intense-IR Series
Tamper/Weather Resistant
Color Day/Night Dome Cameras
5"
Motion Detection.................. On/Off (4 Zones, Alarm Output)
Sense-Up............................. Off / Auto (Selectable Limit x2 ~ x256)
Mirror ................................... Off / Mirror / V-Rev / Rotate
Freeze ................................. On/Off
D&N Selection .................... Color / BW / Auto/EXT
Digital Zoom ........................ On (x32) / Off
Blemish Compensation........ Auto: 128 Point/Manual:4 Point Power
Dual Voltage ........................ (24VAC / 12VDC)
Power Consumption ............
Operating Temperature/
Humidity............................... 14˚ F ~ 122˚ F, RH 95% max.
Storage Temperature/
Humidity............................... -4˚ F ~ 140˚ F, RH 95% max.
Dimensions .......................... 5" W x 4.3" H x 5" D
Weight ................................. 3 lbs.
Optional Mounting Accessories
INTWM
Wall Mount
•
12VDC 250mA (CDS OFF)
12VDC 700mA (CDS ON)
24VAC 100mA (CDS OFF)
24VAC 250mA (CDS ON)
INTPM
Pendant
Mount
Fax: 631-957-9142 or 631-957-3880
IR
MP
Rev. 7/8/11
