Speco CVC-50BC Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

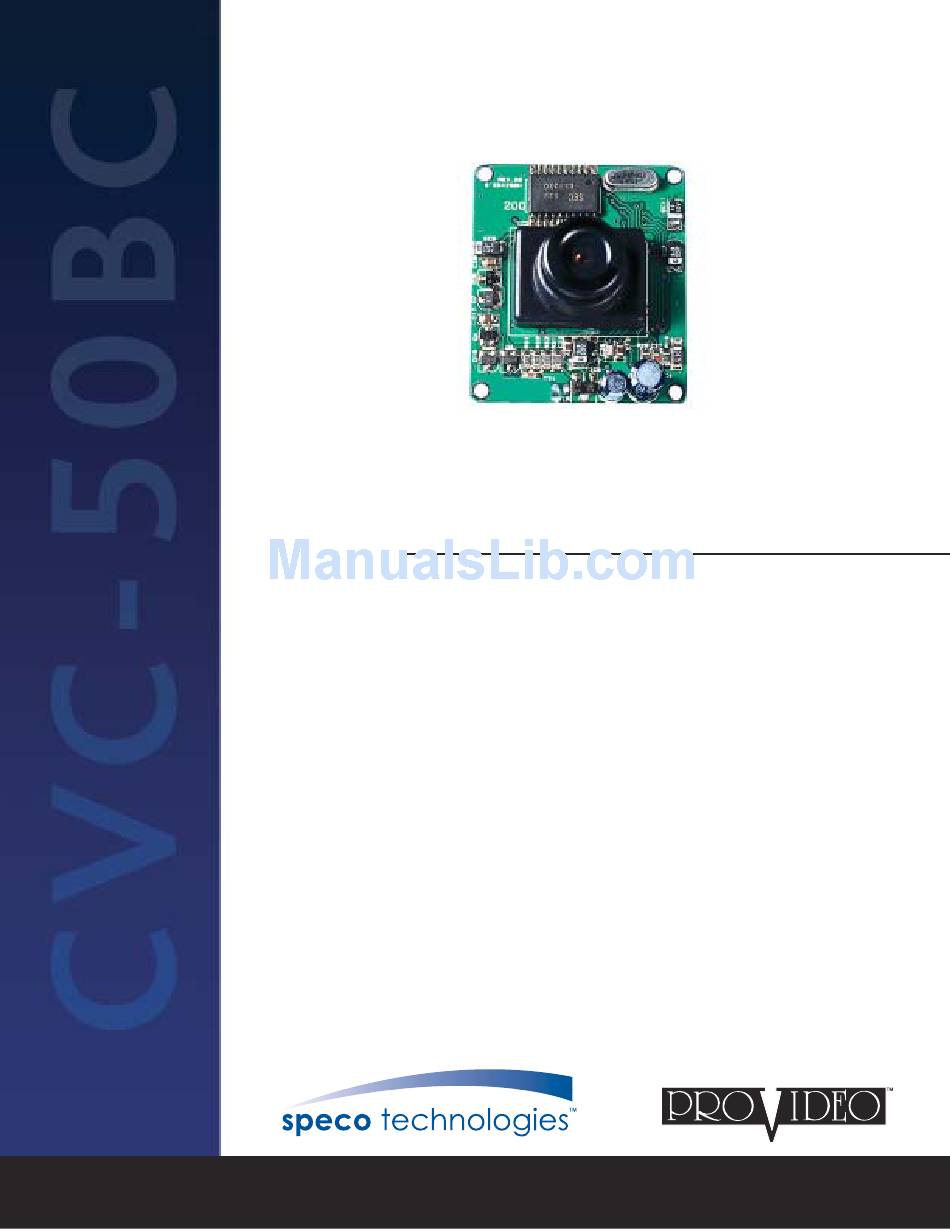

CVC-50BC
B/W Mini Board Camera
Our high performance 1/3" B/W CCD board camera has a 0.02 lux with 420 line
resolution. It features a 3.6mm wide angle lens with built-in electronic shutter.
A 12V DC power supply is required (not included).

Specifications

Resolution
Image Device
Minimum Illumination
Electonic Shutter
Lens Options
Number of Pixels
Operating Temperature
Humidity
Output
Scanning Frequency
Scanning System
Video Output Level
Video S/N Ratio
Power Consumption
Power Supply
Housing
Dimensions
Weight
For more information contact us at:
420 lines
1/3" B/W CCD image sensor
0.02 lux
1/60 - 1/100,000 second
2.5, 6, 8, 12mm
512 horizontal x 492 vertical
14º F to122º F
Within 95 % RH
Video - BNC, Power- DC jack
Horizontal 15.75 kHz vertical 60 Hz
EIA standard 525 line 60 fields/second
1.0 Vp-p 75 ohm
Greater than 46 dB
100 mA
Regulated 12V DC power supply
Optional PSW-2
Optional BCC01
1"L x 1.75"W x 1.5"H
1.8 oz
