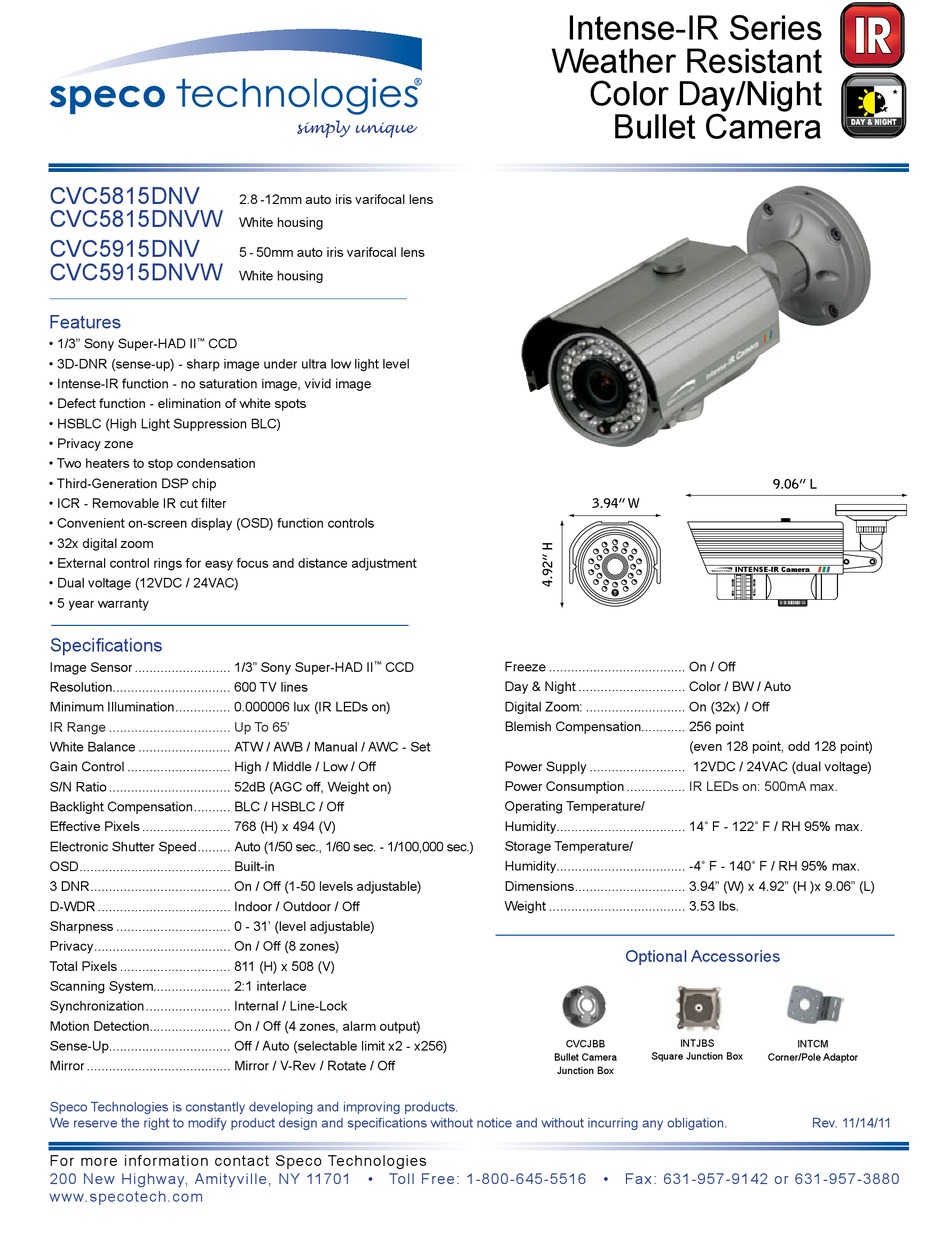

Speco CVC-5815DNV Specifications

Intense-ir series weather resistant color day/night bullet camera
Hide thumbs Also See for CVC-5815DNV:

Advertisement

CVC5815DNV
CVC5815DNVW
CVC5915DNV
CVC5915DNVW
Features
• 1/3" Sony Super-HAD II
CCD
• 3D-DNR (sense-up) - sharp image under ultra low light level
• Intense-IR function - no saturation image, vivid image
• Defect function - elimination of white spots
• HSBLC (High Light Suppression BLC)
• Privacy zone
• Two heaters to stop condensation
• Third-Generation DSP chip
• ICR - Removable IR cut filter
• Convenient on-screen display (OSD) function controls
• 32x digital zoom
• External control rings for easy focus and distance adjustment
• Dual voltage (12VDC / 24VAC)
• 5 year warranty

Specifications

Image Sensor .......................... 1/3" Sony Super-HAD II
Resolution................................ 600 TV lines
Minimum Illumination ............... 0.000006 lux (IR LEDs on)
IR Range ................................. Up To 65'
White Balance ......................... ATW / AWB / Manual / AWC - Set
Gain Control ............................ High / Middle / Low / Off
S/N Ratio ................................. 52dB (AGC off, Weight on)
Backlight Compensation .......... BLC / HSBLC / Off
Effective Pixels ........................ 768 (H) x 494 (V)
Electronic Shutter Speed ......... Auto (1/50 sec., 1/60 sec. - 1/100,000 sec.)
OSD ......................................... Built-in
3 DNR ...................................... On / Off (1-50 levels adjustable)
D-WDR .................................... Indoor / Outdoor / Off
Sharpness ............................... 0 - 31' (level adjustable)
Privacy ..................................... On / Off (8 zones)
Total Pixels .............................. 811 (H) x 508 (V)
Scanning System..................... 2:1 interlace
Synchronization ....................... Internal / Line-Lock
Motion Detection...................... On / Off (4 zones, alarm output)
Sense-Up................................. Off / Auto (selectable limit x2 - x256)
Mirror ....................................... Mirror / V-Rev / Rotate / Off
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
2.8 -12mm auto iris varifocal lens
White housing
5 - 50mm auto iris varifocal lens
White housing
CCD
Toll Free: 1-800-645-5516
Intense-IR Series
Weather Resistant
Color Day/Night

Bullet Camera

3.94" W
Freeze ..................................... On / Off
Day & Night ............................. Color / BW / Auto
Digital Zoom: ........................... On (32x) / Off
Blemish Compensation............ 256 point
Power Supply .......................... 12VDC / 24VAC (dual voltage)
Power Consumption ................
Operating Temperature/
Humidity................................... 14˚ F - 122˚ F / RH 95% max.
Storage Temperature/
Humidity................................... -4˚ F - 140˚ F / RH 95% max.
Dimensions .............................. 3.94" (W) x 4.92" (H )x 9.06" (L)
Weight ..................................... 3.53 lbs.
Optional Accessories
INTJBS
CVCJBB
Square Junction Box
Bullet Camera
Junction Box
Fax: 631-957-9142 or 631-957-3880
IR
MP
9.06" L
INTENSE-IR Camera
(even 128 point, odd 128 point)
IR LEDs on: 500mA max.
INTCM
Corner/Pole Adaptor
Rev. 11/14/11
