Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

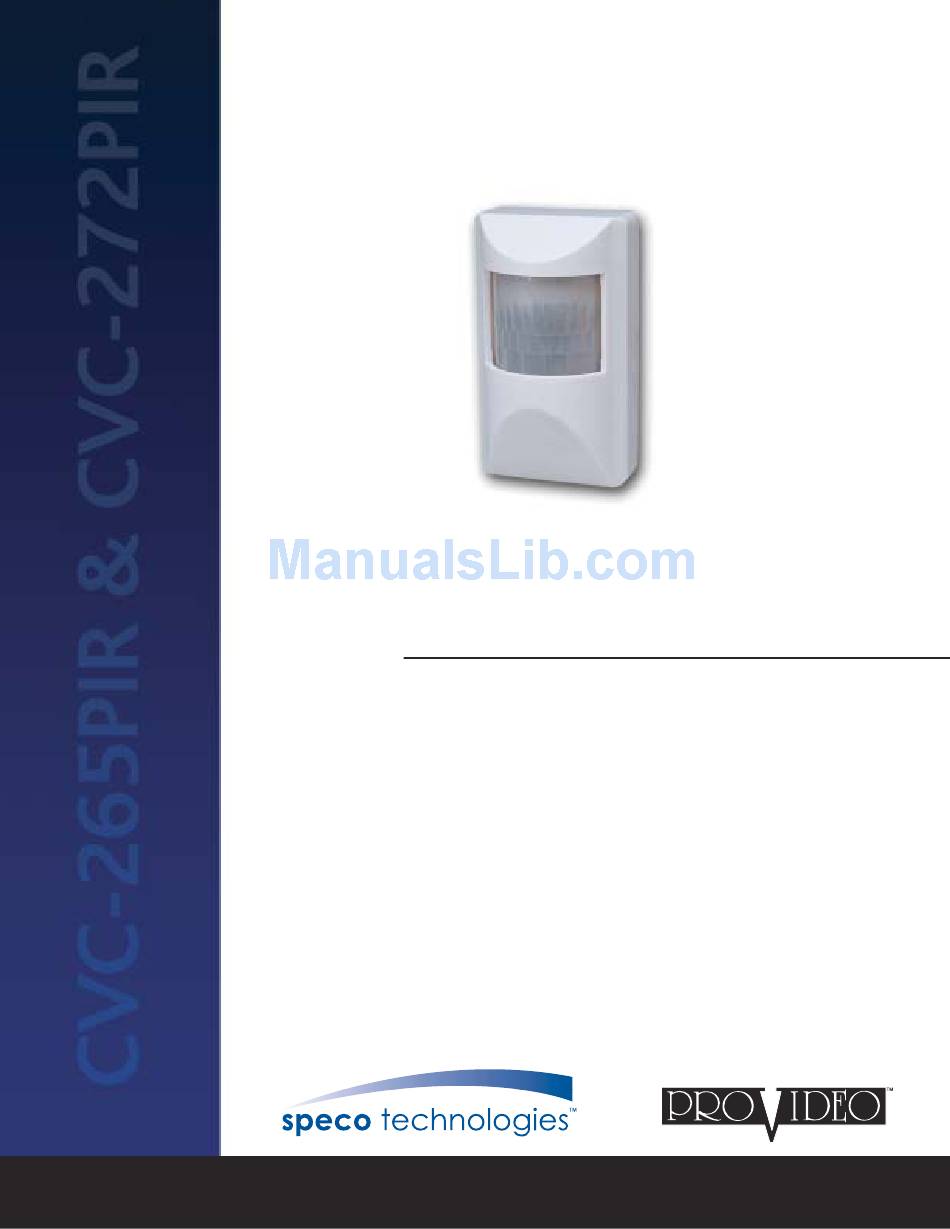

CVC-265PIR & CVC-272PIR
B/W Camera in Non-Operating and
Operating PIR Housing
Our 1/3" B/W CCD camera is encased in a white PIR housing. It has a .5 lux
sensitivity with 420 line resolution. It features a 3.6mm wide angle pinhole lens
and built-in electronic shutter. A 12V DC power supply is included. A color
version of this camera can be found under model number CVC-565PIR and
CVC-572PIR (with working PIR). A fully adjustable wall/ceiling mount is
included with this unit.
Specifications
CVC-265PIR
Resolution
420 lines
Minimum Illumination
.5 lux
Image Device
1/3" CCD image sensor
Electronic Shutter
Auto 1/60 - 1/100,000 seconds
Lens
3.6mm Hor. 74˚, Vert. 57˚
Operating Temperature
14º F to 122º F
Output
Video - BNC, power- DC jack
Power Consumption
120 ma
Scanning Frequency
Horizontal 15.75 kHz vertical 60 Hz
Video Output Level
1.0 Vp-p, 75 ohm
Video S/N Ratio
Greater than 46 dB
Housing
White ABS plastic
with mount
Power Supply
Regulated 12V DC power supply
included (UL and CSA listed)
Dimensions
2"L x 2.75"W x 4.75"H
For more information contact us at:
CVC-272PIR (with working PIR)
420 lines
.5 lux
1/3" CCD image sensor
Auto 1/60-1/100,000 seconds
3.6mm Hor. 74˚, Vert. 57˚
14˚F to 122˚F
Video - BNC, power- DC jack
130 ma
Horizontal 15.75 kHz vertical 60 Hz
1.0 Vp-p, 75 ohm
Greater than 46 dB
White ABS plastic with working
PIR and mount
Regulated 12V DC power supply
included (UL and CSA listed)
2"L x 2.75"W x 4.75"H
