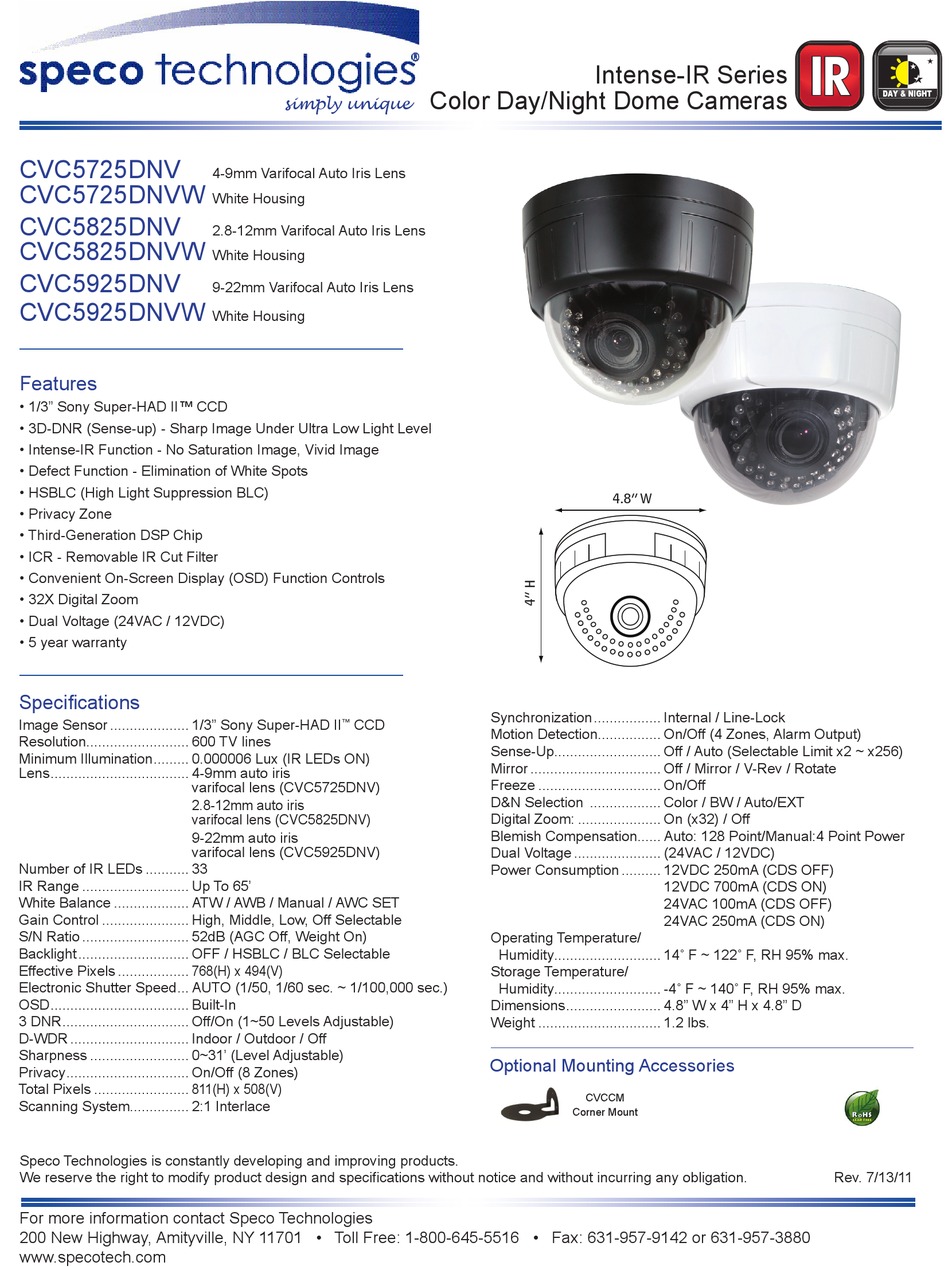

CVC5725DNV
CVC5725DNVW
CVC5825DNV
CVC5825DNVW
CVC5925DNV
CVC5925DNVW
Features
• 1/3" Sony Super-HAD II™ CCD
• 3D-DNR (Sense-up) - Sharp Image Under Ultra Low Light Level
• Intense-IR Function - No Saturation Image, Vivid Image
• Defect Function - Elimination of White Spots
• HSBLC (High Light Suppression BLC)
• Privacy Zone
• Third-Generation DSP Chip
• ICR - Removable IR Cut Filter
• Convenient On-Screen Display (OSD) Function Controls
• 32X Digital Zoom
• Dual Voltage (24VAC / 12VDC)
• 5 year warranty
Specifications
Image Sensor .................... 1/3" Sony Super-HAD II
Resolution.......................... 600 TV lines
Minimum Illumination ......... 0.000006 Lux (IR LEDs ON)
Lens ................................... 4-9mm auto iris
varifocal lens (CVC5725DNV)
2.8-12mm auto iris
varifocal lens (CVC5825DNV)
9-22mm auto iris
varifocal lens (CVC5925DNV)
Number of IR LEDs ........... 33
IR Range ........................... Up To 65'
White Balance ................... ATW / AWB / Manual / AWC SET
Gain Control ...................... High, Middle, Low, Off Selectable
S/N Ratio ........................... 52dB (AGC Off, Weight On)
Backlight ............................ OFF / HSBLC / BLC Selectable
Effective Pixels .................. 768(H) x 494(V)
Electronic Shutter Speed ... AUTO (1/50, 1/60 sec. ~ 1/100,000 sec.)
OSD ................................... Built-In
3 DNR ................................ Off/On (1~50 Levels Adjustable)
D-WDR .............................. Indoor / Outdoor / Off
Sharpness ......................... 0~31' (Level Adjustable)
Privacy ............................... On/Off (8 Zones)
Total Pixels ........................ 811(H) x 508(V)
Scanning System............... 2:1 Interlace
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701 • Toll Free: 1-800-645-5516 • Fax: 631-957-9142 or 631-957-3880
www.specotech.com
simply unique
4-9mm Varifocal Auto Iris Lens
White Housing
2.8-12mm Varifocal Auto Iris Lens
White Housing
9-22mm Varifocal Auto Iris Lens
White Housing
CCD
™
Intense-IR Series
Color Day/Night Dome Cameras
Synchronization ................. Internal / Line-Lock
Motion Detection................ On/Off (4 Zones, Alarm Output)
Sense-Up........................... Off / Auto (Selectable Limit x2 ~ x256)
Mirror ................................. Off / Mirror / V-Rev / Rotate
Freeze ............................... On/Off
D&N Selection .................. Color / BW / Auto/EXT
Digital Zoom: ..................... On (x32) / Off
Blemish Compensation...... Auto: 128 Point/Manual:4 Point Power
Dual Voltage ...................... (24VAC / 12VDC)
Power Consumption ..........
Operating Temperature/
Humidity........................... 14˚ F ~ 122˚ F, RH 95% max.
Storage Temperature/
Humidity........................... -4˚ F ~ 140˚ F, RH 95% max.
Dimensions ........................ 4.8" W x 4" H x 4.8" D
Weight ............................... 1.2 lbs.
Optional Mounting Accessories
CVCCM
Corner Mount
4.8" W
12VDC 250mA (CDS OFF)
12VDC 700mA (CDS ON)
24VAC 100mA (CDS OFF)
24VAC 250mA (CDS ON)
IR MP
Rev. 7/13/11
