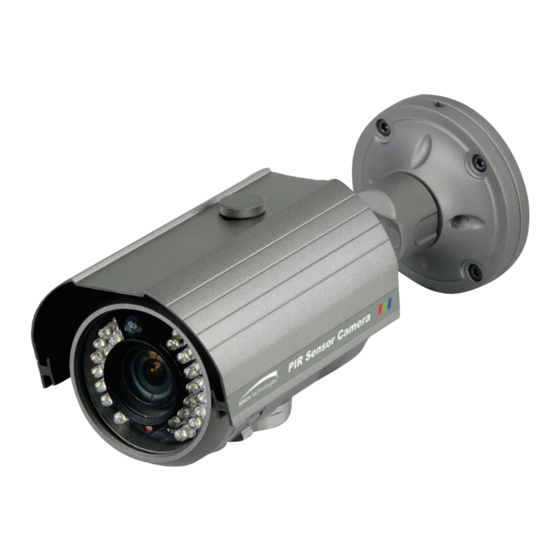

- Page 1 INSTRUCTION MANUAL PIR Sensor Camera CVC5100BPVF / CVC5100BPVFW CVC5200BPVF / CVC5200BPVFW...
-
Page 2: Table Of Contents
Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-8 ◑ ..........9, 10 ◑ Camera Dimension ........11 ◑ Features ............12 ◑ OSD Menu Details ........13- 25 ◑... - Page 3 Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly. camera. Be careful not to leave -10°C and +50°C. Be especially careful to provide fingerprints on the lens cover.
- Page 4 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
-
Page 5: Precautions For Use
Safety Instructions Precautions for use ◑ ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply rical shock ◑... -
Page 6: Package Contents
Package Contents Please make sure that the following items are included in the Package: 1) CVC5100BPVF, CVC5100BPVFW, CVC5200BPVF, CVC5200BPVFW • 1 Video Test Connector, Power Jack • 1 3Axis Bracket Round Base Adaptor • 2 Wrenches • Set Screw - 4 Tapping Screws 4x25 - 4 Hexagon Socket Screws M5x10... -
Page 8: Camera Installation
CAMERA INSTALLATION Compatibility 1) CVC5100BPVF, CVC5100BPVFW, CVC5200BPVF, CVC5200BPVFW CVCJBB INTJBS INTCM... - Page 9 CAMERA INSTALLATION 1. CVC5100BPVF, CVC5100BPVFW, CVC5200BPVF, CVC5200BPVFW WALL CAMER A ASSEMBLY 3AXIS BRACKET ROUND BASE ADAPTOR TAPPING SCREW 4X25, 4EA HEXAGON SOCKET SCREW M5X10, 4EA...
-
Page 10: Specifications
PIR Sensor Weatherproof Bullet Camera DC Auto Iris Varifocal Lens(2.8mm-12mm) ■ CVC5100BPVF ■ CVC5100BPVFW 600TV Lines DC Auto Iris Varifocal Lens(2.8mm-12mm) True Day / Night Capability ICR-IR Cut Filter Removable White LEDs * 6pcs IR LEDs * 24pcs SPECIFICATIONS CVC5100BPVF / CVC5100BPVFW MODEL Image Pick-Up Device 1/3”... - Page 11 PIR Sensor Weatherproof Bullet Camera DC Auto Iris Varifocal Lens (5mm-50mm) ■ CVC5200BPVF ■ CVC5200BPVFW 600TV Lines DC Auto Iris Varifocal Lens(5mm-50mm) True Day / Night Capability ICR-IR Cut Filter Removable White LEDs * 6pcs IR LEDs * 24pcs SPECIFICATIONS CVC5200BPVF / CVC5200BPVFW MODEL Image Pick-Up Device...
- Page 12 CAMERA INSTALLATION 1) CVC5100BPVF, CVC5100BPVFW, CVC5200BPVF, CVC5200BPVFW 11.22” 3.70” 5.90” 5.19” 10.55”...
- Page 13 - The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower illumination. - By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV lines for color and a horizontal resolution of 700TV lines for BW mode.
-
Page 14: Osd Control Button
OSD Control Button 1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control. 2. Type D is extra Option (wired Remote controller) ▲ Up button: Moves the cursor upwards. Use this button to select an item or adjust the parameters. -
Page 15: Menu Setup
Menu Setup ● 1. Press the Function Setup switch. - Main setup menu is displayed on the monitor screen. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.SSNR 5.BACKLIGHT 6.DNR3 7.DAY/NIGHT AUTO 8.SPECIAL 9.EXIT SAVE 2. Select a desired function using the Function Setup switch. - Place the cursor over a desired item. -
Page 16: Exposure Setting
- FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode. ☞ NOTE ■ If color rolling occurs when using a DC lens, set Shutter to Fixed (---). Exposure Setting ●... - Page 17 ◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but the higher the noise. * OFF : Deactivates the AGC function. * LOW : Allows automatic gain control from 5.3dB to 32dB. * HIGH : Allows automatic gain control from 5.3dB to 37dB. ◆...
-
Page 18: Ssnr Setting
※ Select one of the following 5 modes, as appropriate for your purpose. ◆ ATW : Select this when the color temperature is between 1,700˚K and 11,000˚K. ◆ OUTDOOR : Select this when the color temperature is between 1,700˚K and 11,000˚K. (sodium light inclusion) ◆... -
Page 19: Backlight Setting
Backlight Setting ● Unlike conventional cameras, the CVC5100BPVF and CVC5200BPVF are designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by using the features of the proprietary W-V DSP chip. 1. When the SETUP menu screen is displayed, select 'BACKLIGHT' by using the Function Setup switch so that the arrow indicates 'BACKLIGHT'. -
Page 20: Dnr3 Setting
BLC SETUP HLC SETUP LEVEL LEVEL MIDDLE LIMITS NIGHT ONLY BOTTOM MASK COLOR BLACK LEFT MASK TONE RIGHT BOTTOM Press Set to Return LEFT RIGHT Press Set to Return ☞ NOTE ■ Because there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance. - Page 21 3. Set the DNR3 mode to 'ON' and press the Function Setup switch. Then you can adjust the noise reduction level. ☞ NOTE ■ You cannot set the DNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’. ■...
-
Page 22: Special Setting
◆ AUTO : The mode is switched to 'Color' in a normal environment, but switches to 'B/W' mode when ambient illumination is low. To set up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W mode. - Page 23 2. Select a desired mode using the Function Setup switch. SPECIAL 1.IMAGE ADJ 2.CAM TITLE 3.SYNC 4.MOTION DET 5.PRIVACY 6.DIS 7.COMM ADJ 8.LANGUAGE ENGLISH 9.RETURN ◆ IMAGE ADJ. : 1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
- Page 24 ☞ NOTE ■ ■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ◆ CAM TITLE : If you enter a title, the title will appear on the monitor. 1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates 'CAM TITLE'.
- Page 25 ☞ NOTE ■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization. ■ ◆ MOTION DET :This product has a feature MOTION DET that allows you to observe movement of 1.SENSITIVITY AREA1 objects in 8 different areas on the screen, 2.AREA MODE and the words 'MOTION DETECTED' appear 3.SEL POS...
-
Page 26: Exit Setting
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'. 2) Set up the mode using the Function Setup switch. - AREA : You can select up to 12 PRIVACY areas. - MODE : Determines whether to use the area selected in the AREA. -
Page 27: Trouble Shooting
Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞Adjust the monitor controls, as required. - Page 29 ▶ MEMO...
- Page 30 ▶ MEMO...
- Page 31 ▶ MEMO...
- Page 32 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
