Speco CVC-550EX Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
CVC-550EX
Color Weatherproof Camera with Super-HAD*
Technology and 5-50mm Auto Iris Varifocal lens
Cable located
through the mount.

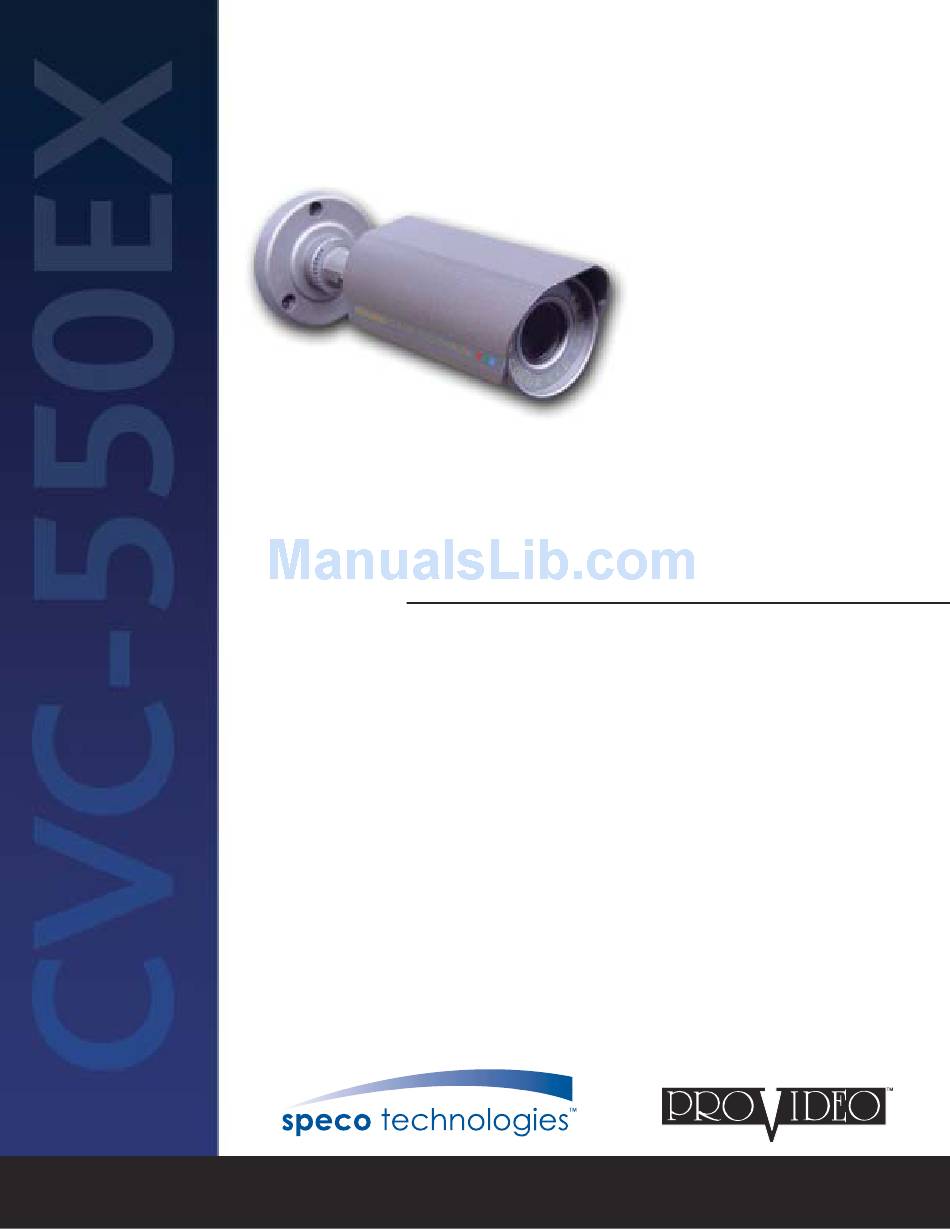

Speco Technologies' CVC-550EX is a weatherproof color bullet camera that features an
auto iris varifocal lens and Super-HAD* technology. This camera boasts an ultra-high
resolution picture, an adjustable varifocal lens and extreme low light sensitivity. With
a steel grey weatherproof housing, this camera is suitable for indoor and outdoor
applications. The mounting bracket protects the cable and is conduit compatible.

Specifications

Resolution
Minimum Illumination
Image Device
Lens
Electronic Shutter
Operating Temperature
Video S/N Ratio
Video Output
Power Requirements
Dimensions
Weight
Power Consumption
*Super-HAD is a trademark of Sony Corporation
For more information contact us at:
• Auto Iris 5-50mm varifocal lens
• Built-in heaters
• Turbo AGC
• Built-in back light compensation
• Pre-set auto exposure settings
• Non-condensing coated glass
480 line
0.03 lux
1/3" Super-HAD* CCD
DC Auto Iris varifocal lens (5mm-50mm)
1/60 - 1/100,000 seconds
-14 degrees F to 122 degrees F
Greater than 50 dB
1.0 Vp-p 75 ohm
Dual Voltage 24V AC/12v DC
11"L x 2.9"W x 2.7"H
2.6 lbs.
24 Volts AC-15 VA, 12 Volts DC-1 amp
