3-5. Battery charger Usage
Optional
①

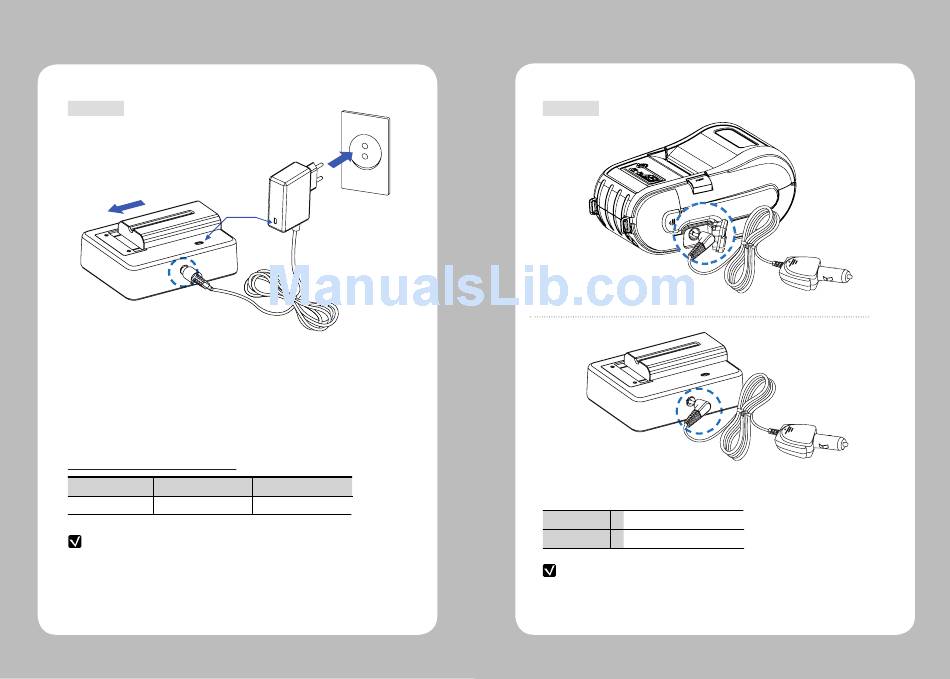

1. Please press the battery into the holder until you can hear a snapping sound.
2. Insert DC JACK ① into the end completely as the direct shown above.
3. Plug the power code to electrical outlet.
4. While charging the battery, red light turns on.
Once the charge is completed, green light turns on.
Check the state of code connection when error occurs blinking on red light.
3-5-1 The status of lamp in charging
Status
charging
Charging Lamp
Red
NOTE
In the case the battery is not fixed properly in the holder, the red lamp will be blinking,
Then, extract and reinsert the battery.
8
②
LED
charging complete
Green
3-6 Usage of Cigar Jack Charger for charging
Optional
Printer
Battery holder
Connect the car cigar JACK charger into the printer or battery holder.
Input
12 ~ 24V
Output
8.4V 0.8 ~ 1.2A
NOTE
Use the Cigar Jack offered by the manufacturer
.
