3. Setting Up the Product

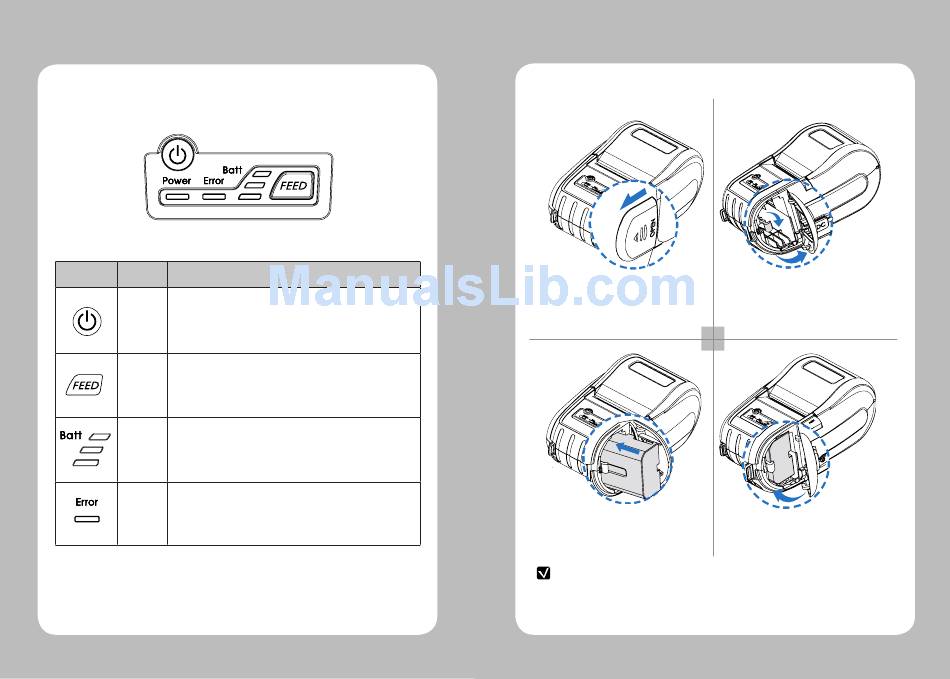

3-1. Control Panel Usage

Button Name
This button is used to turn the printer on and off.
Power
When the printer is off, press this button for approximately
button 2 seconds and it will turn on the power. When you press this button
in a state that the printer is on, the printer will turn off.
Paper output can be done manually by pressing this button.
Paper
Additionally, self-testing and Hexadecimal Dumping can be processed..
Feed
1. Refer to "3-10" for self test information.
Button
2. Refer to the service manual regarding Hexadecimal Dumping.
1. If the Batt, LED are Lit, the battery is fully charged.
Battery
2. If you can hear beeping sound and LED light is turned off, it means
Status
that the battery is at the lowest level.
Lamp
3. If the battery is not charged at all, the printer turns off automatically.
Error
If the red light is turned on, it means that the paper cover is open.
Lamp
4
function
3-2. Installing battery
Push the Open to the direction as Open the battery cover and push up
pointed by arrow in the image. the hook to the direction as above.
1 2
3
Insert the battery inside printer as
shown.
NOTE
As the battery is not charged at the time of your purchase, charge the battery
prior to using the product.
(Use the battery charger and/or the optional battery holder.)
Close the battery cover once you
inserted the battery completely.
