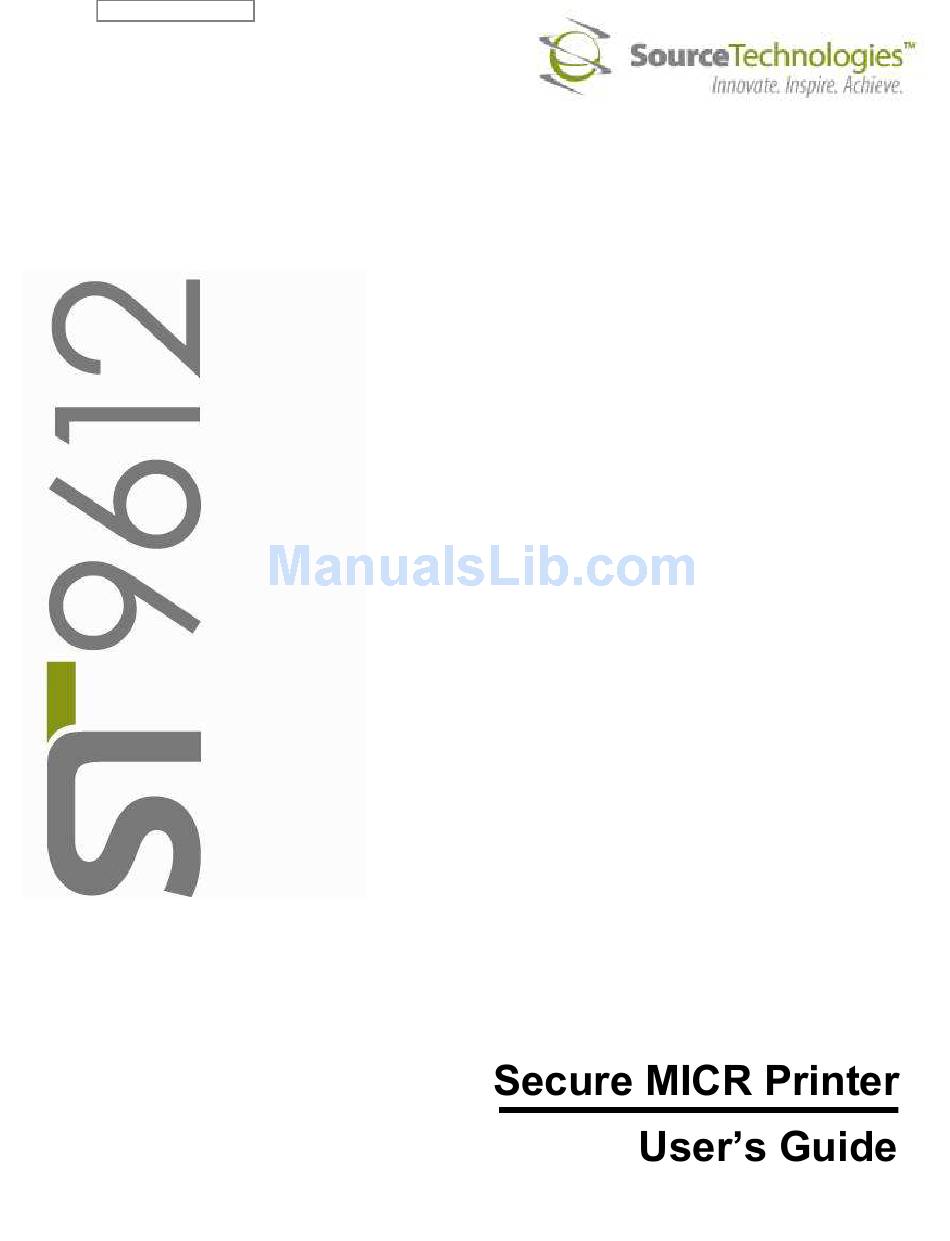

Source Technologies ST9612 User Manual

Secure micr printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST9612 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Source Technologies ST9612

Summary of Contents for Source Technologies ST9612

  • Page 2 Copyright...
  • Page 3 Table of Contents...
  • Page 5 Printer and Driver Installation | 1 Note: To access Source Technologies’ secure fonts loaded on the printer, such as the E13B MICR font, download the universal driver as described in the next section. The printer drivers on this CD may be used for general office printing but do not facilitate using secure fonts.
  • Page 6 Printer and Driver Installation | 1 Select Download Unzip Browse select select select Note: The fonts illustrated above may not match the size or appearance of those printed by the MICR printer. The characters are enhanced for illustration purposes only.
  • Page 7 Printer and Driver Installation | 1 Browse Click select browse browse double- click Universal_Driver_2KXP03_x86.zip Note: The remainder of the instructions applies to Windows XP. The exact steps may vary depending on the particular operating system you are using. Double-click Browse extract...
  • Page 8 Printer and Driver Installation | 1 Note: Do not connect the printer at this time. double-click Note: The name of the driver’s .exe program will vary depending on the operating system being used. There will only be one executable file included with the driver.
  • Page 9 Printer and Driver Installation | 1 click...
  • Page 10 Printer and Driver Installation | 1 Click Power on Select...
  • Page 11 Printer and Driver Installation | 1 Select Click Click Click Scroll select...
  • Page 12 Printer and Driver Installation | 1 Click Click...
  • Page 13 Printer and Driver Installation | 1 Select Browse select Select Select click Select select...
  • Page 14 Printer and Driver Installation | 1 Click select right-click select type Click Click select...
  • Page 15 Printer and Driver Installation | 1 Select Select Select select Select Select select Select choose select Select select...
  • Page 16 Printer and Driver Installation | 1 Choose select Select Select select Choose select...
  • Page 17 Printer and Driver Installation | 1 Enter Select choose select enter choose choose Click Select browsing right- clicking click Select Select Select choose...
  • Page 18 Printer and Driver Installation | 1...
  • Page 19 Printer and Driver Installation | 1...
  • Page 20 MICR Overview | 2 2. MICR Overview The Check Clearing System MICR Printing Standards in the United States Today...
  • Page 21 MICR Overview | 2...
  • Page 22 MICR Check Design | 3...
  • Page 23 MICR Check Design | 3 Note: The Source Technologies’ Secure Numeric Font (see Appendix B) should not be used in the convenience amount since it is not a machine readable font.
  • Page 24 MICR Check Design | 3...
  • Page 25 MICR Check Design | 3...
  • Page 26 MICR Check Design | 3...
  • Page 28 Quality Issues | 4 Security Issues...
  • Page 29 5. Security Issues Artificial Watermarks Laid Lines Fuse Enhancing Additive Chemical Additives Numbered Check Stock...
  • Page 30 Security Issues | 5 Note: These features serve as a general guide for check security. You should not consider these features as an all inclusive list. We recommend consulting with your paper supplier for any additional comments or suggestions.
  • Page 31 MICR Features | 6 6. MICR Features Secure MICR MICR Fonts Secure Fonts...
  • Page 32 MICR Features | 6 MicroPrint Resource Storage MICR Toner Cartridge...
  • Page 33 MICR Commands | 7 PJL Unlock Sequence <ESC>%-12345X@PJL LDECLARE LRESOURCE:”flash:” LRWLOCK=”PASSWORD” (0D)(0A)@PJL ENTER LANGUAGE=PCL(0A) PJL Re-Lock Sequence <ESC>%-12345X@PJL LDELETEPASSWORD LRESOURCE:”flash:”(0D)(0A) <ESC>%-12345X PJL Re-Lock Sequence With A New Password Value <ESC>%-12345X@PJL DEFAULT LRESOURCE:”flash:” LRWLOCK=”xxxxxxxx” (0D)(0A)<ESC>%-12345X (UEL)(PJL COMMAND)(0A)(PJL COMMAND)(0A)(PJL COMMAND)(0A)(UEL or ENTER LANGUAGE) PCL Font Call Commands...
  • Page 34 MICR Commands | 7 E13B MICR FONT <ESC>(10O<ESC>(s0p8h8v0s7b360T The Selection String <ESC>(30802X The ID Call SECURE NUMERIC <ESC>(16C<ESC>(s0p5h36v0s112T The Selection String <ESC>(30043X The ID Call ICR SECURE <ESC>(1O<ESC>(s1p12v0s0b110T The Selection String <ESC>(30066X The ID Call CMC7 MICR FONT <ESC>14Y<ESC>(s0p8h8v0s0b361T The Selection String <ESC>(30803X The ID Call MicroPrint...
  • Page 35 MICR Commands | 7 PJL INFO MICR COMMAND <ESC>%-12345X @PJL INFO MICR INFO MICR Command <ESC>%-12345X @PJL INFO MICR PRINTER STATE = READY = BUSY = NOT READY SERIAL NUMBER = XXXXXXXX PAGECOUNT = 123456 CARTRIDGE TYPE = NORMAL = MICR CARTRIDGE STATUS = UNKNOWN = OK...
  • Page 36 MICR Commands | 7...
  • Page 37 MICR Commands | 7 Toner Cartridge and Photoconductor Units Toner Low...
  • Page 38 MICR Commands | 7 Toner Out Photoconductor Unit Life Warning...
  • Page 39 MICR Commands | 7 Replace Photoconductor (printer hard stop) Load MICR Toner...
  • Page 40 MICR Command Example | 8 PJL Re-Lock Sequence FIGURE 8.1 SAMPLE ACCOUNTS PAYABLE CHECK...
  • Page 41 MICR Commands | 7 PJL and PCL commands used to print the sample check:...
  • Page 42 Appendix B Appendix B: Secure Numeric Font Mapping Description Alpha/Numeric Hex Value Secure Font Character Character...
  • Page 43 Appendix B Appendix B continued: Secure Numeric Font Mapping Description Alpha/Numeric Hex Value Secure Font Character Character Note: The secure fonts in the example are magnified for purposes of clarity.
  • Page 44 Appendix D Note: The CMC7 Font in the example above is magnified for purposes of clarity.
  • Page 45 Appendix E Appendix E: Contact...
  • Page 46 Appendix F: Photoconductor Replacement...
