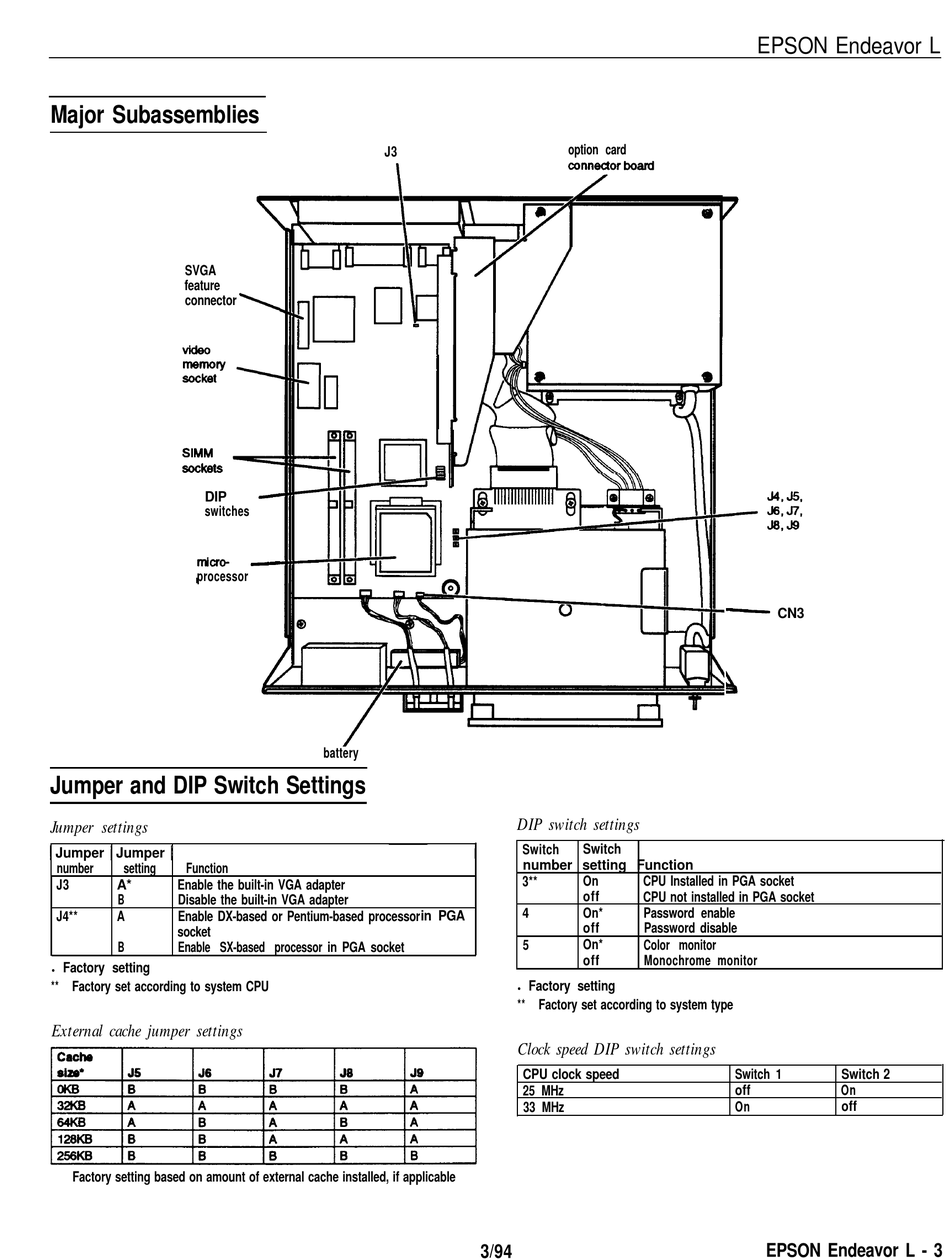

Major Subassemblies

SVGA
feature
connector \
DIP
switches
processor

Jumper and DIP Switch Settings

Jumper settings
number
setting
Function
J3
A*
Enable the built-in VGA adapter
B
Disable the built-in VGA adapter
A
Enable DX-based or Pentium-based processor in PGA
J4**
socket
Enable SX-based processor in PGA socket
B
Factory setting
l
** Factory set according to system CPU
External cache jumper settings
Factory setting based on amount of external cache installed, if applicable
J3
battery
I
3/94
option card
DIP switch settings
Switch
Switch
number setting Function
On
CPU Installed in PGA socket
3**
off
CPU not installed in PGA socket
4
On*
Password enable
off
Password disable
5
On*
Color monitor
off
Monochrome monitor
Factory setting
l
** Factory set according to system type
Clock speed DIP switch settings
CPU clock speed
25 MHz
33 MHz
EPSON Endeavor L
Switch 1
Switch 2
On
off
off
On
EPSON Endeavor L - 3
