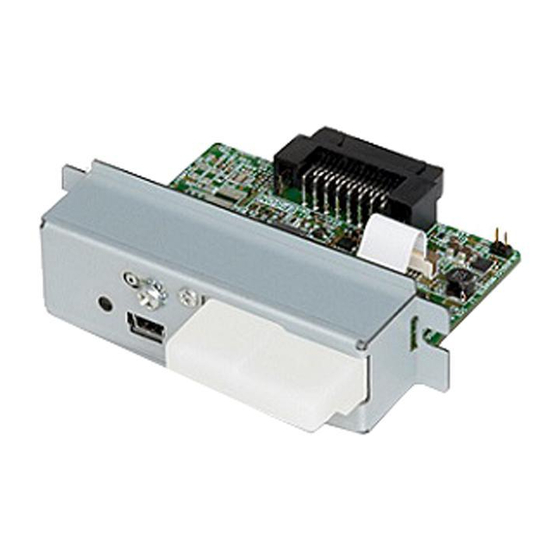

The UB-R04 is an interface board on which is installed an IEEE 802.11a/b/g/n Radio Frequency (RF)
module for Epson TM printers.
This manual provides instructions, including a simple setup for operators of POS printers on which the
UB-R04 is installed so that the operators can use the UB-R04 safely and correctly.

RF Module

This equipment contains the following wireless module.
Manufacturer:
Type of equipment: WLAN complete modeule
Model number:

Features and Functions

❏ 64/128-bit WEP, WPA™, WPA2™
❏ Protocols: TCP, UDP, ICMP, IP, LP/LPR (for APD), TCP socket port (for OPOS)
❏ OPOS, APD enabled

Part Names

About the Symbol on Epson Products
On Epson products, the following symbol is used in order to ensure safety and proper use of the product,
and to prevent danger to users and other persons as well as property damage.
The symbol indicates the meanings listed below. Be sure that you completely understand the meaning of
the symbol on this product before using it.
Printed in China
SMK Corporation
VRL4149-0601F
Mini USB connector (for wireless LAN setting)
USB

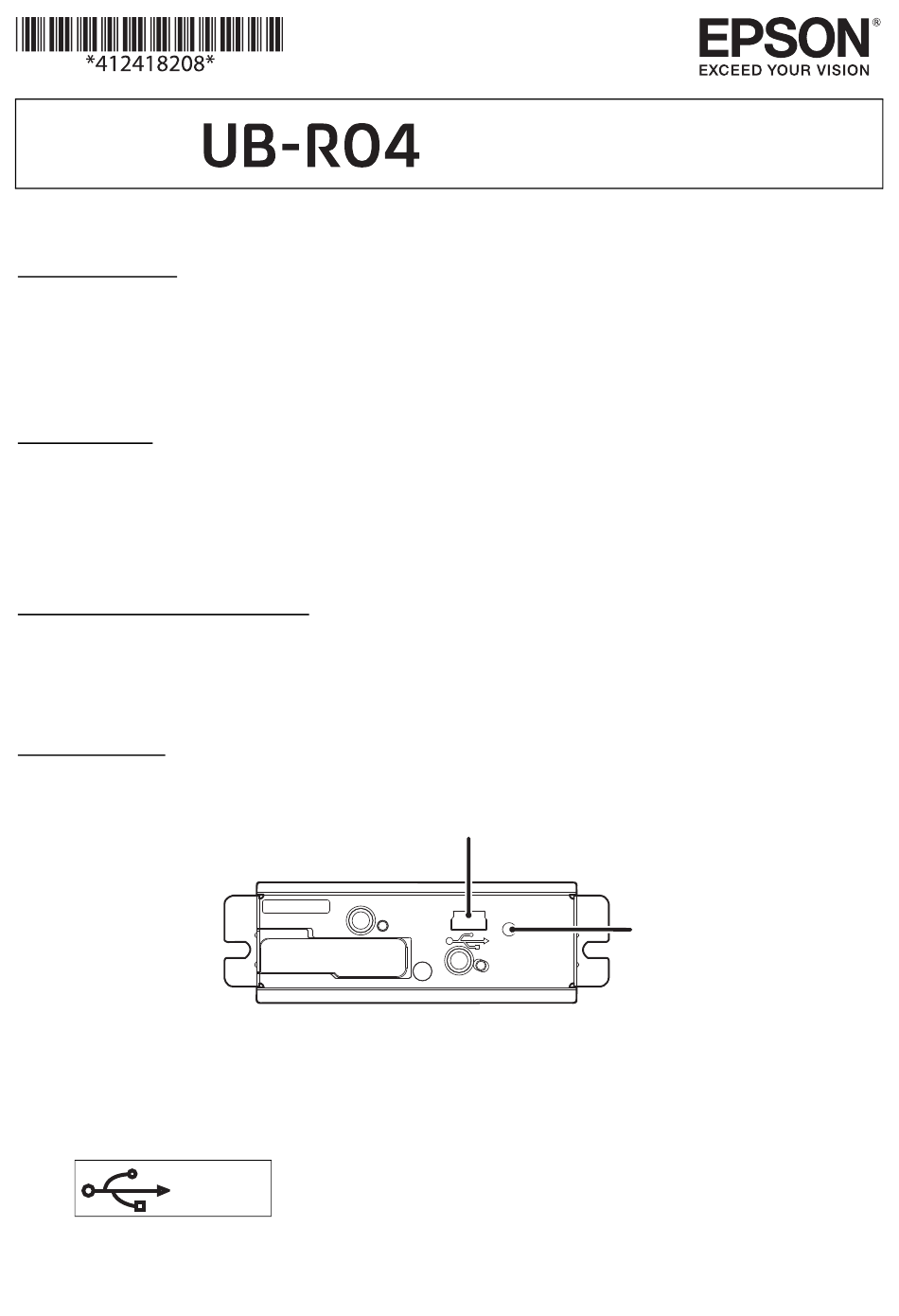

User's Manual
© Seiko Epson Corporation 2012-2017
1
Printed in China
Push button
