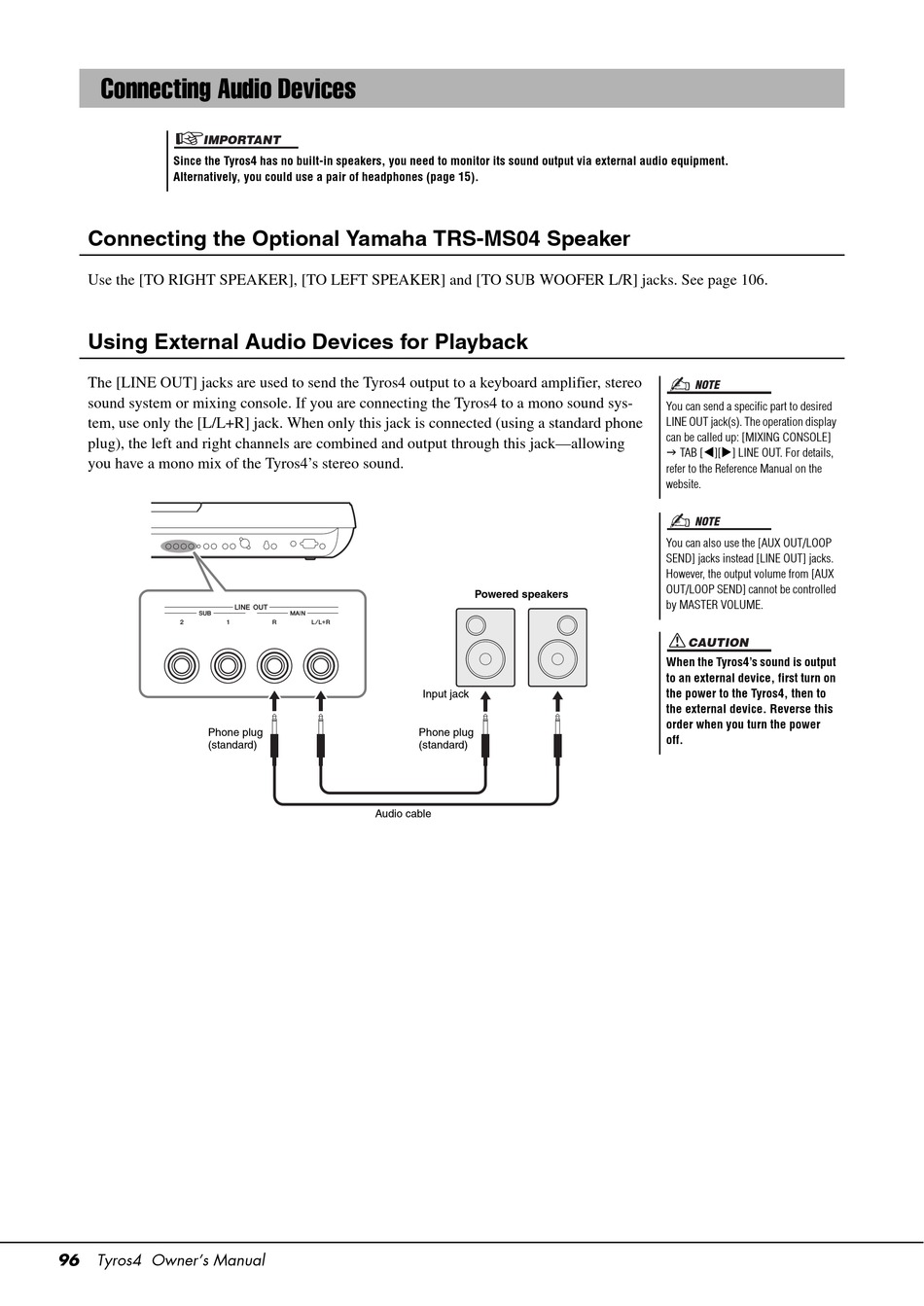

Connecting Audio Devices

IMPORTANT
Since the Tyros4 has no built-in speakers, you need to monitor its sound output via external audio equipment.
Alternatively, you could use a pair of headphones (page 15).
Connecting the Optional Yamaha TRS-MS04 Speaker
Use the [TO RIGHT SPEAKER], [TO LEFT SPEAKER] and [TO SUB WOOFER L/R] jacks. See page 106.
Using External Audio Devices for Playback
The [LINE OUT] jacks are used to send the Tyros4 output to a keyboard amplifier, stereo
sound system or mixing console. If you are connecting the Tyros4 to a mono sound sys-
tem, use only the [L/L+R] jack. When only this jack is connected (using a standard phone
plug), the left and right channels are combined and output through this jack—allowing
you have a mono mix of the Tyros4's stereo sound.
Phone plug
(standard)
96
Tyros4 Owner's Manual
Powered speakers
Input jack
Phone plug
(standard)
Audio cable
NOTE
You can send a specific part to desired
LINE OUT jack(s). The operation display
can be called up: [MIXING CONSOLE]
 TAB [][] LINE OUT. For details,
refer to the Reference Manual on the
website.
NOTE
You can also use the [AUX OUT/LOOP
SEND] jacks instead [LINE OUT] jacks.
However, the output volume from [AUX
OUT/LOOP SEND] cannot be controlled
by MASTER VOLUME.
CAUTION
When the Tyros4's sound is output
to an external device, first turn on
the power to the Tyros4, then to
the external device. Reverse this
order when you turn the power
off.
