Table of Contents

AINTENANCE

The media filter MUST be replaced periodically. The

reason is to maintain appliance operating efficiency

by minimizing pressure drop through the HVAC

system. The frequency of filter media replacement

depends on the operational environment. The need

for replacement is easily determined by a visual

inspection. Note: For optimum performance, replace

the media filter every 6 to 12 months.

EDIA

ILTER

EPLACEMENT

1. Turn off electrical power to the HVAC system.

2. Remove the filter cabinet access panel.

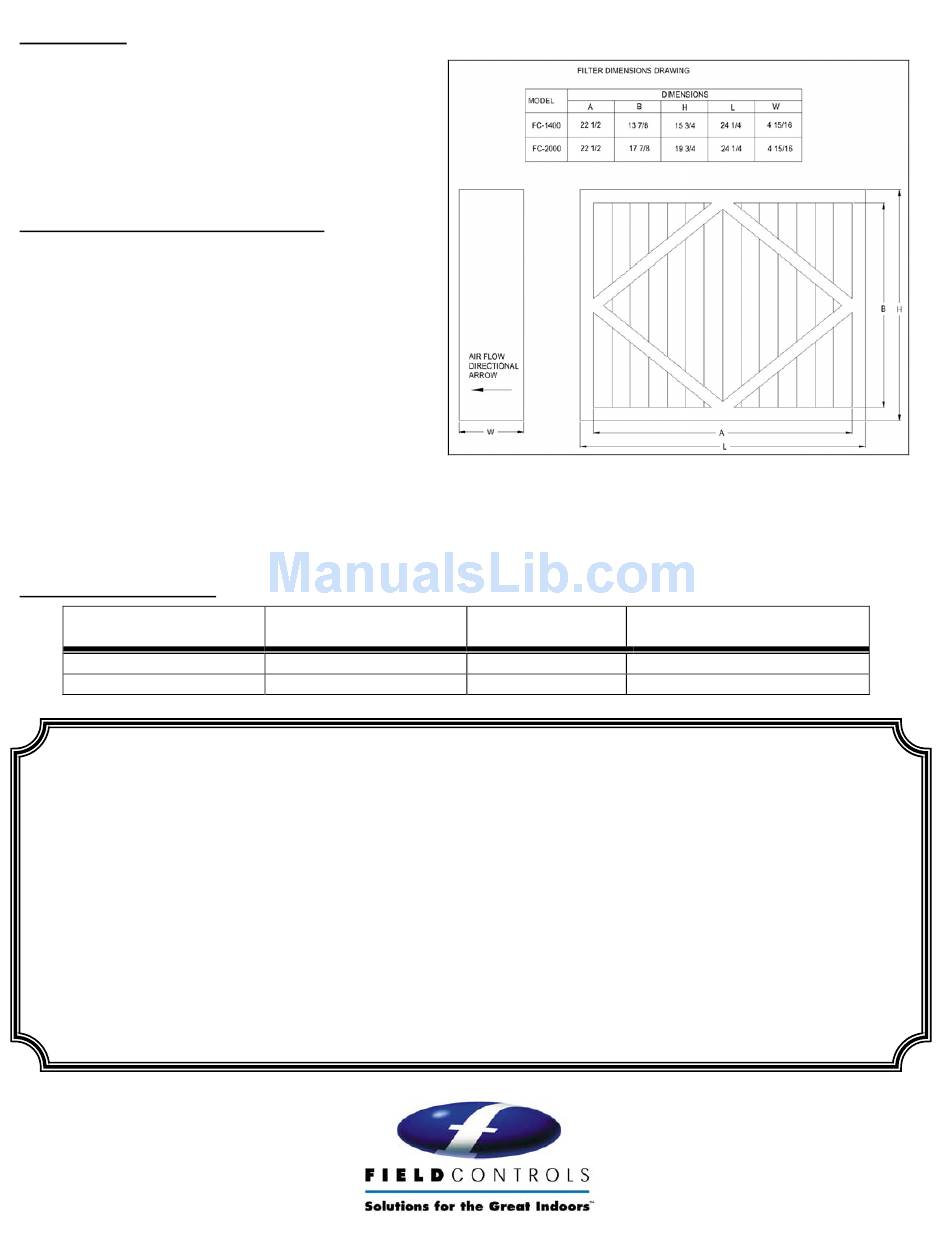

Note: "AIR FLOW" directional arrow, located on

existing media filter (Figure 6).

3. Remove the existing filter media.

4. Remove the new media filter from the plastic bag.

Tip: Re-use plastic bag to discard the used

media filter.

5. Check media filter directional arrow

directional arrow MUST point in the direction of

air flow.

Tip: Write the installation date on media filter

next to directional arrow for future filter

replacement reference.

6. Install the new media filter.

7. Install the filter cabinet access panel.

8. Turn on electrical power to the HVAC system.

EPLACEMENT

ARTS

IST

Air cleaner Model

FC - 1400

FC - 2000

Field Controls, L.L.C. warrants that the following Field Controls, L.L.C. products sold hereunder, shall be free from defects in material and workmanship

under normal use for eighteen (18) months from date of manufacturing by the consumer excepting the provisions numbered below.

Provisions:

Field Controls shall have no obligation in the event the customer is unable to provide receipt showing the date the customer purchased the

product(s) or accurate date code information.

The product must be properly installed, maintained and operated under normal conditions.

Field Controls shall not be liable for any consequential and incidental damages, resulting from failure of a Field Controls, L.L.C. product, failure to

deliver, delay in delivery, delivery in nonconforming condition, or for any breech of contract or duty between Field Controls, L.L.C. and the

customer.

Field Controls, L.L.C. products are often intended for use in specific applications. Field Controls, L.L.C. makes no warranty if a Field Controls,

L.L.C. product is used in applications other than intended.

Field Controls, L.L.C. makes no warranty of any kind in regard to any other manufacturer's products distributed by Field Controls, L.L.C. Field

Controls, L.L.C. will pass on all warranties made by the manufacturer and where possible, will expedite the claim on behalf of the customer, but

ultimately, responsibility for disposition of the warranty claim lies with the manufacturer.

ROCEDURE

(→)

! The

Replacement filter size

16 x 25 x 5
