Models: FC8-1400, FC11-1400, FC8-2000, FC11-2000
GENERAL SYSTEM INFORMATION
Field Controls high efficiency series of media air cleaners are designed for installation into heating, ventilation,
air conditioning (HVAC) systems to reduce the amount of airborne particulate (1.0 micron and larger) including
pollen, dust and dander promoting better indoor air quality. The media air cleaner should be installed in
the return air system duct, such that all of the circulated air passes through the filter. For maximum filtering
performance, the air circulation fan should operate continuously.
Model
Nominal filter size
Air flow range
MERV rating
Filter Replacement P/N
Cabinet dimensions
Cabinet opening
dimensions
UL filter media listing
NOTE: FOR OPTIMUM PERFORMANCE, REPLACE THE MEDIA FILTER EVERY 6 TO 12 MONTHS.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualified agency in accordance with the manufacturer's installation instructions. The definition of
a qualified agency is: any individual, firm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:

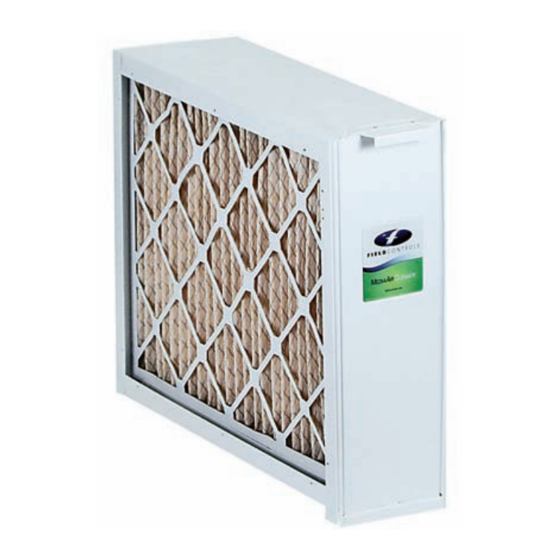

MEDIA AIR CLEANER
FC8 - 1400
16" x 25" x 5"
600–1400 CFM
8
46585900
16-
⁄
" x 24-
⁄
" x 7-
⁄
" 16-
1
7
1
4
8
8
13-
⁄
" x 22-
⁄
"
7
1
8
2
Class 2
Please retain these instructions after installation.
www.fieldcontrols.com
ITEMS INCLUDED IN KIT:
1- Cabinet
1- Media Filter
1- Installation Instruction
Manual
FC11 - 1400
16" x 25" x 5"
600–1400 CFM
11
46568500
⁄
" x 24-
⁄
" x 7-
⁄
"
20-
1
7
1
4
8
8
13-
⁄
" x 22-
⁄
"
7
1
8
2
Class 2
Phone:
FC8 - 2000
20" X 25" X 5"
600–2000 CFM
8
46586000
⁄
" x 24-
⁄
" x 7-
⁄
"
20-
1
7
1
4
8
8
17-
⁄
" x 22-
⁄
"
7
1
8
2
Class 2
Installation Date:
FC11 - 2000
20" x 25" x 5"
600–2000 CFM
11
46568600
⁄
" x 24-
⁄
" x 7-
⁄
"
1
7
1
4
8
8
17-
⁄
" x 22-
⁄
"
7
1
8
2
Class 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Field Controls FC8-1400
Summary of Contents for Field Controls FC8-1400
- Page 1 Manual GENERAL SYSTEM INFORMATION Field Controls high efficiency series of media air cleaners are designed for installation into heating, ventilation, air conditioning (HVAC) systems to reduce the amount of airborne particulate (1.0 micron and larger) including pollen, dust and dander promoting better indoor air quality. The media air cleaner should be installed in the return air system duct, such that all of the circulated air passes through the filter.
-
Page 2: Mounting Options
MOUNTING OPTIONS Figure 1 Figure 2 page 2... - Page 3 Figure 3 Figure 4 Figure 5 page 3...
- Page 4 CAUTION Before installing a media filter into the HVAC system, the Qualified Agency must consider the additional pressure drop being added to the HVAC system. 1. The filter must be installed on the return side of the HVAC system, between the return air duct and the intake of the system blower.
-
Page 5: Installation
INSTALLATION WARNING: Always shut off the electrical power supply before working on the appliance. 1. Refer to the typical mounting positions (Figures 1 to 5) for proper placement of the filter cabinet. 2. Remove the metal filter cabinet from the carton and plastic bag. 3. -
Page 6: Maintenance
MAINTENANCE The media filter MUST be replaced periodically. The reason is to maintain appliance operating efficiency by minimizing pressure drop through the HVAC system. The frequency of filter media replacement depends on the operational environment. The need for replacement is easily determined by a visual inspection. NOTE: For optimum performance, replace the media filter every 6 to 12 months. -
Page 7: Replacement Parts List
MEDIA FILTER REPLACEMENT PROCEDURE 1. Turn off electrical power to the HVAC system. 2. Remove the filter cabinet access panel. NOTE: “AIR FLOW” directional arrow, located on existing media filter (Figure 7). 3. Remove the existing filter media. 4. Remove the new media filter from the plastic bag. TIP: Re-use plastic bag to discard the used media filter. 5. -
Page 8: Limited Warranty
Field Controls Direct Vent Systems (FDVS), Field Oil Vent Kits (FOVP), and ComboVents (CV). Field Controls warrants that the products listed below shall be free from defects in material and workmanship under normal use for the limited period indicated, from the date of purchase by the consumer, subject to the provisions 1-8 below.
