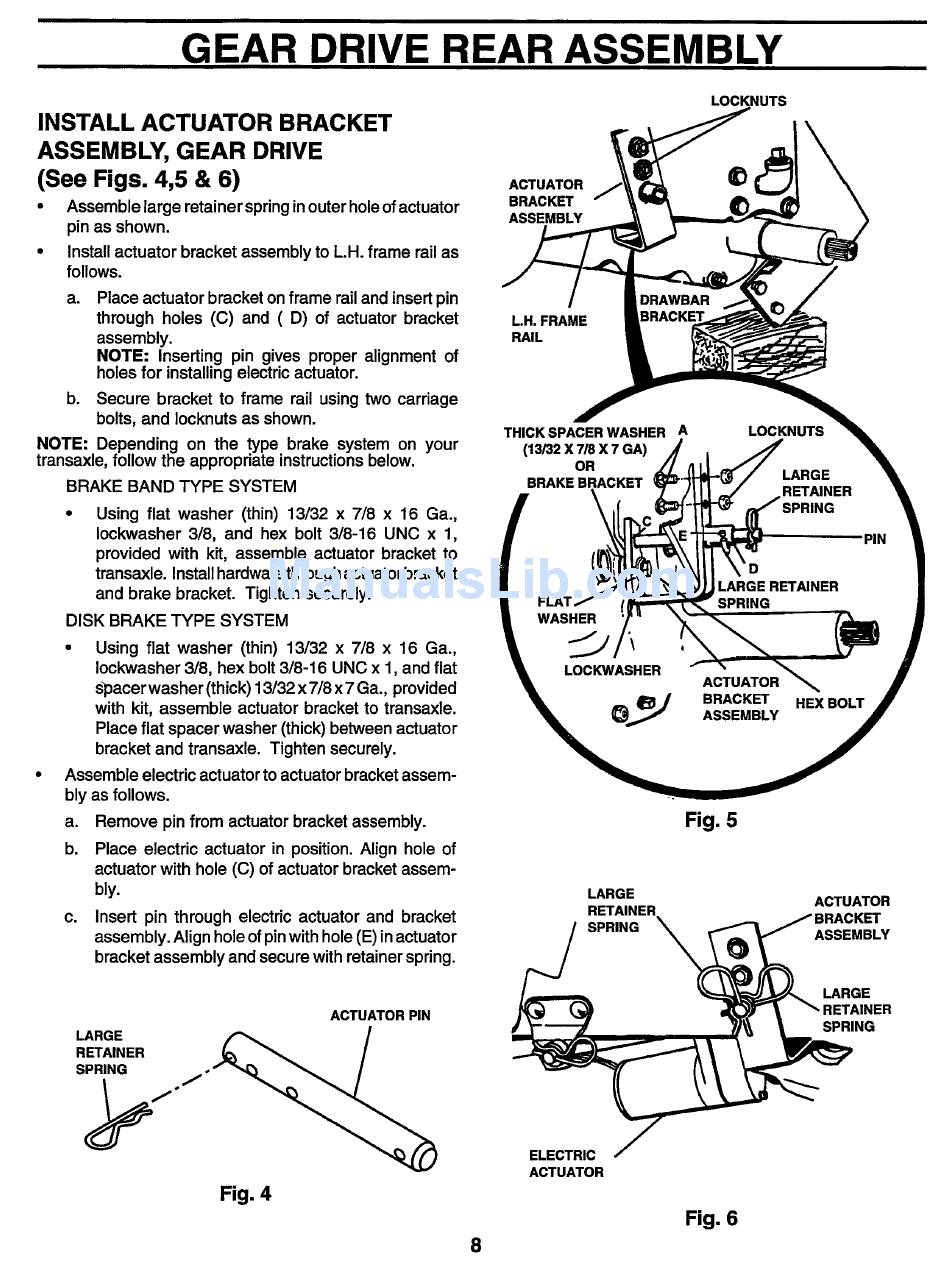

GEAR DRIVE REAR ASSEMBLY
INSTALL ACTUATOR BRACKET
ASSEMBLY, GEAR DRIVE
(See Figs. 4,5 & 6)
• Assemblelarge retainer springinouter holeof actuator
pin as shown.
• Install actuator bracket assembly to LH. frame rail as
follows.
a. Place actuator bracket on frame rail and insert pin
through holes (C) and (D) of actuator bracket
assembly.
NOTE: Inserting pin gives proper alignment of
holes for installingelectric actuator.
b. Secure bracket to frame rail using two carriage
bolts, and Iocknuts as shown.
NOTE: Depending on the type brake system on your
transaxle, follow the appropriate instructionsbelow.
BRAKE BAND TYPE SYSTEM
• Using flat washer (thin) 13/32 x 7/8 x 16 Ga.,
Iockwasher 3/8, and hex bolt 3/8-16 UNC x 1,
provided with kit, assemble actuator bracket to
transaxle. Installhardwarethrough actuatorbracket
and brake bracket. Tighten securely.
DISK BRAKE TYPE SYSTEM
• Using flat washer (thin) 13/32 x 7/8 x 16 Ga.,
Iockwasher 3/8, hex bolt 3/8-16 UNC x 1, and flat
Spacerwasher (thick) 13/32 x 7/8 x 7 Ga., provided
with kit, assemble actuator bracket to transaxle.
Place flat spacer washer (thick) between actuator
bracket and transaxle. Tighten securely.
Assemble electric actuator to actuator bracket assem-
bly as follows.
a. Remove pin from actuator bracket assembly.
b. Place electric actuator in position. Align hole of
actuator with hole (C) of actuator bracket assem-
bly.
c. Insert pin through electric actuator and bracket
assembly. Align hole of pin with hole (E) in actuator
bracket assembly and secure with retainer spring.
LARGE
RETAINER
SPRING
J
ACTUATOR PIN
Fig. 4
LOCKNUTS
ACTUATOR
BRACKET
ASSEMBLY
L.H. FRAME
RAIL
THICK SPACER WASHER A LOCKNUTS
(13/32 X 7/8 X 7 GA)
OR
BRAKE BRACKET
_ D PIN
m ;LARGE RETAINER II
I SPRING |
\w,s I
_,, _J BRACKET HEX BOLT _ r
Fig. 5
LARGE ACTUATOR
RETAINER
tKET
SPRING ASSEMBLY
LARGE
SPRING
8
ELECTRIC
ACTUATOR
Fig. 6
