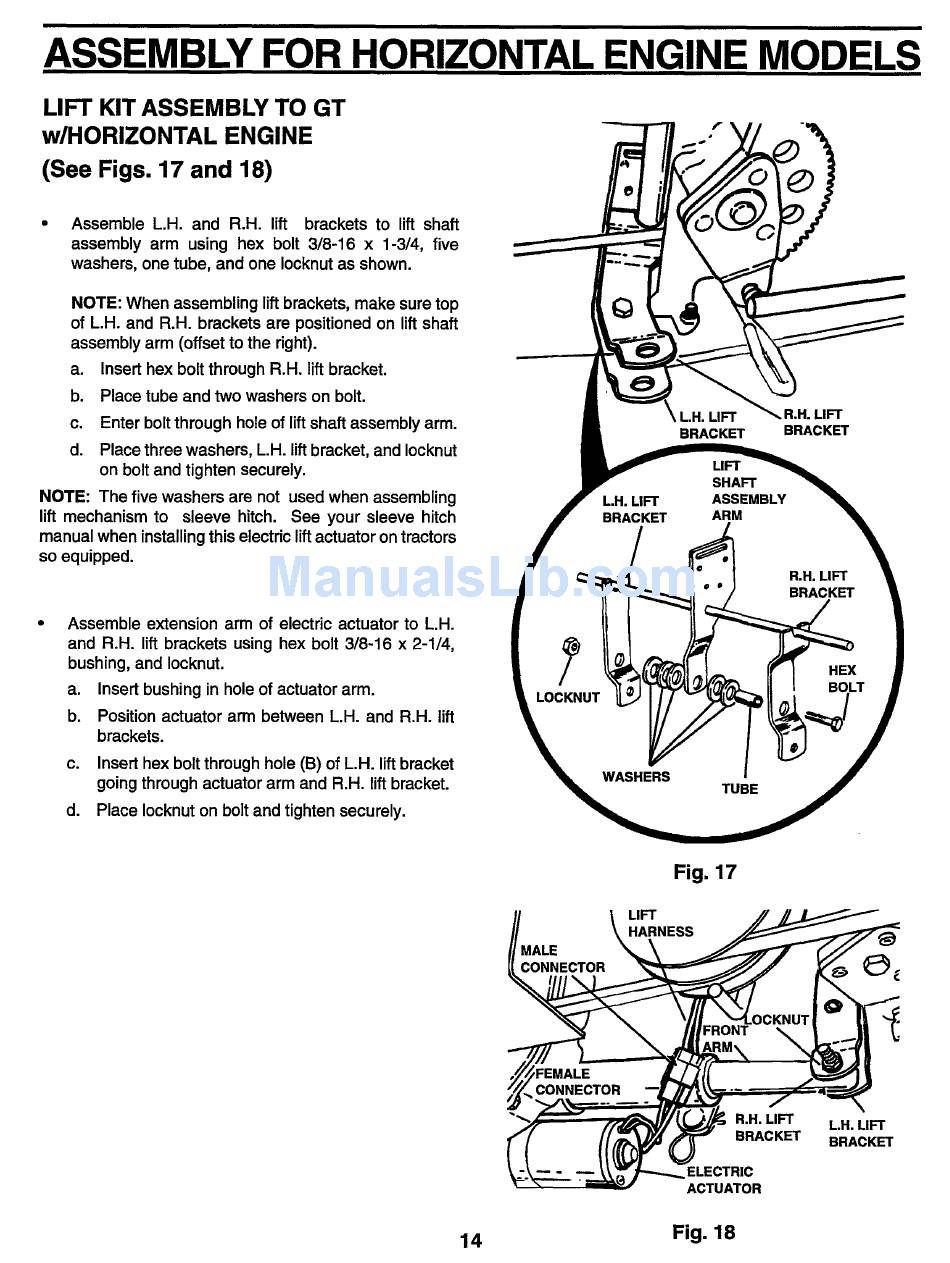

ASSEMBLY FOR HORIZONTAL ENGINE MODELS
LIFT KIT ASSEMBLY TO GT
w/HORiZONTAL
ENGINE
(See Figs. 17 and 18)
Assemble L.H. and R.H. lift
brackets to lift shaft
assembly arm using hex bolt 3/8-16 x 1-3/4, five
washers, one tube, and one Iocknutas shown.
NOTE: When assembling lift brackets, make sure top
of L.H. and R.H. brackets are positionedon lift shaft
assembly arm (offset to the right).
a.
Insert hex boltthrough R.H. lift bracket.
b. Place tube and two washers on bolt.
c.
Enter bolt through hole of liftshaft assembly arm.
d.
Place three washers, L.H. lift bracket, and Iocknut
on boltand tighten securely.
NOTE: The five washers are not used when assembling
lift mechanism to sleeve hitch. See your sleeve hitch
manual when installingthis electricliftactuator on tractors
so equipped.
Assemble extension arm of electric actuator to L.H.
and R.H. lift brackets using hex bolt 3/8-16 x 2-1/4,
bushing,and Iocknut.
a.
Insert bushing in hole of actuatorarm.
b. Position actuator arm between L.H. and R.H. lift
brackets.
c.
Insert hex bolt through hole (B) of L.H. lift bracket
goingthrough actuatorarm and R.H. lift bracket.
d.
Place Iocknuton bolt and tighten securely.
L.H. LIFT
BRACKET
LOCK'NUT
RS
BRACKET
.IFT
BRACKET
LIFT
SHAFT
ASSEMBLY
ARM
R.H. LIFT
BRACKET
I
TUBE_
MALE
Fig. 17
LIFT
HARNESS
R.H. LIFT
BRACKET
ELECTRIC
ACTUATOR
LH. LIFT
BRACKET
14
Fig. 18
