BEFORE YOU START TO ASSEMBLE
THE ELECTRIC
LIFT KIT
This electric lift kit is designed for all garden tractors, with horizontal shaft or vertical shaft engines, and gear drive or
hydrostatic type transaxles.
Before you start to lay out the contents, you must first determine if you have a horizontal or
vertical shaft engine and a gear drive or hydrostatic type transaxle in your tractor. Once you have this information, layout
only those parts which will be used for your type of tractor according to "CARTON CONTENTS" section of this manual.
NOTE: KIT ASSEMBLY WILL REQUIRE ALL COMMON PARTS AND ONLY THOSE PARTS GROUPED FOR YOUR
PARTICULAR TYPE TRACTOR.
ALL REMAINING PARTS MAY BE DISCARDED.
1) VERTICAL OR HORIZONTAL ENGINE CAN BE DETERMINED BY POSITION OF THE ENGINE PULLEY,
IF PULLEY IS UNDER THE ENGINE IT IS A VERTICAL TYPE ENGINE, IF PULLEY IS IN FRONT OF ENGINE IT IS A
HORIZONTAL TYPE ENGINE.
2) HYDROSTATIC TRANSAXLE. CAN BE DETERMINED BY INFINITE SPEED CONTROL POSITIONS, AND
GEAR DRIVE TRANSAXLE WILL HAVE RESTRICTED SPEED GEAR SE'n'INGS.

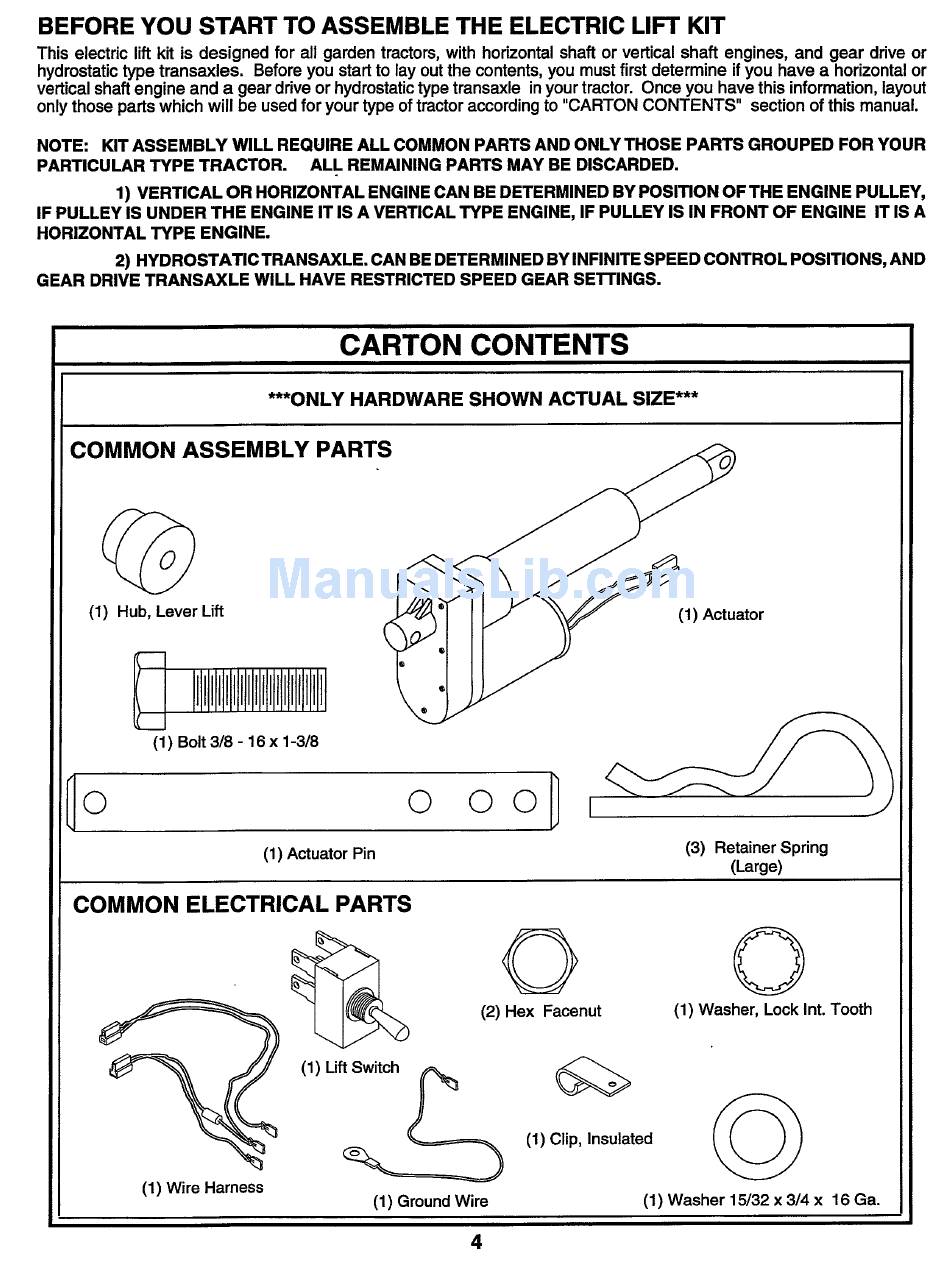

CARTON
CONTENTS
***ONLY
HARDWARE
SHOWN
ACTUAL
SIZE***
COMMON
ASSEMBLY
PARTS
(1) Hub, Lever Lift
(1) Actuator
(1) Bolt 3/8 - 16 x 1-3/8
0
0
O0
I
(1) Actuator Pin
COMMON
ELECTRICAL
PARTS
(1) Wire Harness
O
(2) Hex Facenut
(1) Lift_
(1) GroundWire
(3) Retainer Spring
(Large)
Q
(1) Washer, Lock Int. Tooth
(1) Clip, Insulated
(1) Washer 15/32 x 3/4 x 16 Ga.
4
