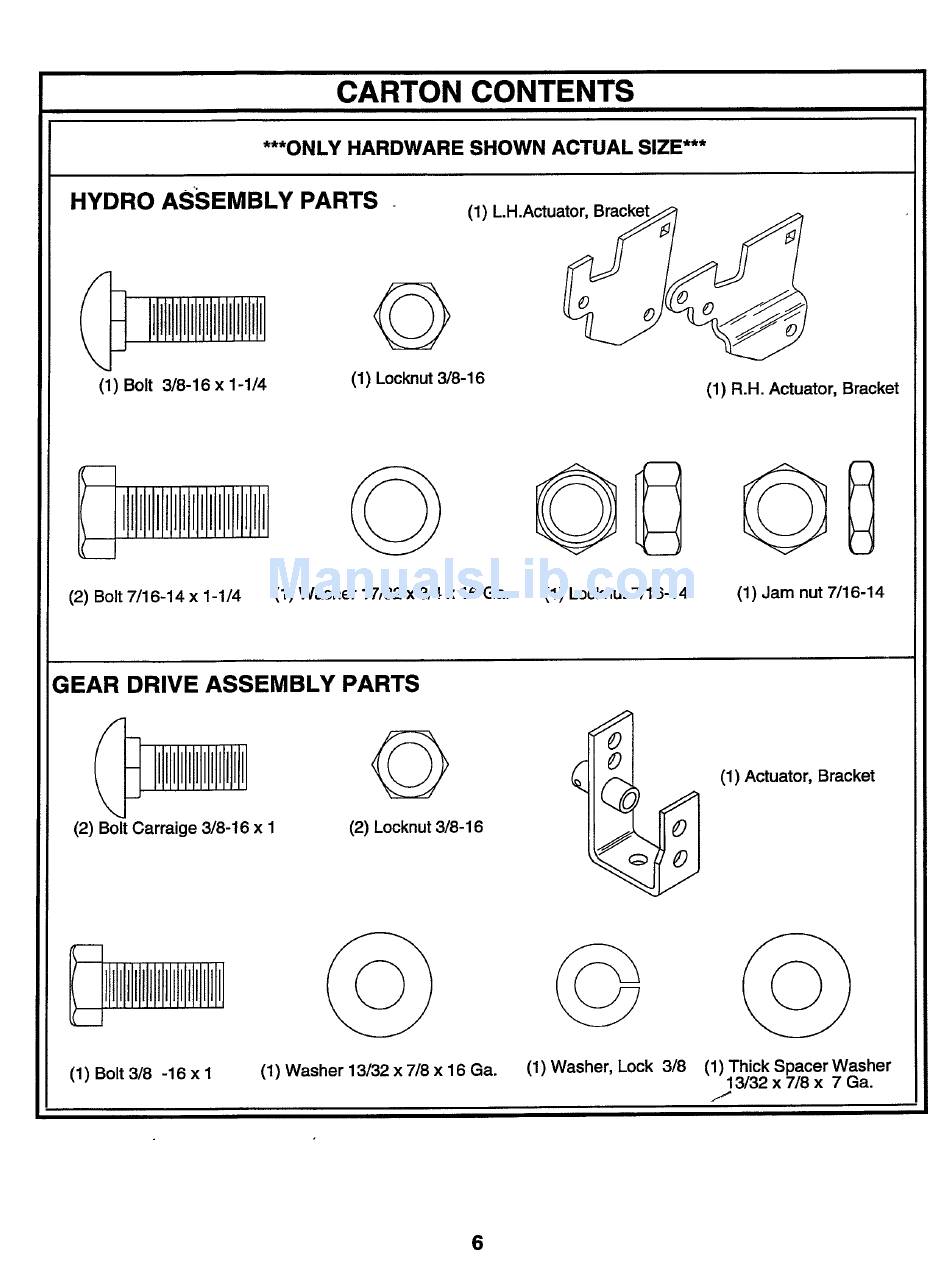

CARTON CONTENTS
***ONLY HARDWARE SHOWN ACTUAL SIZE***
HYDRO ASSEMBLY
PARTS
(1) LH.Actuator
(1) Bolt 3/8-16 x 1-1/4
G
(1) Locknut3/8-16
(1) R.H. Actuator, Bracket
(2) Bolt 7/16-14 x 1-1/4
(1) Washer 17/32 x 3/4 x 16 Ga.
(1) Locknut7/16-14
GD
(1) Jam nut 7/16-14
GEAR DRIVE ASSEMBLY
PARTS
(2) Bolt Carraige 3/8-16 x I
G
(2) Locknut3/8-16
0
,J
%
(1) Actuator, Bracket
(1) Bolt 3/8 -16 x I
(1) Washer 13/32 x 7/8 x 16 Ga.
(1) Washer, Lock 3/8
(1) Thick Spacer Washer
13/32 x 7/8 x 7 Ga.
/
6
