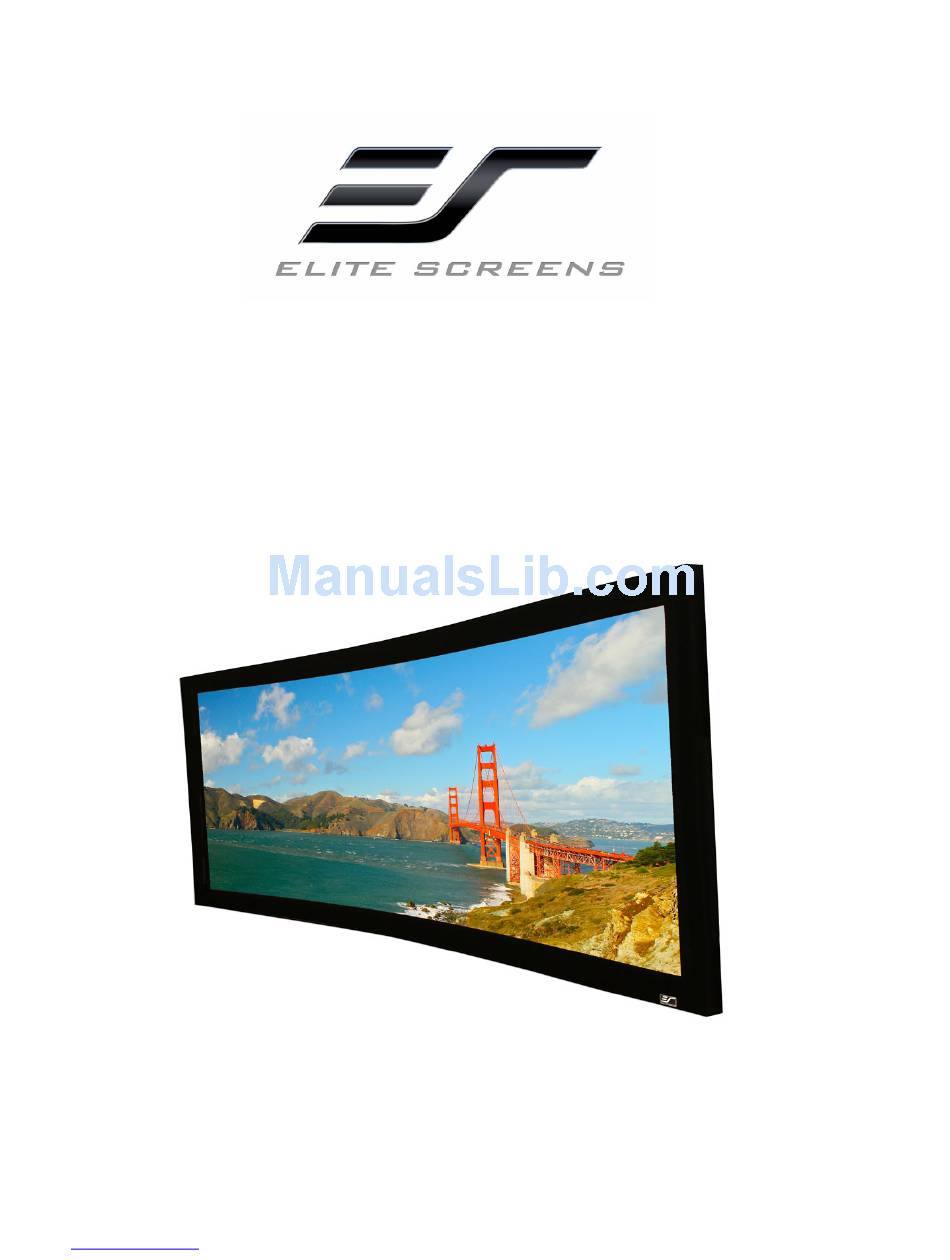

Home Theater Fixed Frame Curved Projection Screen

Lunette Series





Rev.052611‐AS
www.elitescreens.com
info@elitescreens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lunette Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elite Screens Lunette Series

  • Page 1                                                      Home Theater Fixed Frame Curved Projection Screen                        Lunette Series                             1  Rev.052611‐AS  www.elitescreens.com   info@elitescreens.com ...
  • Page 2 Important Safety & Warning Precautions                   Please follow these instructions carefully to ensure proper maintenance and safety with your screen.    1.  Please make sure that no other objects such as power switches, outlets, furniture, ladders, windows,       etc. occupy the space designated to hang the screen.    2.  Regardless if the screen is installed inside or on the wall, make sure that the proper mounting        anchors are used and that the weight is supported appropriately by a strong and structurally sound        surface just as any large and heavy picture frame should. (Please consult a home improvement        specialist for the best advice on installation.)    3.  Frame parts are made of high quality velour‐surfaced aluminum and should be handled with care.    4.  When not in use, cover the screen with a furniture sheet to protect from dirt, grime, paint or any         other impurities.    5.  When cleaning, use a damp soft cloth with warm water to remove any marks on the frame or screen        surface.    6.  Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.    7.  To avoid damaging the screen, do not touch the material directly with your fingers, tools or any other        abrasive or sharp objects.    8.  Spare parts should be placed out of reach for small children in accordance with household safety        guidelines .        Caution:    • The projection screen frame is made of high‐quality aluminum alloy and should be handled  with care.    •...
  • Page 3 Parts List for the Lunette Series          Please make sure all parts listed below are included before proceeding with the installation.              A. Dry‐wall anchor   B. 1.77” L‐Bracket  C. 3.54” L‐Bracket   D. Y‐Bracket   E. M5 Screw  F. Wood Screw                                                         G. Fix Plate         H. Center Support Bar    I. Support Joiner  J. Elbow Joint                                                                                                                              K. Butterfly Screw                                             L. Tension Rods                                                                                                       M. Vertical Upright Frame                                                                                   N. Horizontal Curved Frame                           ...
  • Page 4: Installation Instructions

    Installation Instructions Assembly  1. Insert both Elbow Joints (J) into each Horizontal Curved Frame (N) and join all four frame parts       together as shown below.                                                           2. After making sure that all four corners join at right angles to form a perfect rectangle and fasten         together with the M5 screws (E).                                      Minimal gap is normal here                                          3. Lay out the Screen Material (O) and Tension Rods (L) on a clean and dry surface and gently roll out      the screen material on the back of the frame.        Vertical Upright Frame Horizontal Curved Frame Black Backing of the screen material                     4  Rev.052611‐AS  www.elitescreens.com   info@elitescreens.com ...
  • Page 5 4. Insert the screen Tension Rods (L) through the sleeves according to their corresponding length on      each edge of the screen.              5. Slip the tension rods into the grooves running along each side on the back of the frame. Clip on the Fix       Plates (F) to the back of the frame to secure the rods into place forming a tight and flat surface.       Tension Rod  Fix Plate    Viewing Surface  5  Rev.052611‐AS  www.elitescreens.com   info@elitescreens.com ...
  • Page 6     Black  Backing g for Ac cousticP Pro1080 0 Mode   This proce edure only ap pplies to Acou usticPro 1080 0 models, disr regard if your r curved fram e us now an  AcousticP Pro 1080 varia ant. The black k backing cou nters the effe ects of light p penetration th hat would  otherwise e light up all it tems behind  the screen an nd spoil the p picture.  The black b backing goes b behind the pro ojection surfac ce and is held i nto position b by Velcro‐faced d fix plates.       ...
  • Page 7 ATTACH THE FIX PLATES          1. Make sure that the material and frame are lying face down on a clean, dry and non‐abrasive surface.  2. Center the material inside the frame.  Note: The material will be noticeably smaller because stretching the material is required to create a  sufficient amount of tension for perfect material flatness.  3. Start attaching the Fix Plates in the center of the Horizontal Curved Frame’s edge and (1) then       alternate with the center short sides (2).    Note: Follow these instructions to make sure the material is properly fixed in the center position of the  frame.  After attaching the Fix Plates in sequence #2 (the center of the short sides), please remove the  fix plates in sequence #1 (the center of the long horizontal edge) and reattach them again, and  also remove the fix plates on sequence# (2) and reattach them again.      4. Then continue to follow our recommended order numbers 3‐8 to properly distribute tension to          the screen material.      7  Rev.052611‐AS  www.elitescreens.com   info@elitescreens.com ...
  • Page 8: Center Support Bar

    CENTER SUPPORT BAR    1. Insert the Support Joiner (I) into each side of the Center Support Bar (H) to complete assembly.   Support joiner   Center support bar  2. Insert the Center Support Bar (H) into the upper top groove on the back of the frame (not the one      where the fix plate inserts) with the bottom end near the approximate center point of the frame and       place it in at an angle so that both ends of the bar are in alignment with the groove.    3. Slide the top end of the end bar into the top center point location as shown below to complete the       center support bar installation. This will provide added stability to your frame and add tension to the       material.                                                           8  Rev.052611‐AS  www.elitescreens.com   info@elitescreens.com ...
  • Page 9: Installation

    INSTALLATION            Wall Horizontal     Curved Frame    Mid‐Point (Y‐Bracket) L‐Point (L‐Bracket)    R‐Point (L‐Bracket)       9  Rev.052611‐AS  www.elitescreens.com   info@elitescreens.com ...
  • Page 10 1. Locate your desired installation height, draw the Datum Line and mark the drill‐hole area of the       Mid‐Point. Note: The center of the hole must align with the Datum Line.    2. Mark the drill‐hole area of the L‐Point and the R‐Point. The top of the bracket must align with the       Datum Line.    3. Drill a hole with the proper bit size according to the included Wood Screws (F).    4. Line up the brackets with the drilled holes on the installation location and screw then in using a       Phillips screwdriver.    5. Position the fixed frame screen onto the Y‐Bracket (D) and push down at the center of the bottom      frame to secure the insertion of the frame into the Y‐Bracket.    6. Combine the 1.77” L‐Bracket (B) with the installed mounted 3.54” L‐Bracket (C) using the Butterfly      Screws (K) and then position frame onto the bracket.    Note: Step 6 only refers to models 125w and above. Models 85w‐115w use four 1.77” L‐Brackets (B).    7. The brackets provide flexibility by allowing the fixed frame screen to slide to the slides. This is an        important feature as it allows your screen to be properly centered.                                         ...
  • Page 11                   Model Numbers Parts List Curve235-   Model Number    85w  96w  103w  115w  125w  138w  147w  158w  Part Name  Horizontal Curved Frame  2  Upright Vertical Frame  2  Elbow Joint  4  M5*15 Assembly Screw  9  Screen Material  1  Top/Bottom Tension Rod  2  Side Tension Rod  2  Center Support Bar  2  Support Joiner  4  Fix Plate  66  Dry‐wall anchor  9  M5*45 Wood Screw  9 ...
  • Page 12 Lunette Series Dimens sion Ta able1     Unit:mm Diago onal Over rall Viewing Frame Overall View wing Frame Model Size/As spect Widt Width Width Height Heig Depth (A1) (A2) Curve235-85 85"(2.3 35:1) 1986 1025 1050 Curve235-96 96"(2.3 35:1) 2243 1134 1150 Curve235-103...
  • Page 13: Warranty Policy

    Warranty Policy     • Two (2) Year parts and labor warranty from defects in workmanship from purchase date as  follows (except for refurbished units as specified below).  • Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,  Educational, Military, & Religious) purchases of new product only.  • Refurbished Units carry a 90‐DAY parts and labor warranty.  • Each party will be responsible for one way shipping during the warranty period.  • A RMA (Return Merchandise Authorization) number must be issued in order to process a  replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option  replace or repair the defective unit with a replacement *(see exceptions below) after the  defective unit or parts have been received. Once the product is received, Elite Screens will send  out a replacement *unit to the customer by ground service (subject to inventory availability).  • Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned  at your expense. The RMA Number must be included on the outside label of your shipping  box. Our warehouse is not authorized to accept returns without an RMA number on the  shipping label.  • RMA Numbers are valid for 45 days from the date issued.  • Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer  will be responsible for shipping and handling fees. If reported after 30 days of receipt, the  customer will be responsible for cost of parts and shipping & handling fees.    *A New or refurbished replacement will be send out to the customer depending on the type of  purchase (new or refurbished) and based on stock availability.    North America only U.S. and Canada    For Warranty and Service requests, please submit an RMA/Service Form at:  www.elitescreens.com/warrantysupportform     Please visit this link for full Warranty information: ...
  • Page 14: Contact Info

    Contact Info   US & Canada Tech Support & Warranty Claim  Please contact us at service@elitescreens.com or call +1 877‐511‐1211 #3 or fax +1‐562‐926‐8433  Europe Tech Support & Warranty Claim  Please contact us at service@elitescreens.eu or call +49‐(0) 40‐30392958  Asia Tech Support & Warranty Claim   Please contact us at service@elitescreens.com.cn or call +86‐(0) 755‐8461‐7989  Taiwan Tech Support & Warranty Claim  Please contact us at service@elitescreens.com.tw or call +866+2+8990‐1999  America:              Europe:  Elite Screens Inc             Elite Screens Europe  16410 Manning Way              Lübecker Straße 1  Cerritos, CA 90703 USA            22087 Hamburg, Germany   ...
