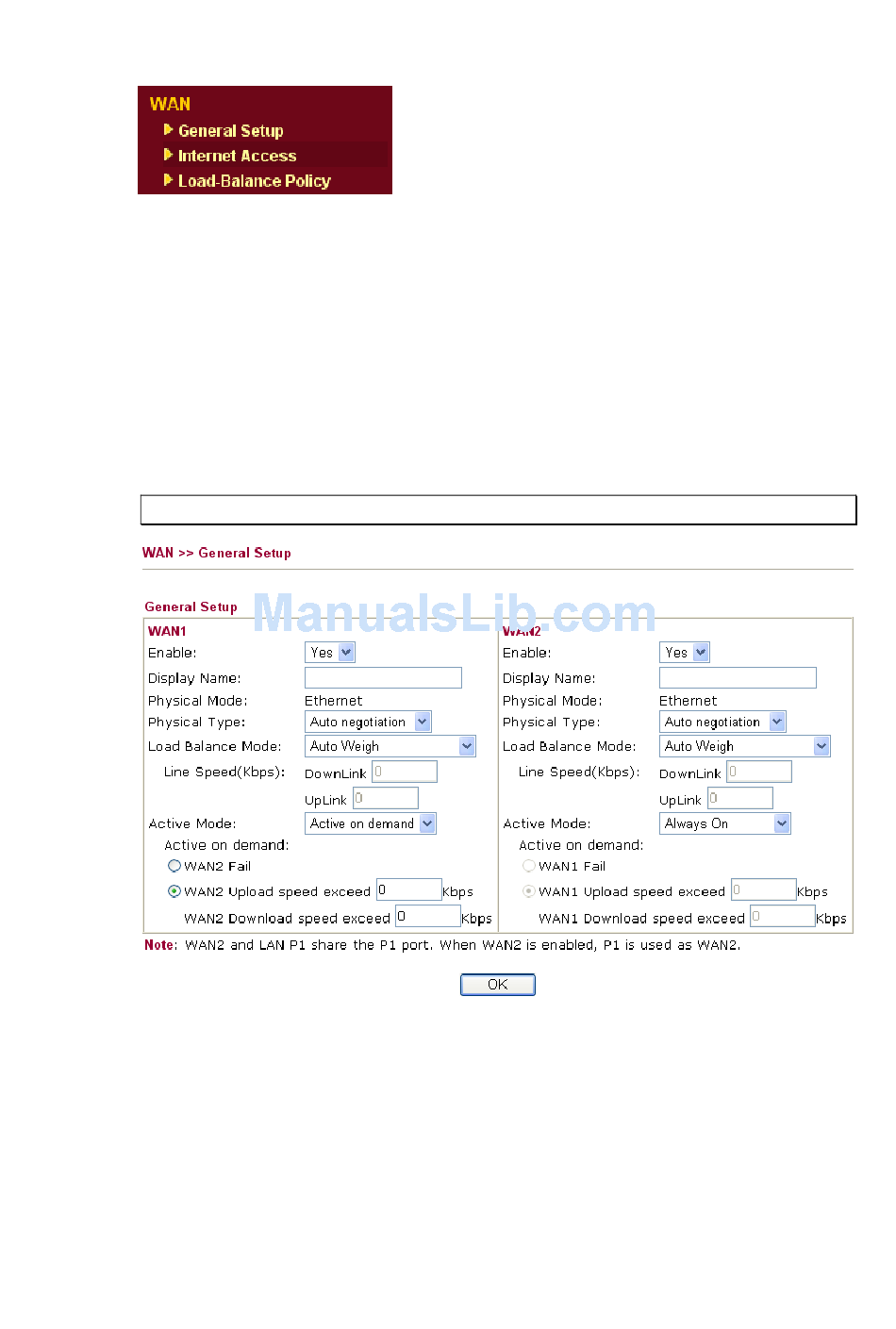

Below shows the menu items for Internet Access.
3 . 1 . 2 G e n e r a
3 . 1 . 2 G e n e r a
This section will introduce some general settings of Internet and explain the connection
modes for WAN1 and WAN2 in details.
This router supports dual WAN function. It allows users to access Internet and combine the
bandwidth of the dual WAN to speed up the transmission through the network. Each WAN
port (WAN1- through WAN port/WAN2- through LAN1 port) can connect to different ISPs,
Even if the ISPs use different technology to provide telecommunication service (such as
DSL, Cable modem, etc.). If any connection problem occurred on one of the ISP connections,
all the traffic will be guided and switched to the normal communication port for proper
operation. Please configure WAN1 and WAN2 settings.
This webpage allows you to set general setup for WAN1 and WAN respectively.
Note: In default, WAN1 is enabled. WAN2 is optional.
Enable
Display Name
Physical Mode
20
l S e t u p
l S e t u p
Choose Yes to invoke the settings for this WAN interface.
Choose No to disable the settings for this WAN interface.
Type the description for the WAN1/WAN2 interface.
For WAN1, the physical connection is done through ADSL
port; yet the physical connection for WAN2 is done through
an Ethernet port (P1). You cannot change it.
