3.

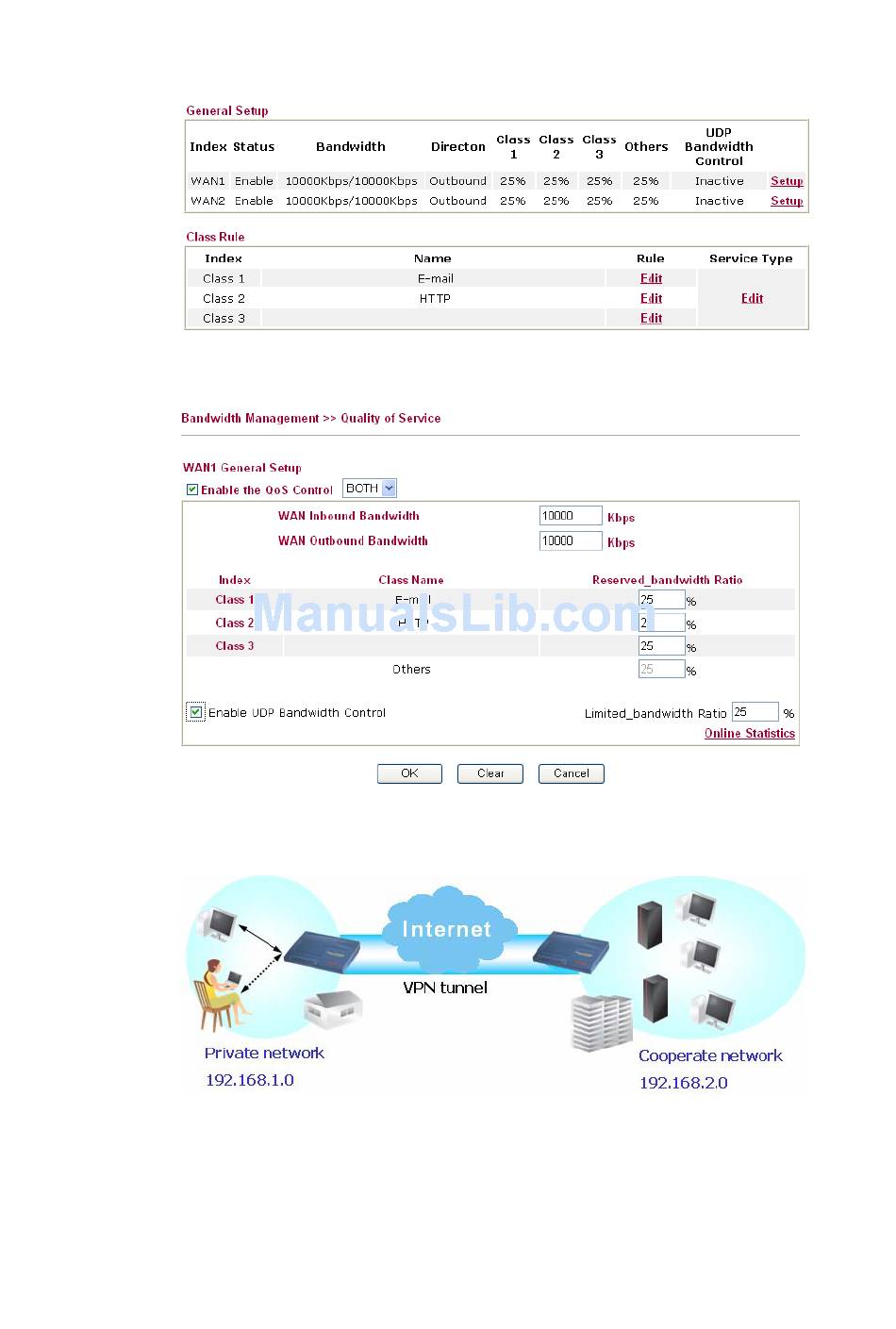

Enter the Name of Index Class 2 by clicking Edit link. In this index, the user will set
reserve bandwidth for HTTPS. And click Basic button on the right.
4.
Click Setup link for WAN1. Check Enable UDP Bandwidth Control on the bottom to
prevent enormous UDP traffic of VoIP influent other application.
5.
If the worker has connected to the headquater using host to host VPN tunnel. (Please
refer to Chapter 3 VPN for detail instruction), he may set up an index for it. Enter the
Class Name of Index 3. In this index, he will set reserve bandwidth for 1 VPN tunnel.
6.
Click edit to open a new window. First, check the ACT box. Then click SrcEdit to set a
worker's subnet address. Click DestEdit to set headquarter's subnet address. Leave
other fields and click OK.
Vigor2910 Series User's Guide
171
