1
.
3
H
a
r
d
w
a
r
e
1
.
3
H
a
r
d
w
a
r
e

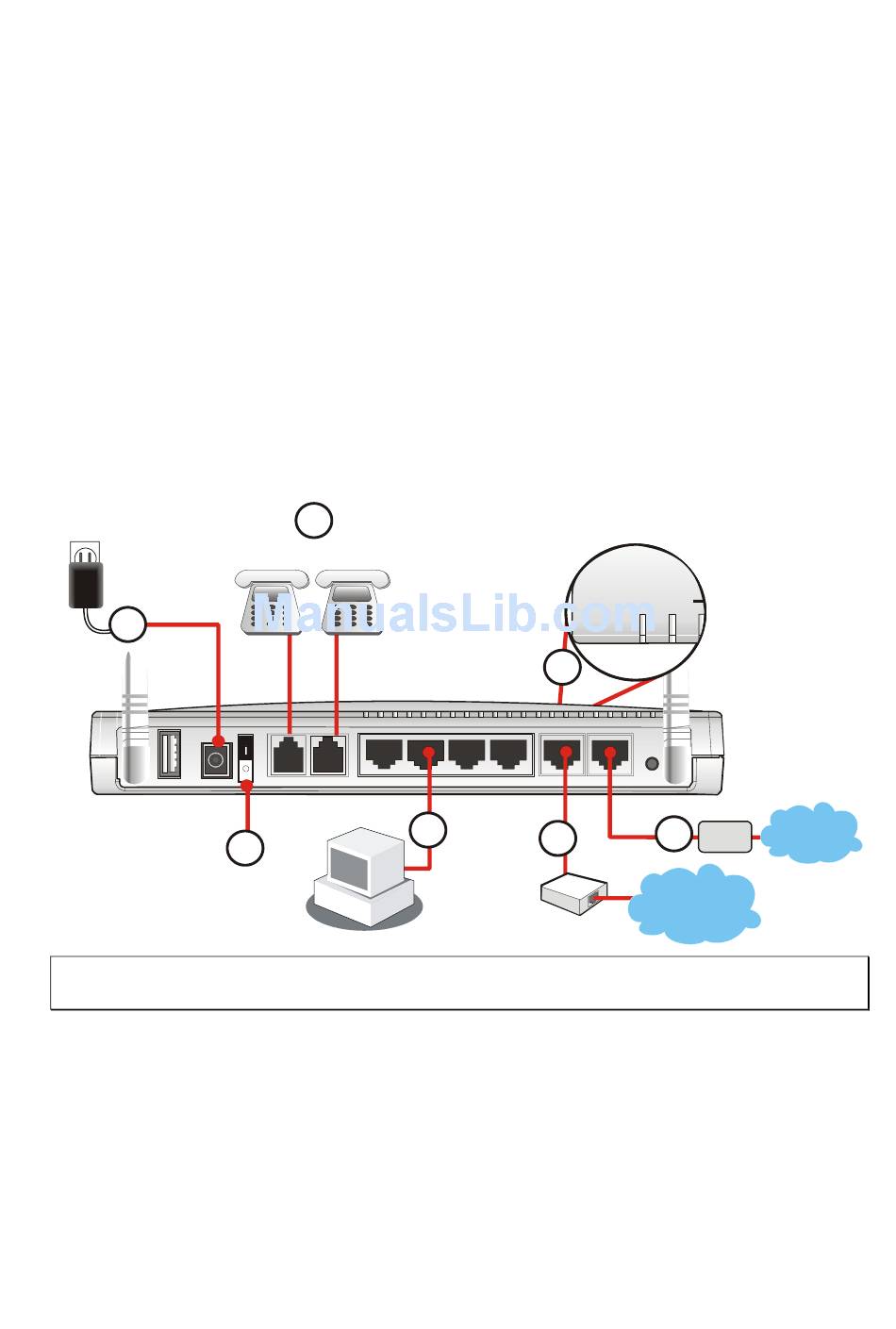

Before starting to configure the router, you have to connect your devices correctly.
1.
Connect this device to a router/modem with an Ethernet cable.
2.
Connect one port of 4-port switch to your computer with a RJ-45 cable. This device
allows you to connect 4 PCs directly.
3.
Connect one end of the power cord to the power port of this device. Connect the other
end to the wall outlet of electricity.
4.
Connect the telephone sets with phone lines (for using VoIP function). For the user of
the model without VoIP ports, skip this step.
5.
Connect the ISDN NT1/1+ box with ISDN cable. This connection is available for
Europe only.
6.
Power on the router.
7.
Check the ACT LED to assure network connections.
(For the detailed information of LED status, please refer to section 1.1.)
3
Printer
Caution: Each of the FXS ports can be connected to an analog phone only. Do not connect the
FXS ports to the telephone wall jack. This connection might damage your router.
6
I
n
s
t
a
l
l
a
t
i
o
n
I
n
s
t
a
l
l
a
t
i
o
n
4
Analog Phone
Analog Phone
Phone
Line
PWR
FXS2
FXS1
P4
6
7
P3
P2
P1/W2
W1
2
1
Cable/DSL
Modem
ADSL2+
ACT
Link
QoS
ACT
FX
WLAN
Data
Factory
ISDN
Reset
5
NT1/1+
Internet
Vigor2910 Series User's Guide
ISDN
