2.4 Under Unit Features

TransPort WR44
[Front of Unit]
3
1
[Rear of Unit]
TransPort WR44 R
[Front of Unit]
3
[Rear of Unit]

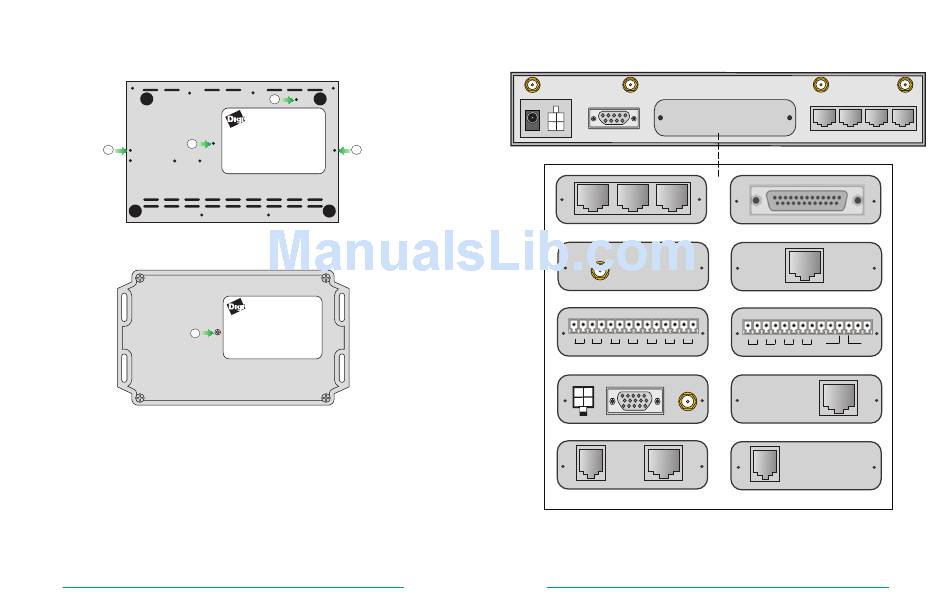

1. Unit mounting holes.
2. SIM slot cover plate mounting hole.
3. Reset button - The reset button allows the user to return the unit to its factory default settings. It is recessed
[to avoid accidental reset], and can be accessed via a small 2.5mm hole located on the underside of the
unit.
2.4.1 Reset instructions
Step 1) Turn the unit on and wait 15 seconds for the unit to complete its initialization process.
Step 2) Press and hold the reset button gently for 5 seconds. After this time, the unit will automatically
re-boot and display a pattern of alternating LEDs flashing followed by the normal boot sequence.
Note: Do not remove power from the unit during this operation as corruption of the flash memory may occur.
Page 10
2
1
TransPort ® WR44 Installation Guide

2.5 Additional Hardware Features

The TransPort WR44 is available with various hardware options, as shown below:
WWAN PRIMARY WIFI SECONDARY
11-58VDC
1.3A MAX
AUX.
MAIN SERIAL 0
SERIAL 1 SERIAL 2 SERIAL 3
Option 1: ASY Serial Port (3x)
GPS
Option 3: GPS
_ _ _ _
A B A B + + + +
IN OUT 1 OUT 2 OUT 3 OUT 4
DC IN RLY
Option 5: Telemetry 1 I/O Interface
Pwr Data GPS
Option 7: Fleet I/O Interface
Modem ISDN
Option 9: ISDN-U/PSTN
WWAN SECONDARY WIFI PRIMARY
LAN3 LAN2 LAN1
SERIAL 1
Option 2: SYN/ASYN Serial Port
ISDN
Option 4: ISDN
A B A B A B A B D1 D2 D3 D4
AN2 D34C
AN1 AN3 AN4 D12C
Option 6: Telemetry 2 I/O Interface
PSTN
Option 8: PSTN
To Modem
Option 10: DialServ
