- Page 1 Cellular Routers Wireless WAN Router/switch Installation Guide...
- Page 2 Digi International reserves the right to modify or revise all or part of this document, its contents, and any products described herein at any time without prior notification and shall not be responsible for any loss, cost, or damage, including consequential damage, caused by reliance on these materials.
- Page 3 GSM, CDMA, or simply „wireless‟ networks. The type of network supported by each model is summarized in the table below: Network Model WCDMA WCDMA WCDMA CDMA GPRS EDGE UMTS HSDPA HSUPA EVDO1xRTT DR64-H DR64-U DR64-C...
- Page 4 However, GSM based products contain radio devices which require specific consideration. Please take the time to read and understand the following guidance. Digi International assumes no liability for an end user‟s failure to comply with these precautions.
-
Page 5: Package Contents

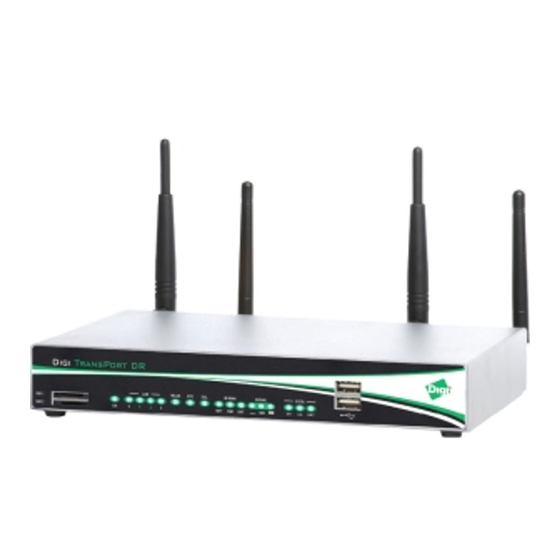

A complete reference guide to the software features that are available on the product is available separately in PDF format and can be downloaded from the Digi International website (www.digi.com). The Transport DR features: 1 x 4-port 10/100Base-T Ethernet switch 1, 2 or 6 x RS232 serial ports (depending on model) 2 x USB 2.0 host ports... -
Page 6: Front Panel Features
1 Introduction The Transport DR series IP routers facilitate the transmission of data over DSL, ISDN, PSTN or wireless WAN networks. The Transport DR provides an ADSL/2/2+/2++ interface along with a 4-port 10/100 Ethernet switch. Optional features include 3G/HSDPA, or 3G/EVDO wireless capability and 802.11 b/g wireless LAN or PSTN network connectivity. - Page 7 Illuminates steady if a terminal is connected to the serial port and the DTR signal is on. Flashes when data is transmitted/received. Constant red - no DSL is detected. Quick red flash - DSL is detected and unit is trying to train up to the DSL signal.
- Page 8 12V DC This socket is used to connect the unit to the power supply using the 12V DC power adapter. LAN 0, 1, 2, 3 The LAN sockets are used to connect the unit to 10/100-BaseT LANs using the 2-meter STP (Shielded Twisted Pair) cable supplied or a suitable alternative.
-
Page 9: Installation
Digi International can supply a range of suitable antennas. Safety notice A separation distance of at least 20cm should be maintained at all times between the W- WAN antenna (if used) and personnel using the unit. - Page 10 DB25 sockets. A suitable cable will be required to connect your terminal device(s) to these ports. The 6 serial ports are presented as RJ45 connectors. A range of suitable cables and adapters are available from Digi for connecting terminal devices to these ports.
- Page 11 3 Configuration Once the router has been installed and powered up, the mobile interface should now be configured to communicate to the Internet or Wireless WAN provided by your wireless carrier. Note: The default IP address for the LAN 0 port is 192.168.1.1, with subnet of 255.255.255.0.
- Page 12 If the APN you are using does not require a PPP username and password, they you can skip this next step. Configuration -> Interfaces -> PPP -> PPP 0-4 -> PPP 1 -> Standard Enter the PPP username, password, and confirm password. Click OK. Follow prompts to save the configuration to flash memory.
- Page 13 Depending on the wireless plan being used, you should be able to perform a test to a remote host or browse the Internet. By default, the Digi Transport should have issued your workstation an IP address of 192.168.1.100 via DHCP. DHCP will pass the proper default gateway and DNS server information.
- Page 14 Step 5 – Finish Device Configuration For greater description on all the features and settings available on the device, there is a comprehensive Reference Guide available on the Digi Support website (www.digi.com). Advanced Configuration: VPN: Configuration > VPN Routing: Configuration >Routing Firewall: Configuration >...
-
Page 15: General Specifications
GSM/GPRS/EDGE modulation and coding scheme MCS1-9 modem GPRS multi-slot class 10, mobile station class B, PBCCH support, coding schemes CS 1-4 DR64-H HSDPA 1.8 Categories 1-4, 11 and 12 GSM/GPRS/EDGE/ HSDPA 3.6 Categories 5 and 6 UMTS/HSDPA modem UMTS: 384 Kbps downlink, 384 Kbps uplink... - Page 16 DR64-U HSUPA mode: 2 Mbps Category 5 GSM/GPRS/EDGE/ HSDPA 1.8: Categories 1-4, 11 and 12 UMTS/HSDPA/HSUPA HSDPA 3.6: Categories 5 and 6 modem HSDPA 7.2: Categories 7 and 8 UMTS: 384 Kbps downlink, 384 Kbps uplink MO 0301: 850/1900/2100 (Rx diversity) MHz MO 0302: 850 (Rx Diversity) / 1900 (Rx Diversity) / 2100 MHz Equalization and Rx Diversity at the same time Quad-band GSM 850/900/1800/1900 MHz EDGE (E-GPRS) multi-slot class 12 (max...
