Movincool Office Pro 24 Installation Manual

Office Pro 24 Nozzle Adapter Installation
CAREFULLY READ INSTRUCTIONS FOR CORRECT INSTALLATION AND USAGE.

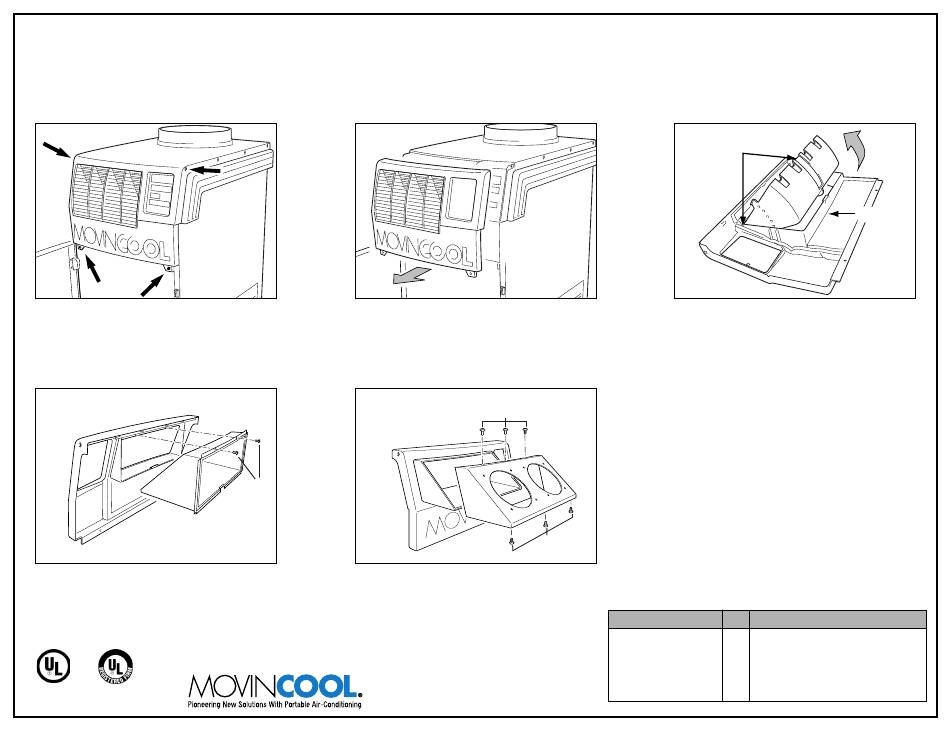

1
Removal of Upper Front Panel Screws
Remove four (4) screws from upper
front panel.
4
(From the Rear Side)
Install the Frame Sub-Assembly into the
upper front panel and attach it to the
upper front panel using two (2) screws
(provided).
DENSO SALES CALIFORNIA, INC.
REGISTERED TO ISO 9002
FILE NO. A5537
2
Removal of Upper Front Panel
Slide upper front panel forward and
remove.
(2)
5
(From the Front Side)
Install the Duct Sub-Assembly onto the
Frame Sub-Assembly using the six (6)
self-tapping screws as shown.
© 2001 DENSO SALES CALIFORNIA, INC.
DENSO P/N: LA990009-0816
www.movincool.com
(3)
(3)
Nozzle Adapter Kit Part #: LAY84209-0010
Description
Frame Sub-Assy
Duct Sub-Assy
Screw
Screw, Self-Tapping
Screw w/ Washer
PIVOTS
TABS
3
Removal of Air Outlet Louver
Louver can be removed from upper
front panel by unsnapping it rearward.
6
Reinstallation of Top Front Panel
Reinstall the Top Front Panel onto the
unit.
7
The unit is now ready for installation of
the optional Cool Air Ducts or flanges
(not included).
Parts included with kit:
Qty. Remarks
1
1
2 Frame Sub-Assy to Panel
6 Duct Sub-Assy to Frame
8 Cool Air Duct or Flange Mounting
