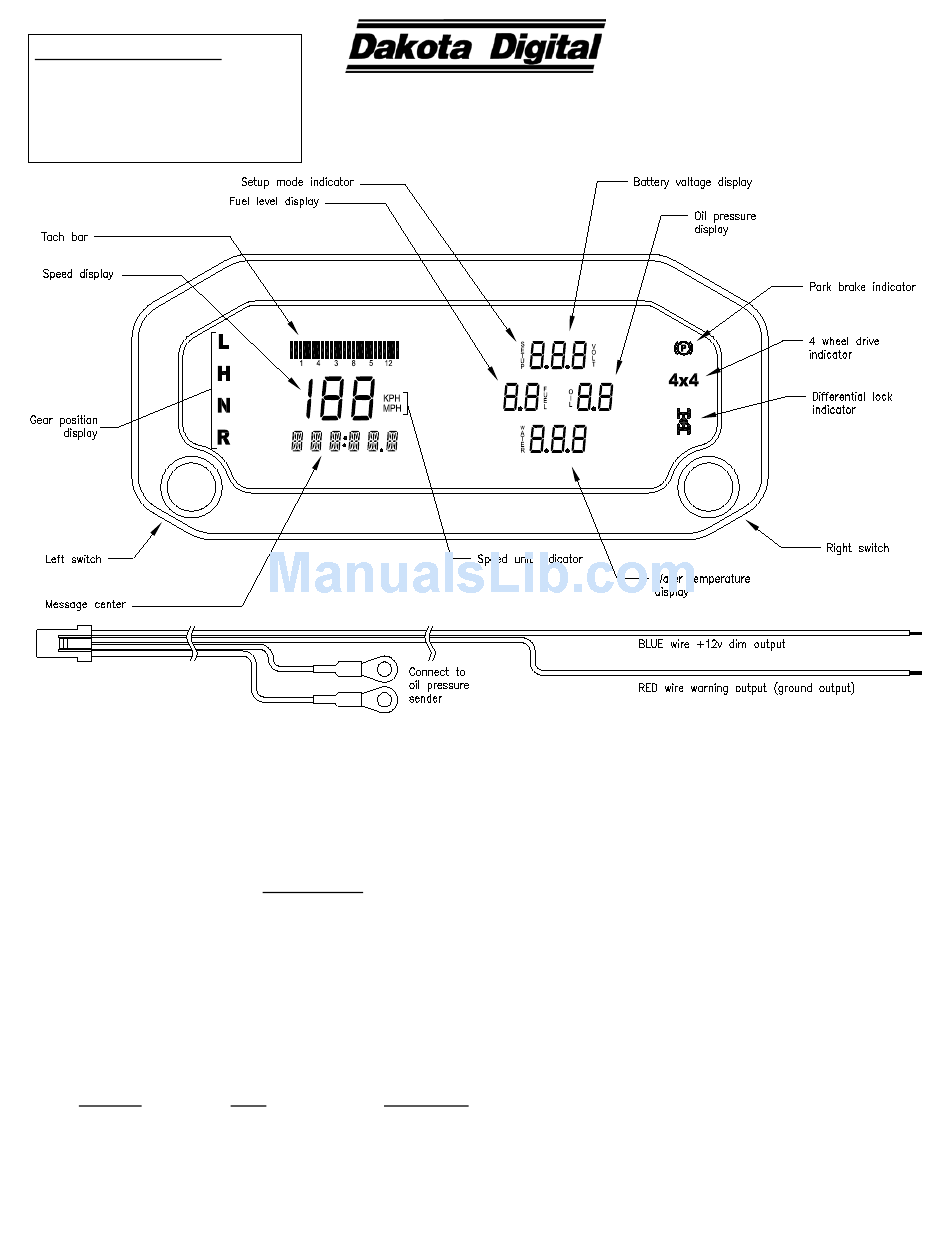

IMPORTANT NOTE!
This gauge has an hour meter and
odometer preset option available only
for the first 1.0 engine hour and 10
miles (16km). See "ODO/HR
PRESET" for instructions.
Operation menu
Left switch functions
Pressing the left switch during normal gauge operation will move through the below commonly viewed functions
for convenience.
00000. 0
12: 0 0A
H
0. 0
Right switch functions
Pressing the right function switch during normal operation will scroll through the following display functions. A
heading will first appear after each press to display what display function is currently selected. After about 2
seconds, the display will show the data for the selected function.
Heading
trip A
trip b
srv mi(srv km)
srv hr
mph(KPH)
tach
2004-2006 Yamaha Rhino
Odometer
Clock (hold left switch to set)
Setting clock:
Left switch press moves between hours and minutes
Right switch press changes current value
Hold left switch again to exit clock set mode
Hourmeter
Data
a
0. 0
b
0. 0
s 0000
sh 000
00 mph(00 KPH)
r 0000
UTV-1000
Multi Gauge for
Description
Trip A (hold right switch to reset)
Trip B (hold right switch to reset)
Count down Service odometer if enabled (hold right switch to reset)
Count down service hour meter if enabled (hold right switch to reset)
Alternate speed display (hold right switch to change primary unit)
Tachometer displays in information center
page 1
MAN#650231:A
Advertisement
Table of Contents
Related Manuals for Dakota Digital UTV-1000
Summary of Contents for Dakota Digital UTV-1000
- Page 1 IMPORTANT NOTE! This gauge has an hour meter and odometer preset option available only UTV-1000 for the first 1.0 engine hour and 10 miles (16km). See “ODO/HR Multi Gauge for PRESET” for instructions. 2004-2006 Yamaha Rhino Operation menu Left switch functions Pressing the left switch during normal gauge operation will move through the below commonly viewed functions for convenience.
- Page 2 INSTALLATION: Disconnect the battery to prevent possible damage to the electrical system or gauge during install. Remove the stock gauge or indicator panel (see service manual for removal instructions). The UTV gauge will mount in this mounting location. Remove the seats, console/engine cover, front engine cover, and center floor/front drive shaft cover (refer to service manual).
- Page 3 Fuel sender installation (optional tube sender from Dakota Digital): a. To mount the sensor you will need to drill a hole in the fuel tank. Use a 1” hole saw, and drill a hole adjacent to the small dimple on the gas tank closest to the passenger side of the vehicle. Use a fuel safe sealant and coat the supplied cork gasket to provide a leak free seal from the tank to the sensor.
- Page 4 No fuel sender used, fuel area will be blanked out (default) STOCK Uses stock fuel sender for Rhino DAKDIG Uses Dakota Digital sender to be installed in tank CUSTOM Uses custom sender, user must calibrate for the sender curve CAL Y (CAL N)
- Page 5 CLOCK± Adjust clock speed for accuracy -7 SEC Subtract 7 seconds from clock every 24 hrs … 0 SEC No adjustment to factory clock speed (default) … +7 SEC Add seven seconds to clock every 24 hrs St odo Allows presetting of odometer value on initial install (not available after 10 miles / 16km) Set hr Allows presetting of hour meter value on initial install (not available after 1.0 hrs) MAIN...
- Page 6 CUSTOM FUEL SENDER SETUP If a fuel sender other than the Rhino stock fuel sender or the Dakota Digital fuel sender is used, the gauge needs to be calibrated to the new fuel sender. The custom fuel sender option in the gauges menu allows this function.
- Page 7 TROUBLESHOOTING PROBLEM CAUSE SOLUTION Gauge does not light up Gauge has bad ground or power Check connections to wiring harness and check wiring harness and gauge wires for pinched or broken wires. Tach always stays blank Tach wire is not connected properly Check for good connection to alternator wire.
- Page 8 Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
