VM-150 Victory installation kit for MCL-5000 Series gauges
VM-170 Victory installation kit for MCV-7000 Series gauges

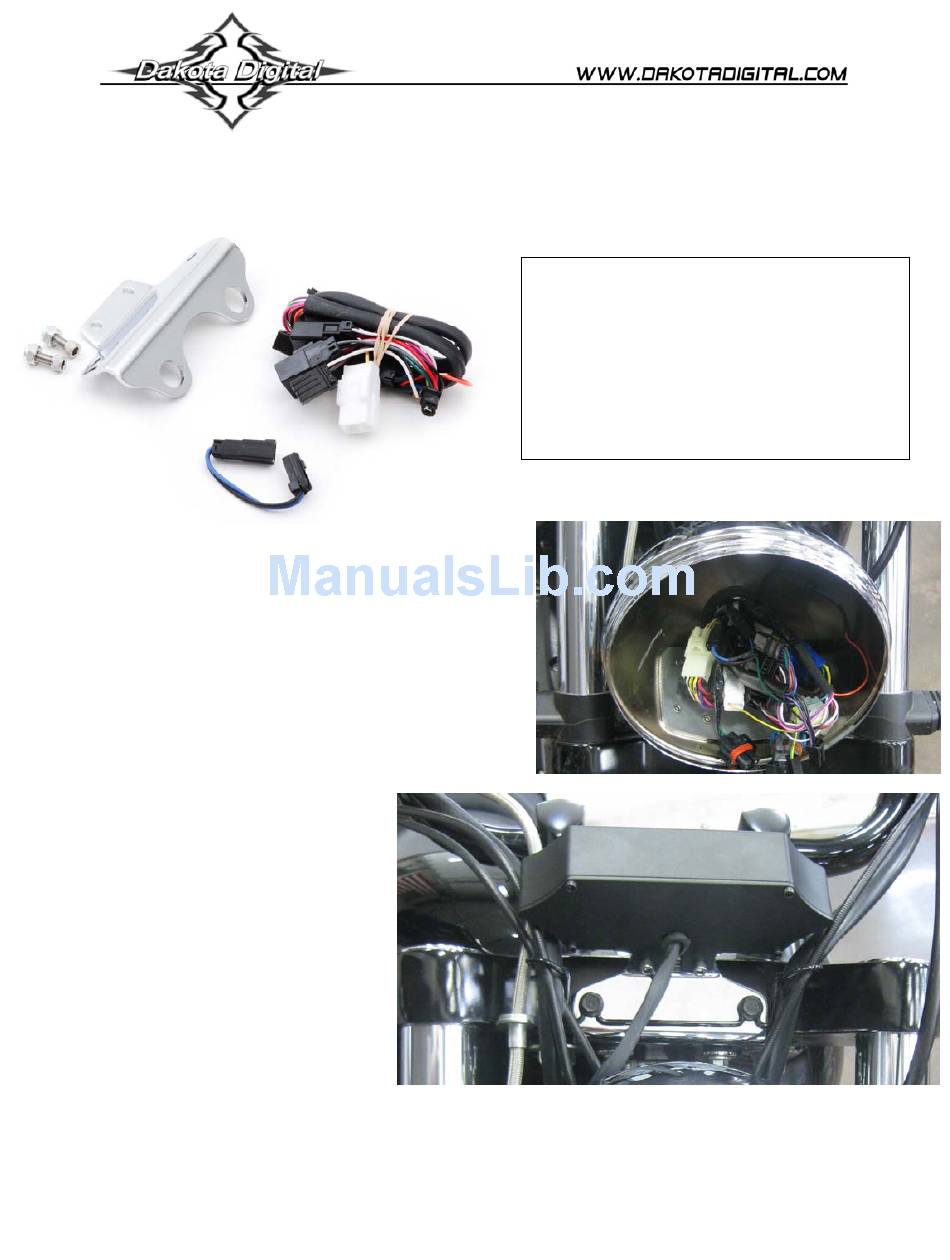

Removing the original gauge:
Remove the headlight retaining ring and the headlight
to expose the wiring harness.
Unplug white 4-pin connector and remove the original
speedometer wiring harness.
Remove the stock speedometer and the speedometer
mounting bracket. There are two bolts on the front and
two bolts on the bottom.
Unplug the two black 4 pin connectors to the original
indicator panel.
Installing the new gauge:
Using the four original bolts and
spacers, attach the new mounting
bracket.
Remove the back plate from the MCL-
5000 or MCV-7000 Dakota Digital
gauge and plug in the supplied wire
harness.
Replace the back plate on the gauge.
Attach the gauge to the new bracket
using the supplied socket head screws
and nuts.
Route the new gauge harness into the
headlight bucket.

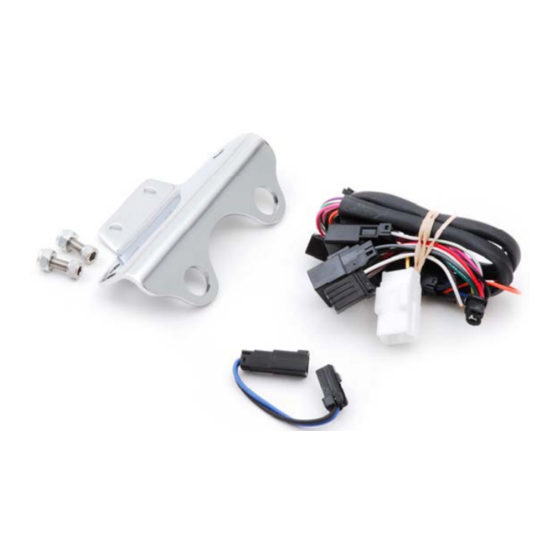

Kit includes:
(1) Wiring harness
(1) Turn signal cross-over harness
(1) Mounting bracket
(2) Socket head screws with nuts
Manual #650372
