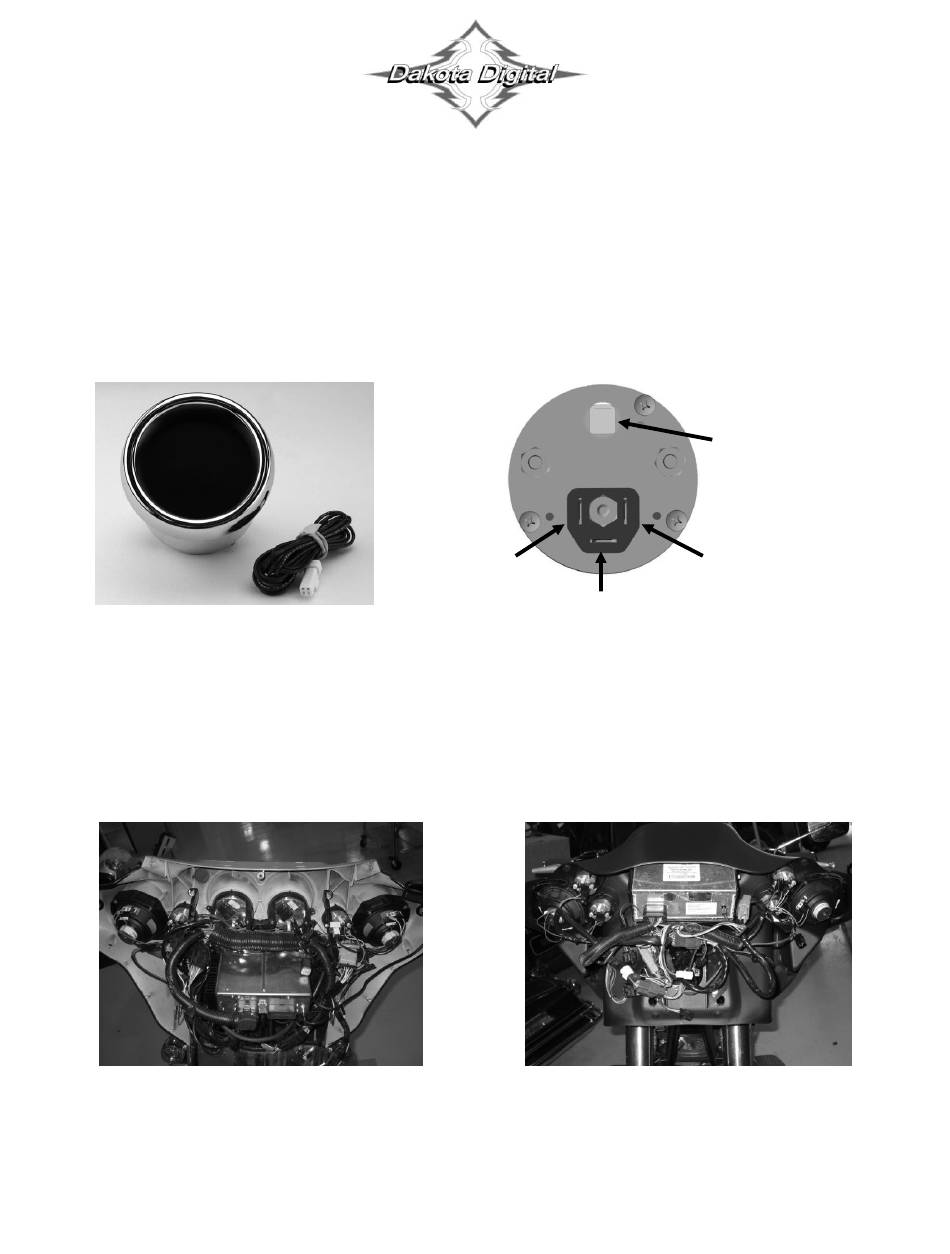

Thank you for purchasing the Dakota Digital MCL-3K-OIL gauge for your Harley Davidson Touring bike.
This gauge is designed to be a direct, plug in replacement for all touring models from 1996 and up. This
is part of a six gauge package for touring models so you can add additional gauges as you choose.
The MCL-3K-OIL gauge can be set for two stock Harley pressure senders, '96-'98 and '99-up
model years. There is a display update setting for how fast the numbers will change, as well as a user
settable low and high pressure warning points. When a warning condition is reached, the gauge will
flash the reading as a warning indicator. For higher pressure and more accurate pressure readings, one

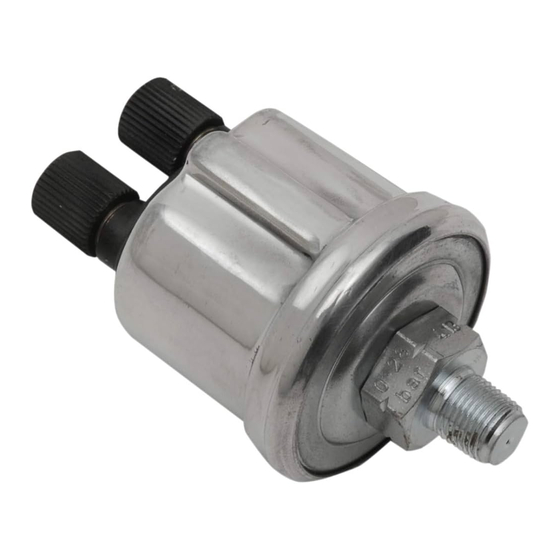

of two Dakota Digital senders may be used: 0-75 psi SEN-1032, or 0-150 psi SEN-1031.
***Please read SETUP section to select correct pressure sensor for you application.
INSTALLATION
First read and familiarize yourself with all of the components and this manual. The first step is to
remove the seat and disconnect the negative side of the battery, as with any electronic install. Once the
battery is disconnected you are ready to start.
REMOVAL OF FACTORY GAUGES
Remove the outer fairing; this will vary from model to model, please follow the service manual to
expose the wiring and gauges. Don't be alarmed by the amount of wires behind the fairing, this is a
direct plug in kit and these detailed instructions will guide you through it.
Pic of street glide with outer fairing removed
All of the small gauges, fuel, volts, oil, and air temp have two plugs. One is for illumination the
other is for the gauge power, ground, and sensor signal. The illumination harness, two pins (orange and
MCL-3000 SERIES OIL PRESSURE
PART# MCL-3K-OIL
POWER
(+12V Key ON)
SENDER
(This terminal connects to the
stock pressure sensor or wires to
GROUND
appropriate DAKOTA DIGITAL
sensor)
Pic of road glide with outer fairing removed
SWITCH/DIM PLUG
GREEN - Switch +12V
BLUE - Dim +12V
Manual # 650338
Advertisement
Table of Contents
Related Manuals for Dakota Digital MCL-3K-OIL
Summary of Contents for Dakota Digital MCL-3K-OIL
- Page 1 MCL-3000 SERIES OIL PRESSURE PART# MCL-3K-OIL Thank you for purchasing the Dakota Digital MCL-3K-OIL gauge for your Harley Davidson Touring bike. This gauge is designed to be a direct, plug in replacement for all touring models from 1996 and up. This is part of a six gauge package for touring models so you can add additional gauges as you choose.
- Page 2 The three pin connector from the stock gauge will be used to connect the new Dakota Digital MCL-3K gauge. Unplug connectors at the back of the gauge, then remove the two 5/16” nuts holding the clamps onto each small gauge and remove the gauges.
- Page 3 The GREEN switch input wire, in the two pin connector, is used to enter setup. If you are only installing one or a couple Dakota Digital MCL-3K gauges set up may seem a little strange since they are designed to work as a set, however you’ll simply cycle through a few screens to get to the desired gauge.
- Page 4 Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
