8. Create two ranges using the middle eyedropper button.
Using the
shown in the figure below. Then choose the Fit Preview command in the View
menu. The preview area will be shown with the maximum possible magnification
level.

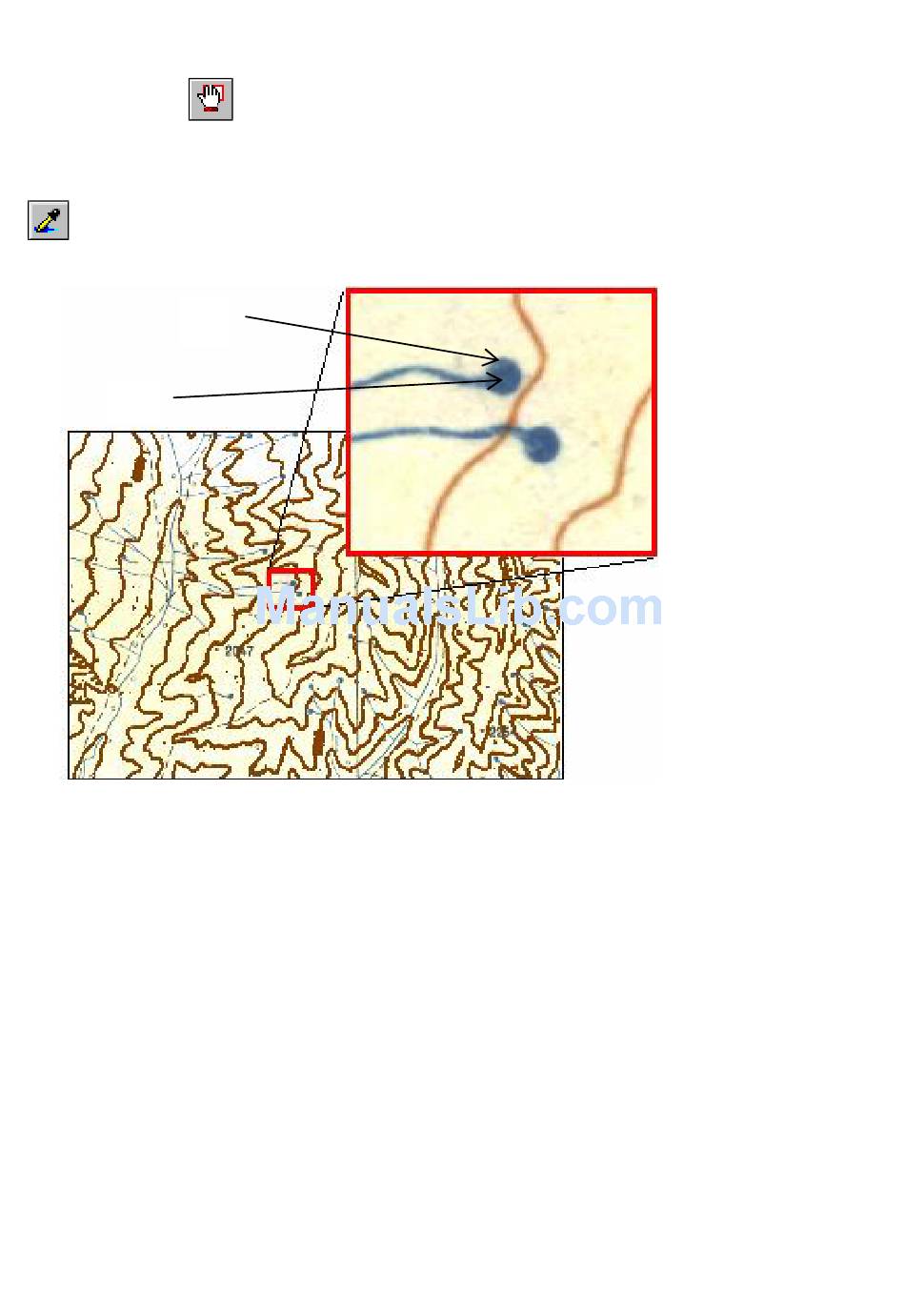

Click the button in the Colors box and specify a point in the middle of the top of
the circle (1 in the figure below). Then specify a point on the edge of the circle
(2 in the figure below).
1
2
The preview area position in the image
9. Use the procedure described in step 5 to preview the result of the operation.
10. When you are satisfied with the preview binarization results, run the procedure
clicking the Apply button.
As a result of binarization a new layer named "Rivers" is created, where the
monochrome image MAP2_2 is placed.
11. Close the Binarization dialog box by clicking the Close button.
Saving "Rivers" layer separate raster file
1. Turn off the visibility of the layers "0" and "Isolines" using the list in the
AutoCAD toolbar.
Now there is only one available image in the drawing, and we do not have to
select an image to save.
2. Choose Save As in rFile menu. In the dialog box specify a name and a type of
the raster file, for example "RIVERS" and "*.TIF". Choose a drive and directory
to save the file. Click the Save button.
button, place the preview area in the central part of the images
7 Binarization and Color Separation
101
