Dear Customer,
Thank you for choosing a HANNA product.
This sheet will provide you with the necessary information for a correct
operation. Please read it carefully before using the holder.
If you need additional technical information, do not hesitate to e-mail us
at tech@hannainst.com.
Examine carefully the holder and if any damage has occurred during
shipment, immediately notify your Dealer or the nearest Hanna Cus-
tomer Service Center.

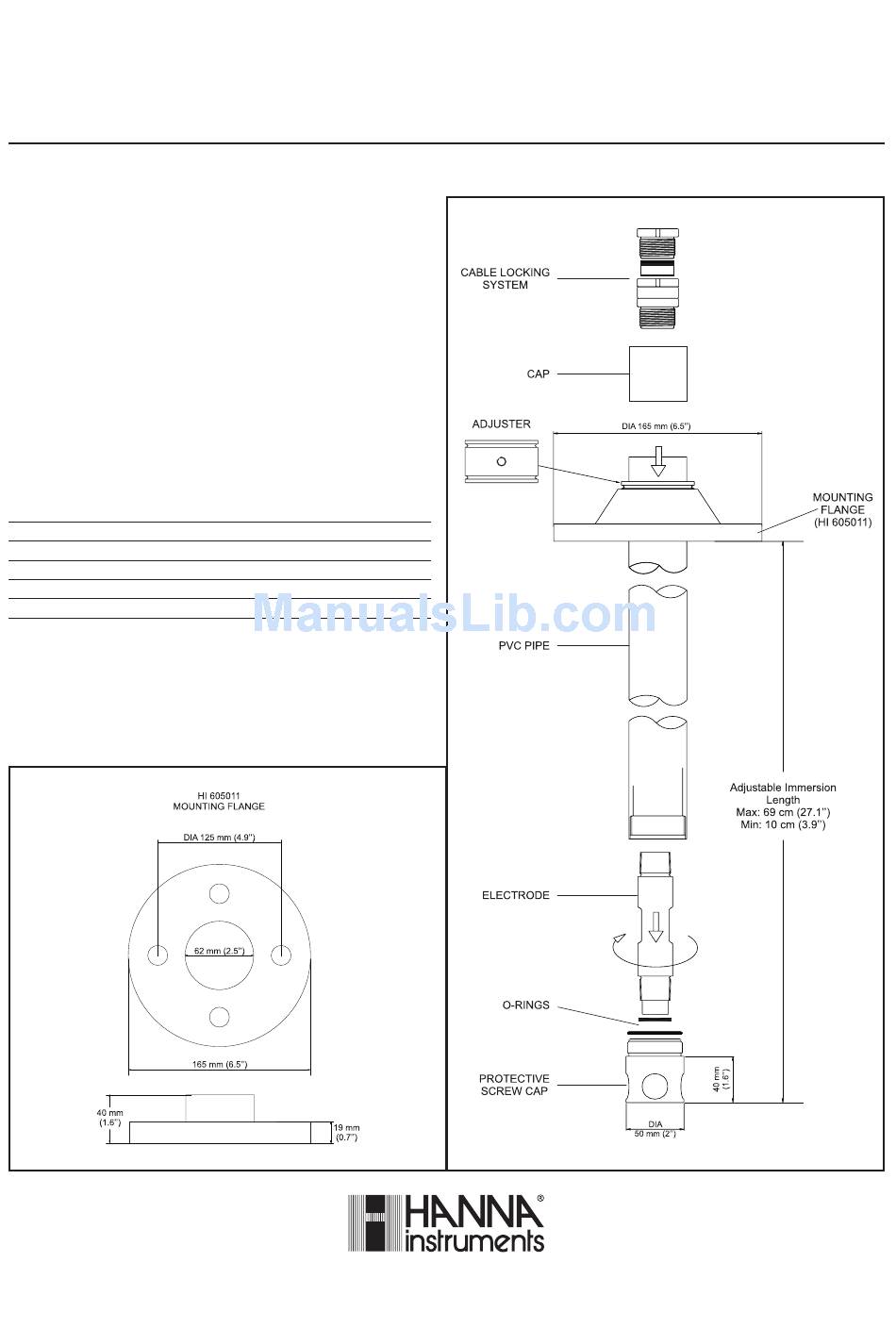

These adjustable length holders for pH and ORP electrodes, have been
designed for immersion applications.
Simply adjust the flange (HI 605011) to the required length and install.
These holders have been specifically designed to be used with HANNA
3/4'' process pH and ORP electrodes with built-in temperature sensor
and matching pin.
SPECIFICATIONS
Electrode Holder Material
O-Ring Material
Min. Immersion Length
Max. Immersion Length
Operating Temperature
-10 to 60°C (14 to 140°F)
ACCESSORIES
HI 605011
PVC mounting flange (required
HI 60501-0
1 set of O-rings
HI 60501 • HI 60503
IMMERSION ELECTRODE HOLDERS
For Tanks, Vessels, Baths and Open Channels
HI 60501
HI 60503
PVC
PVDF
NBR (Buna N)
10 cm (3.9'')
69 cm (27.1'')
-15 to 100°C (5 to 212°F)
w w w . h a n n a i n s t . c o m
