Hanna Instruments HI 6052 Instruction Manual

HI 6050 HI 6051 HI 6052

Dear Customer,

Thank you for choosing a Hanna product. This
sheet will provide you with the necessary in-
formation for a correct operation. Please read
it carefully before using the holder.
If you need additional technical information,
do not hesitate to e-mail
tech@hannainst.com.
Examine carefully the holder and if any dam-
age has occurred during shipment, immediately
notify your Dealer or the nearest Hanna Cus-
tomer Service Center.

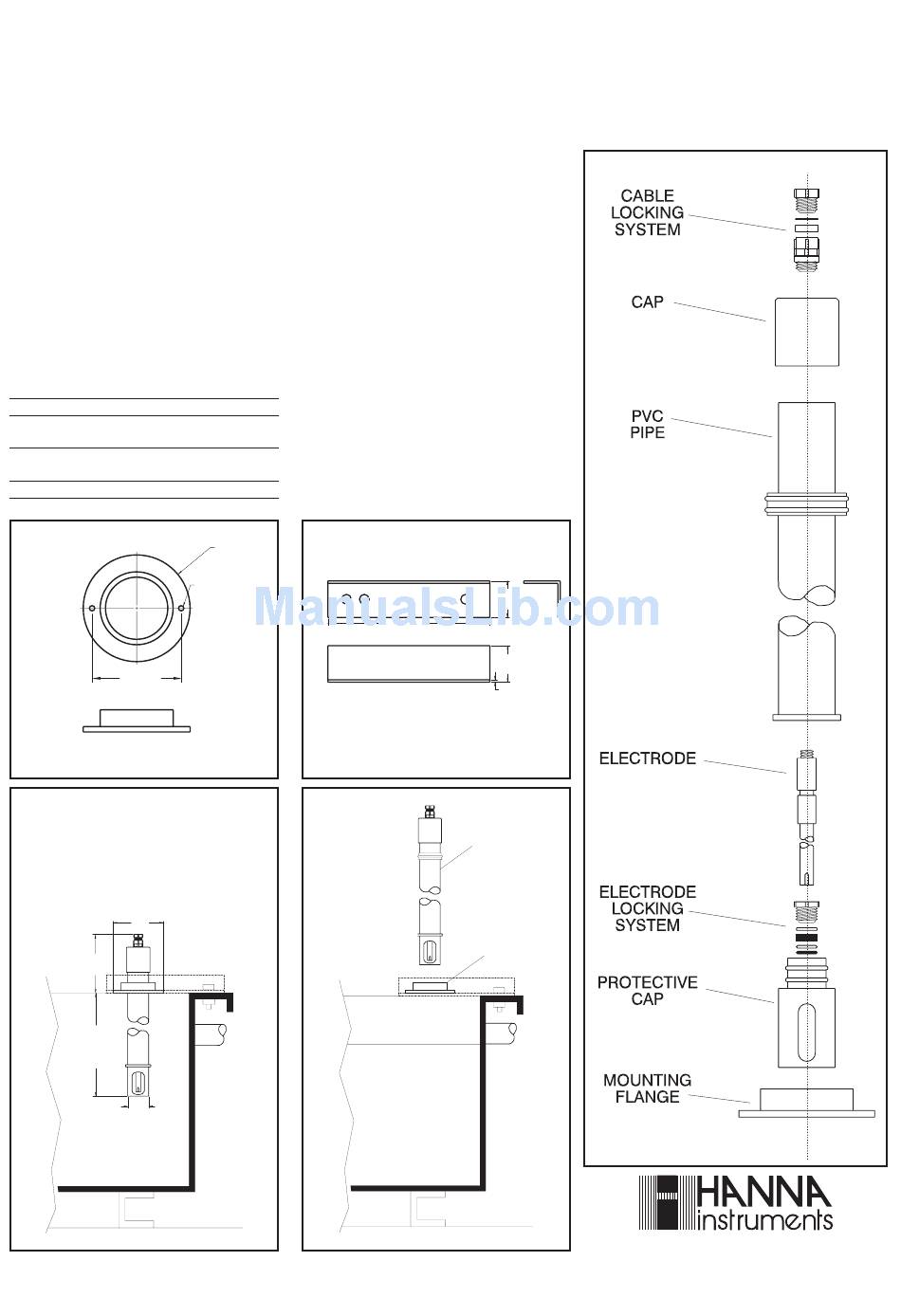

The Hanna submersible electrode holders
are available in three models:
HI 6050 HI 6051
TOTAL LENGTH 605 mm 1105 mm
(23.8") (43.5")
SUBMERSION LENGTH 475 mm 975 mm
(18.7") (38.4")
WEIGHT 0.8 kg (26 oz.) 1.2 kg (44 oz.) 1.7 kg (54 oz.)
FIGURE 1
100mm
3.94"
MOUNTING FLANGE FOR
ELECTRODE HOLDER
FIGURE 4
REMOVABLE ELECTRODE HOLDER CAN
SLIDE IN AND OUT OF MOUNTING
FLANGE WITHOUT NEEDING TOOLS.
DIA
120mm
4.75"
130mm
5.12"
475mm
19"
IMMERSION
LENGTH
DIA
50mm
2"
SUBMERSIBLE ELECTRODE HOLDERS
The mounting flange (FIG. 1) is a rugged PVC
piece that mounts directly to the stainless steel
bracket on your tank.
FIG. 2 illustrates the suggested bracket di-
mensions used for mounting. Once mounted,
the electrode holder becomes a protective
housing that will extend the life of your pH
us at
and ORP electrodes.
The electrode should be slid into the holder
(FIG. 3) and hand tightened. The cable from
the electrode will lead up through the holder
and out through the cap on top. The cable is
also shielded inside the holder to prevent any
damage to the insulation. The protective cap
is removable to allow for quick and simple
HI 6052
electrode maintenance and replacement (FIG.
1735 mm
4 and 5).
(68.3")
1605 mm
(73.4")
FIGURE 2 *
DIA
120mm
4.75"
MOUNTING
HOLES
SUGGESTED MOUNTING BRACKETS TO
MOUNT THE FLANGE (LEFT) ONTO THE TANK.
MATERIAL: STAINLESS STEEL (*not included).
FIGURE 5
LEVEL
45mm
1.77"
200mm
7.90"
45mm
1.77"
3mm
.12"
REMOVABLE
ELECTRODE
HOLDER
FIXED
FLANGE
FIGURE 3
w w w . h a n n a i n s t . c o m
