QUICK REFERENCE GUIDE

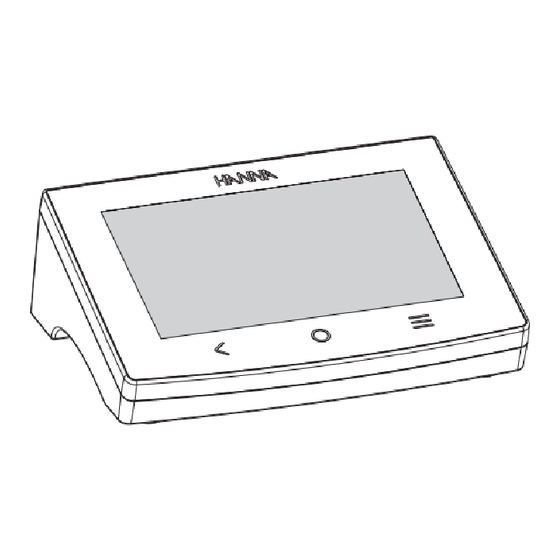

HI6542 preconfigured meter complete with pH / ORP / ISE and opdo
Dear Customer, thank you for choosing Hanna Instruments.
For more information about Hanna Instruments and our products, visit
www.hannainst.com or e-mail us at sales@hannainst.com. For technical
support, contact your local Hanna Instruments office or e-mail us at
tech@hannainst.com.
Please scan the QR code or use the link below to
download the user manual.
https://manuals.hannainst.com/HI6000
Package Contents
The HI6542 is a preconfigured meter supplied complete with:
• HI6000 housing unit
• HI6000-2 pH / ORP / ISE hardware module (installed)
• HI6000-4 DO hardware module (installed)
• HI1131B pH electrode
• HI7662-TW temperature probe
• HI7641133 optical DO probe
• pH 4.01 buffer solution, 2 sachets
• pH 7.01 buffer solution, 4 sachets
• pH 10.01 buffer solution, 2 sachets
• Electrode cleaning solution, 2 sachets
• pH & ORP electrode storage solution (25 mL)
• 3.5M KCl electrolyte solution (30 mL)
• Capillary pipette, 1 piece
• DO Smart Cap with O-ring, 1 pc. of each
• Calibration / storage vessel, 1 piece
• Lens cleaning wipe, 1 piece
• Syringe and sachet with
silicone grease, 1 piece of each
• Electrode holder with base plate, screw,
cable holder clip (requires mounting)
• 24 VDC power adapter
• USB-C to USB-A cable
• Meter quick reference guide
• Hardware modules quick reference guides and quality certificates
• Smart Cap, probes, and meter quality certificates
Key Features
• User profiles configuration for quick and direct measurement
• Log files can be transferred to a USB flash drive
• Ethernet and Wi-Fi network data sharing options
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com
®
Hardware flexibility
Four hardware modules are available and up to three modules can
be installed at the same time. Hardware modules and preconfigured
meters can be ordered from your local sales office.
Module Parameter
HI6000-1 pH / ORP
HI6000-2 pH/ ORP / ISE
HI6000-3 Conductivity
HI6000-4 Dissolved Oxygen
Getting Started
A. Place the meter face down and attach the electrode holder base
plate (1).
B. Connect the electrodes, external stirrers (magnetic or overhead), and
power adapter to rear panel of the meter.
DIN connector port › dissolved oxygen probe
BNC connector port › pH/ ORP/ISE electrode
RCA connector port › temperature probe
Reference electrode port
Right stirrer port
Left stirrer port
Extension port
C. Connect the power plug and press the black ON/OFF power button (2).
Notes: Remove the transparent film that protects the capacitive touchscreen
prior to operating the meter. Keep empty modules locations protected (3).
2
kit
Method-Specific Applications
–
Incremental Methods for ISE applications
USP <645>
Oxygen Uptake Rate (OUR)
Specific Oxygen Uptake Rate (SOUR)
Biological Oxygen Demand (BOD)
1
3
