Hanna Instruments HI6321 Quick Reference Manual

Dear Customer, thank you for choosing Hanna Instruments.
Package contents
• HI6321
• HI7631233 four-ring conductivity probe
• 1413 μS/cm conductivity standard solution (4 sachets)
• 5000 μS/cm conductivity standard solution (2 sachets)
• 12880 μS/cm conductivity standard solution (2 sachets)
• Electrode rinse solution (2 sachets)
20 mL 20 mL
HI70031 HI70031 HI70039 HI70039
1413 1413 5000 5000
μS/cm μS/cm μS/cm μS/cm
Conductivity Standard Conductivity Standard Conductivity Standard Conductivity Standard
±5 μS/cm @ 25 °C (77 °F) ±5 μS/cm @ 25 °C (77 °F) ±20 μS/cm @ 25 °C (77 °F) ±20 μS/cm @ 25 °C (77 °F)
Traceable to NIST Standard reference material Traceable to NIST Standard reference material Traceable to NIST Standard reference material Traceable to NIST Standard reference material
For laboratory and industrial use only. For laboratory and industrial use only. For laboratory and industrial use only. For laboratory and industrial use only.
Store at room temperature. Store at room temperature. Store at room temperature. Store at room temperature.
• Electrode arm with base plate and screws (mounting)
• 24 VDC power adapter and USB-C to USB-A cable
• Probe quality certificate, instrument quality certificate,
quick reference guide
Hanna is committed to developing and deploying digital
®
solutions with a positive impact on the environment and climate.
Please scan the QR code or follow the link
to download the user manual.
https://manuals.hannainst.com/HI6321
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
Electrode Electrode
Rinse Rinse
Solution Solution
20 mL
HI70030 HI70030
12880 12880 HI70000 HI70000
μS/cm μS/cm
~20 mL @ 25 °C / 77 °F
Conductivity Standard Conductivity Standard
±50 μS/cm @ 25 °C (77 °F) ±50 μS/cm @ 25 °C (77 °F)
Traceable to NIST Standard reference material Traceable to NIST Standard reference material
For laboratory and industrial use only. For laboratory and industrial use only.
Store at room temperature. Store at room temperature.
HI6321

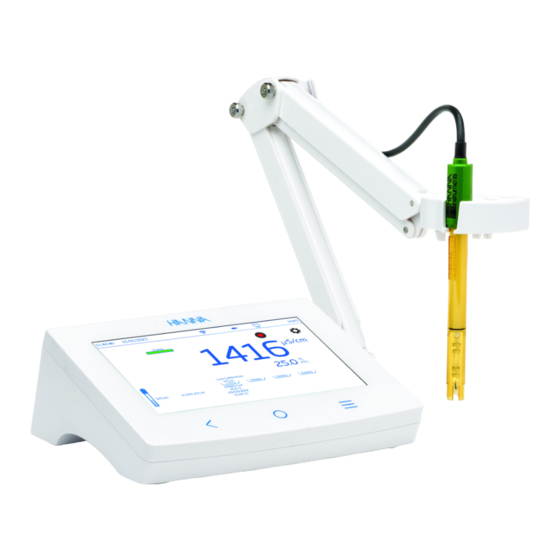

Advanced Conductivity Benchtop Meter
Getting started
Identify the base plate (1) – to be attached to the L or the R side –
and mounting screw (2) and proceed as illustrated here.
1
R
With the arm holder (3) in position and the probe (4) plugged in,
connect the power cable (5) and plug into the mains. Press the
ON/OFF button (6) to start.
Remove the transparent film that protects the capacitive touchscreen
prior to operating the meter.
3
6 5
Operating language & Access to support
• At first power on default operating language is English. Browse
the language window and select operating language from list of
supported options.
• To access support, tap
On first access the benchtop's name is used as default user name
and no password is required.
Device handling & Safety precautions
• Transport the unit with all cables removed.
• Do not puncture the capacitive touchscreen.
• Do not insert objects into the ports, spaces around keys other
than the intended cable, USB drive.
Quick Reference Guide
2
4
and select .
www.hannainst.com
L
