Peco T158 Installation Instructions

INSTALLATION INSTRUCTIONS
1. Install the T158 with the two furnished mounting screws to a
standard 4-11/16" x 2-1/8" square device box with a 2" x 4"
adapter ring.
2. For wall installations, mount the thermostat on an inside wall
approximately 5 feet above the floor.
provide circulation at average room temperature. Avoid direct
sunlight or sources of hot or cold air in the room or wall.
3. Remove the cover. Mount thermostat base assembly to the
outlet box using the screws provided, tighten the screws evenly
but do not over tighten.
appropriate wiring diagram for your thermostat style.
4. To use a remote sensor on units with local sensing capability,
remove jumper JP-1 to disable local sensing. Failure to remove
JP-1 will cause improper operation of the thermostat.
5. Remove the LCD plastic protective film. Reinstall the cover
assembly. Install the cover locking screw provided in the hole at
the left side of the control enclosure to complete the installation.
6. Checkout: After wiring and installation are complete, energize
the system and check the operation. Adjust the thermostat as
necessary to complete at least one cycle.
thermostat and all other equipment are functioning correctly.
Use copper wire only, insulate or wire nut all un-used
leads.
Care should be used to avoid electrostatic discharge to
the microprocessor.
This unit has configuration jumpers. You may need to re-
configure this thermostat for your application.
See page 2.
L1 (HOT)
1
LO
2
MED
3
HIGH
4
OR SINGLE SPEED FAN
24 VAC 1
5
24 VAC 2
6
SETBACK INPUT
7
MAIN 1
10
SEC 1
11
12
13
14
15
16
17
WIRING DIAGRAM FOR ON/OFF OUTPUT
CONFIGURATION
© COPYRIGHT 2005 PECO, INC. ALL RIGHTS RESERVED
The location should
Connect wires as shown in the
Be sure the
CAUTION
L2 OR NEUTRAL
FAN
MAIN 1
OUTPUT
SECONDARY
1 OUTPUT
REMOTE PROBE
PIPE SENSOR

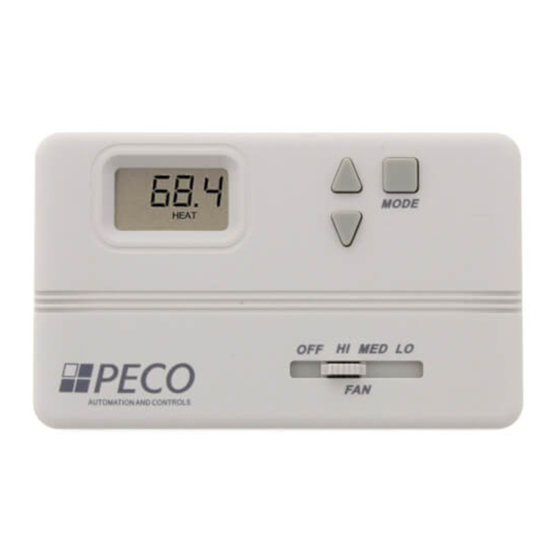

MICROPROCESSOR THERMOSTAT
WARNING
READ THESE INSTRUCTIONS CAREFULLY BEFORE
ATTEMPTING TO INSTALL, OPERATE OR SERVICE
THIS THERMOSTAT.
Failure to observe safety information and comply with
instructions could result in PERSONAL INJURY, DEATH
AND/OR PROPERTY DAMAGE.
To avoid electrical shock or damage to equipment,
disconnect power before installing or servicing.
To avoid potential fire and/ or explosion do not use in
potentially flammable or explosive atmospheres.
Retain these instructions for future reference.
product, when installed, will be part of an engineered
system whose specifications and performance
characteristics are not designed or controlled by PECO.
You must review your application and national and local
codes to assure that your installation will be functional and
safe.
FAN AND SYSTEM SWITCHES
VOLTAGE
INDUCTIVE
RATING
LRA
FLA
24 VAC NA NA
120 VAC 5.8 34.8
240 VAC 2.9 17.4
277 VAC 2.4 14.4
OUTPUT
24 VAC
XFMR
MAIN 1
(Terminal 10)
MAIN 2
(Terminal 12)
SECONDARY
1
(Terminal 11)
SECONDARY
2
(Terminal 13)
* Operation is determined by configuration. See Dip Switch Configuration Table.
TA158
On/Off Controller
THERMOSTATIC
SWITCHING
RESISTIVE PILOT
(Pilot Duty)
AMPS DUTY
NA 24 VA
6.0 125 VA
5.0 125 VA
4.2 125 VA
TA158 OPERATION
ON - OFF
Off With Demand On With Demand
Off at On at
Temperature Temperature
Demand Demand
N/A N/A
Summer: Off With Summer: On With
Heat Demand Heat Demand
Winter: Disabled Winter: Disabled
N/A N/A
P/N 68837 3220-1470 Rev 0 Page 1
This
10 VA
N.A.
N.A.
N.A.
