Connecting a 10Base-T LAN
The 10Base-T LAN connection may be to a hub or a wall mounted
LAN connection box. Follow the appropriate instructions below.
Connecting to an OfficeConnect Hub

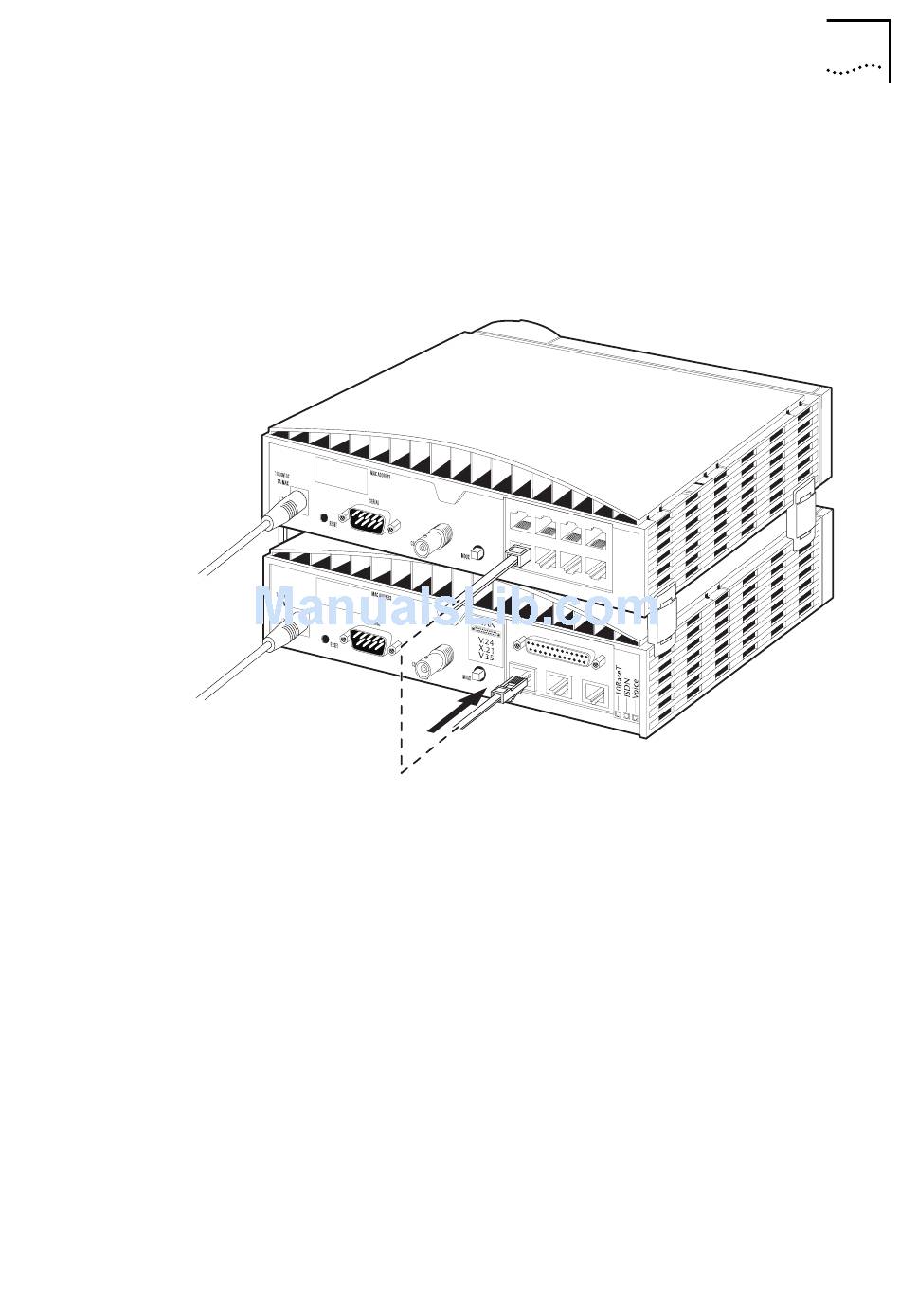

Figure 2-12 Connecting an OfficeConnect Hub
1 Connect a UTP cable (not supplied) to the 10Base-T port of the
OfficeConnect Remote.
2 Connect the other end of the cable to a 10Base-T port on the hub
(Figure
2-12).
Cabling Up the OfficeConnect Remote
2-11
