Convenience Ports

If you want to connect another device (such as a modem or fax machine) to
the wall jack, you can use the jacks on the phone labeled AUX. These
convenience ports use Lines 3 and 4; a call picked up on Line 3 or 4 at
another extension may interrupt a fax, modem, or message transmission.

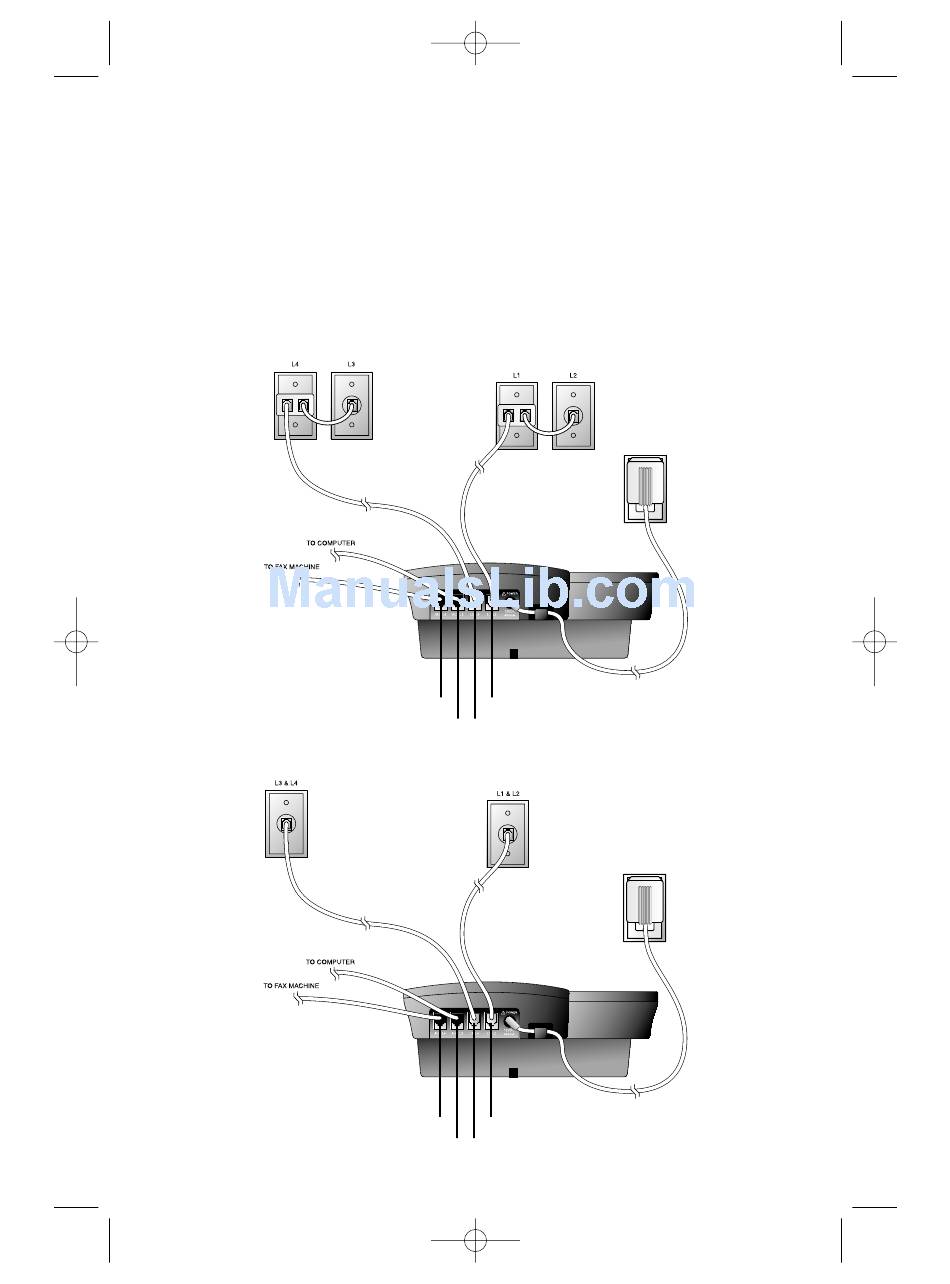

Four One-Line Jacks
•
Modular
Telephone
Jacks
Lines 3 and
4 with
Two-line
Adapter
Telephone Jack Aux L4
Telephone Jack Aux L3
• Two Two-Line Jacks
Telephone Jack Aux L4
Telephone Jack Aux L3
14
10/24/02 9:48 AM
Telephone Jack L3/L4
Modular
Telephone Jack
Lines 3 and 4
Telephone Jack L3/L4
Page 14
Modular Telephone Jacks
Lines 1 and 2 with
Two-line Adapter
Standard
Electrical
Outlet
Power Cord
Telephone Jack L1/L2
Modular
Telephone Jack
Lines 1 and 2
Standard
Electrical
Outlet
Power Cord
Telephone Jack L1/L2
