Table 1-3
Memory Configurations
DIMM1
DIMM2
64 MB
64 MB
128 MB
128 MB
128 MB
128 MB
128 MB
128 MB
128 MB
1.8.2

Installing a DIMM

To install a DIMM, align it with the socket and press it down until the
holding clips secure the DIMM in place.
The DIMM socket is slotted to ensure proper
installation. If you slip in a DIMM but it does
not completely fit, you may have inserted it
the wrong way. Reverse the orientation of
the DIMM.

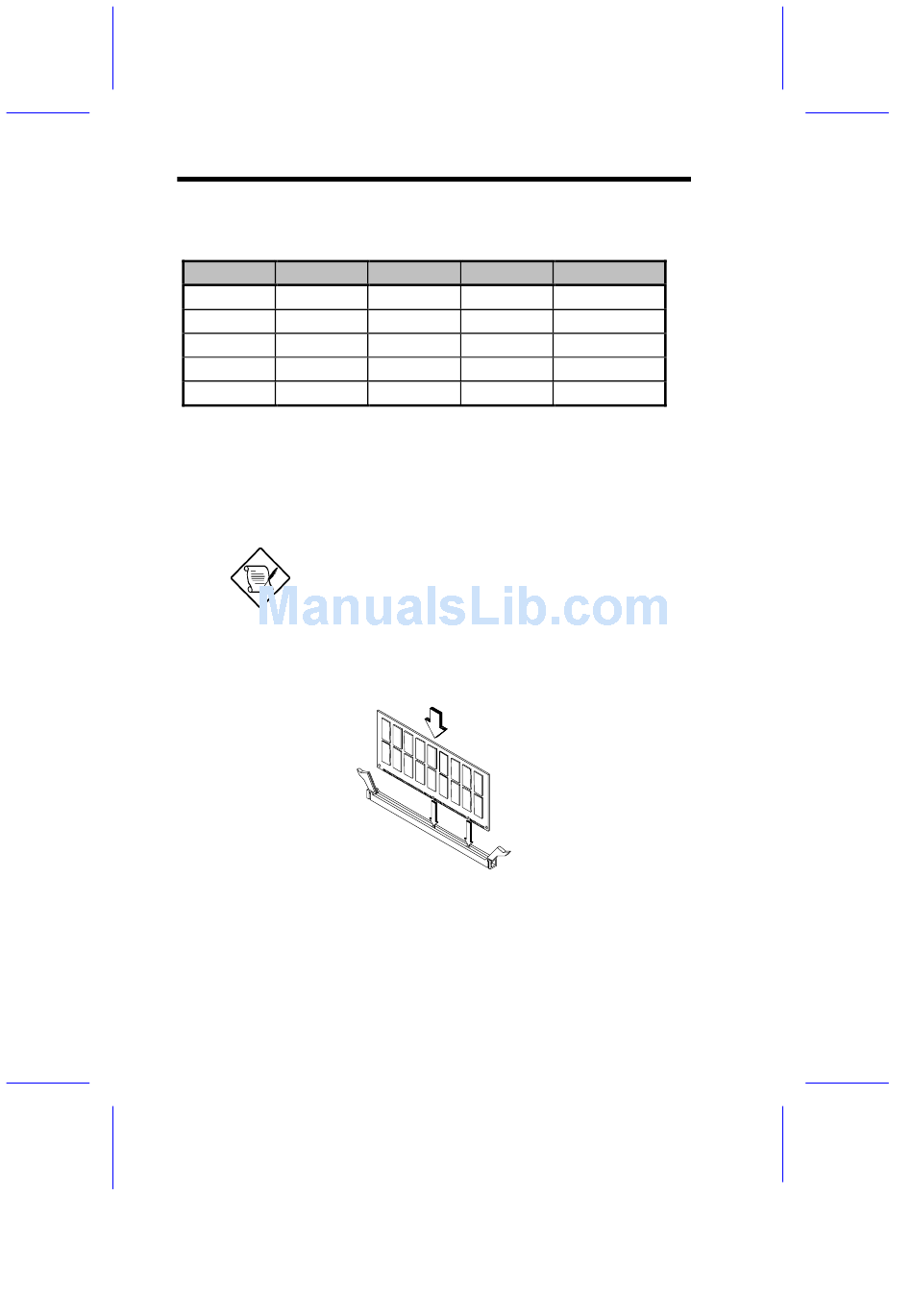

Figure 1-13

Installing a DIMM

1-18
DIMM3
DIMM4
64 MB
64 MB
128 MB
128 MB
128 MB
Total Memory
256 MB
128 MB
256 MB
384 MB
512 MB
User's Guide
