Installing the Termination Board
When you use only one slot on the CPU board, you must install a
termination board into the empty slot.
Follow these steps to install the termination board:
1.
Position the termination board over the empty slot.
2.
Carefully insert the golden fingers of the termination board into
the slot until the board fits completely.

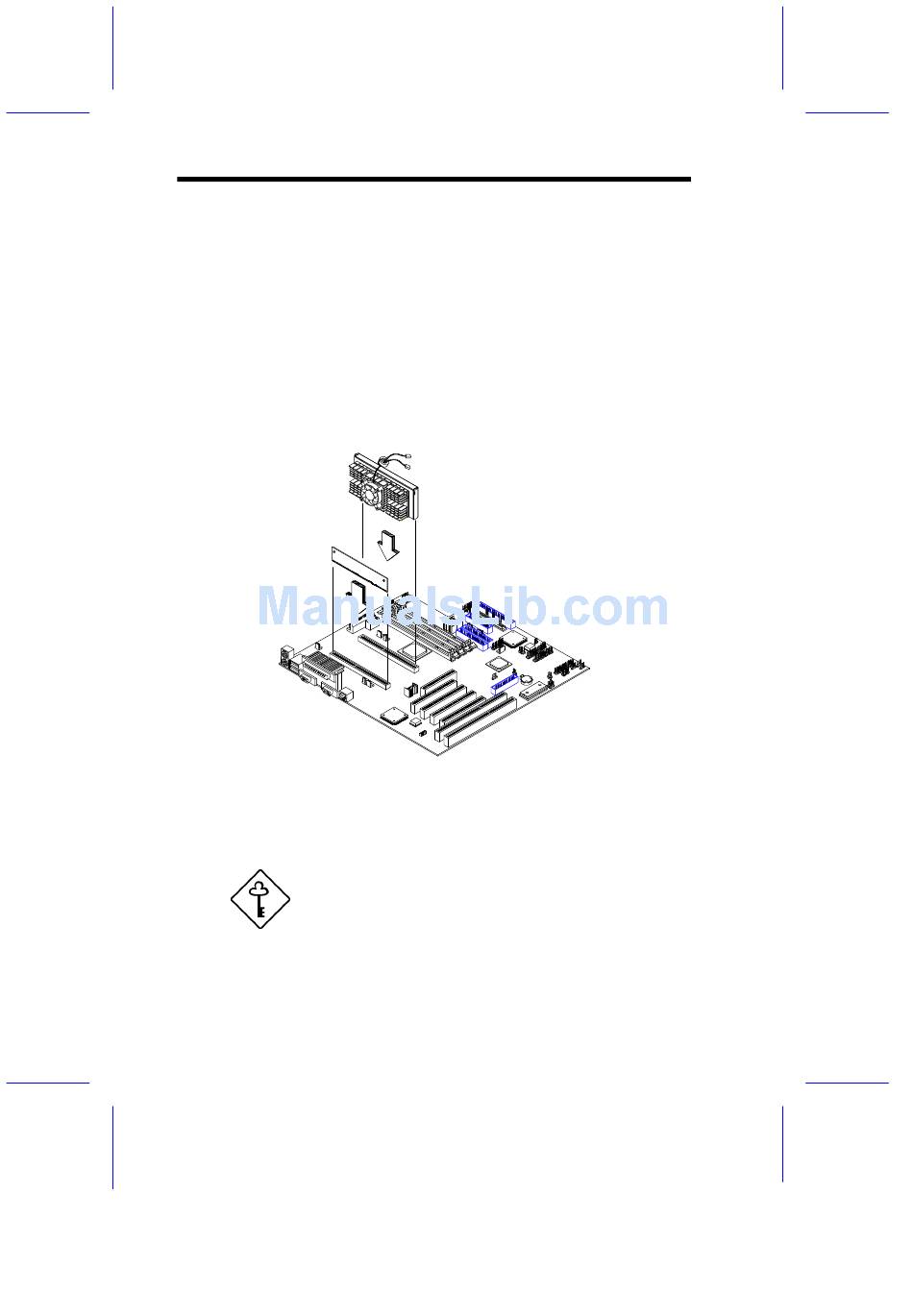

Figure 1-12
Installing the Termination Board
Do not forget to install the termination board
if you only have one processor.
