DSL-300 ADSL Ethernet Modem User's Guide

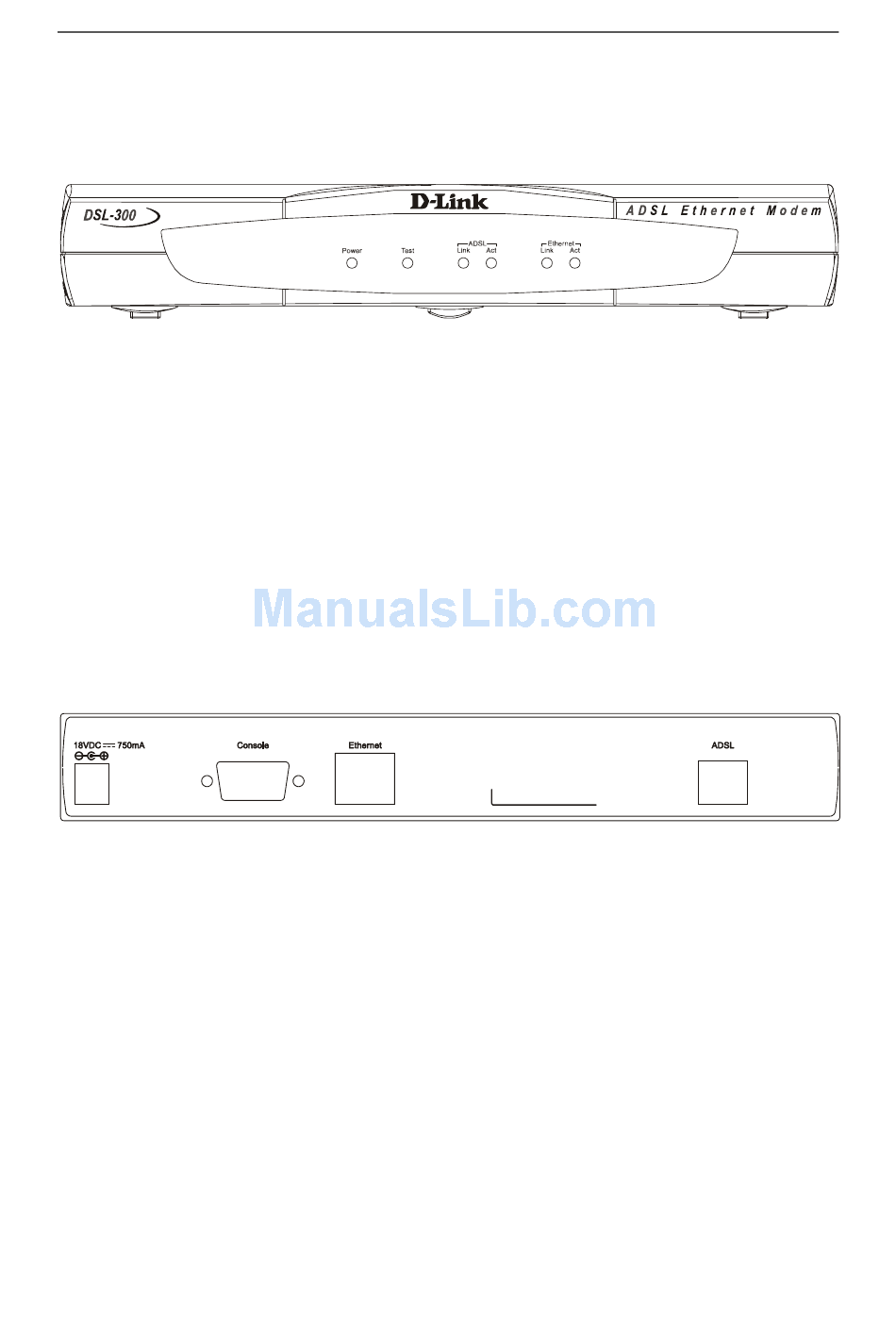

Front Panel

Place the Modem in a location that allows a view of the LED indicators shown in
the front panel diagram below.
Front Panel

Rear Panel

The rear panel of the Modem provides access to the power cord connection as well
as the various communication port connections.
Rear Panel
4
