DSL-300 ADSL Ethernet Modem User's Guide

Modem Diagnostics

The DSL-300 Configuration Utility can be used to monitor the activity and
performance of the Modem. The four status windows are read-only with the
exception of the General ADSL Information. Once you have set the VCI and VPI
values there should not be any need to change them. You can choose the interval
in which the statistics are refreshed from the pull-down menu on the bottom of
the window.

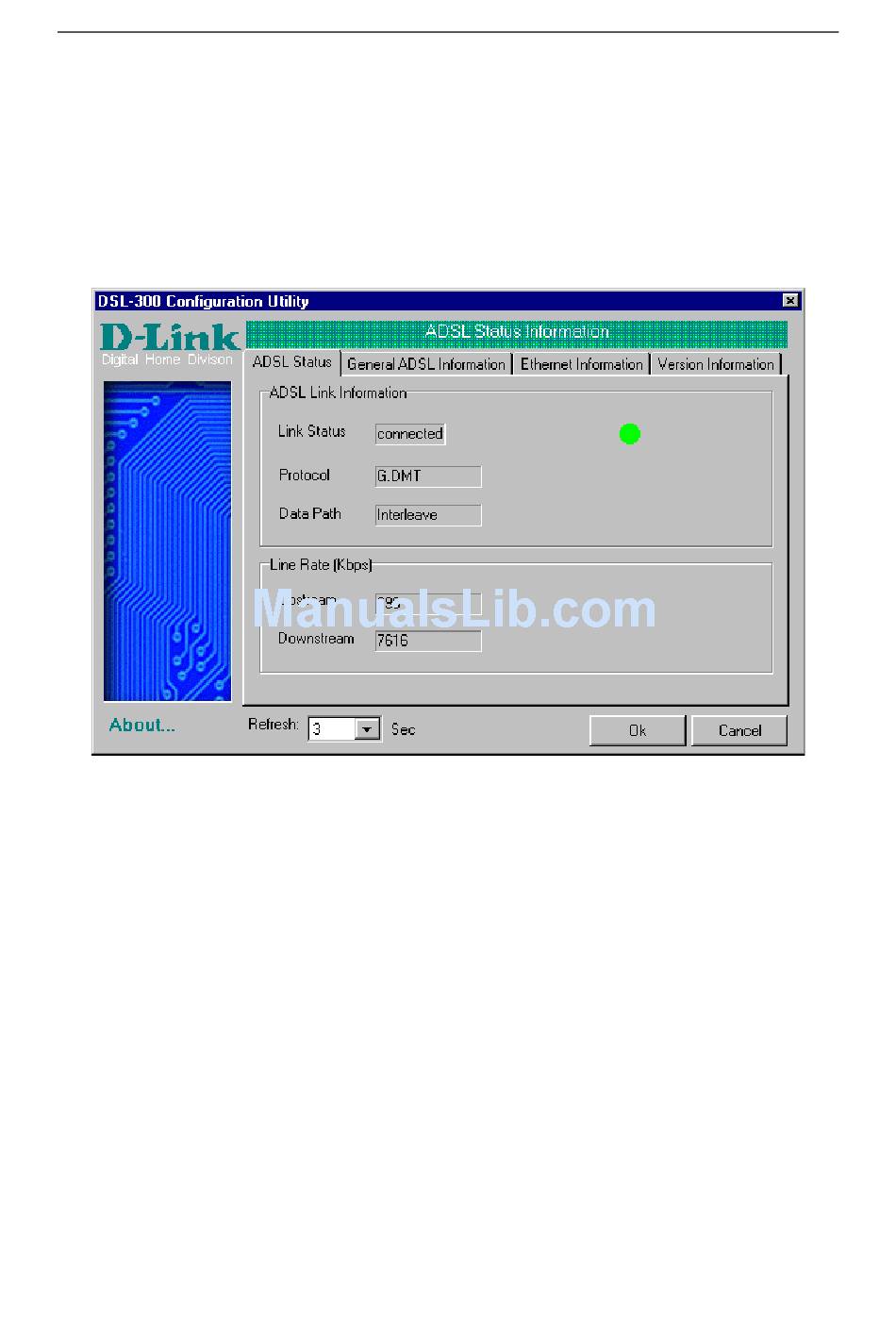

Clicking on the ADSL Status tab provides information about the status of the
ADSL link and the data. In this window you can view the following information:
♦ Link Status – current status of the ADSL link
♦ Protocol – ADSL protocol used to provide the connection
♦ Data Path – Fast or Interleave mode (depending on the DSLAM)
♦ Upstream - Displays upstream data bit rate in Kbps
♦ Downstream - Displays downstream data bit rate in Kbps
The lighted indicator indicates the connection status by its color.
♦ Red light – not connected
♦ Yellow/Black flashing light – connecting
♦ Green light - connected
