Before You Begin
This Quick Installation Guide gives you step-by-
step instructions for setting up your DWM-311
4G LTE M2M Modem. The model you have purchased
may appear slightly different from the one shown
in the illustrations. For more detailed information
about the modem, please refer to the User Manual.

Package Contents

This DWM-311 package should include the following
items:
• DWM-311
• USB AC Adaptor
• Mini-USB power cable
• 5.5 mm DC-to-Mini-USB adaptor
• RJ-45 cable
• [2] Interchangeable blade antennas
• [2] Magnetic antenna mounts
• Quick Installation Guide
If any of the above items are damaged or missing,
please contact your local D-Link reseller.

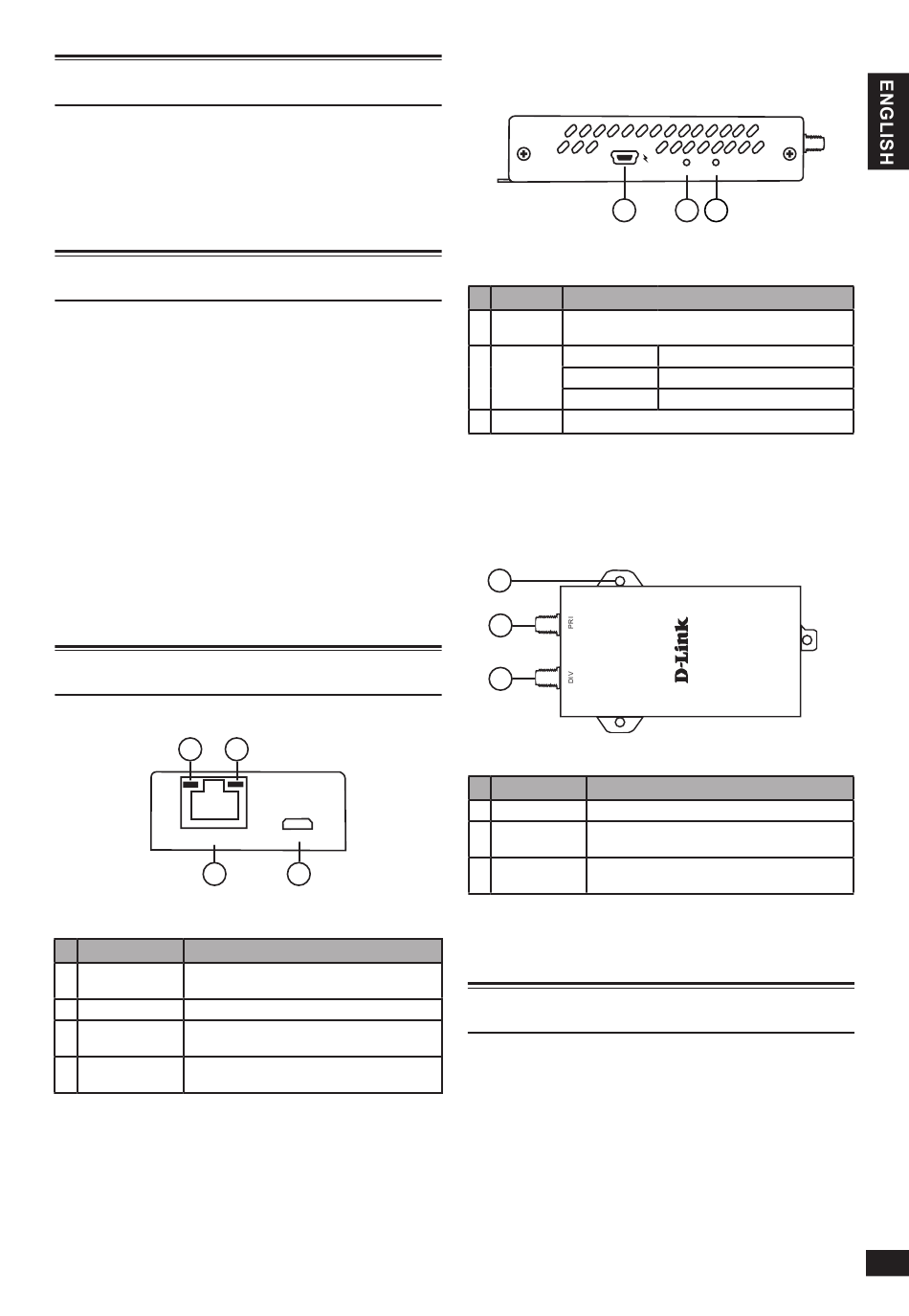

Hardware Overview

Front Panel

1
DATA1
3
Figure 1
# Item
1 Ethernet Activity Flashes yellow when there is Ethernet traffic.
2 Link Status Green light indicates there is an active link.
This is a standard 10/100 Mbps Ethernet port to
3 Ethernet Port
connect any device via Cat 5/5e/6 RJ-45 cables.
Micro-USB This is a micro-USB 2.0 port for connecting any
4
2.0 Port device via a standard micro-USB cable.
Table 1
2
DATA2
4
Description

Side Panel

1
Figure 2
# Item
Mini-USB The DWM-311 accepts power through a mini-USB
1
Power connector.
Solid green
2 Status LED Flashing
Off
Solid green indicates the modem is receiving power.
3 Power LED
Table 2
Top Panel
1
2
3
Figure 3
# Item
1 Wall Mounts Wall mounts for standard 8 gauge (4 mm) screws
SMA Connector SMA female connector - Primary antenna
2
1
PRI
SMA Connector SMA female connector - Antenna Diversity
3
DIV 1
Included antennas are interchangeable, but third party
1
antennas may not be.
Table 3

Hardware Installation

Before You Begin
Observe the following precautions to help prevent
shutdowns, equipment failures, and personal injury:
• Install the DWM-311 in a cool and dry place. Refer
to the technical specifications in the user manual
for the acceptable operating temperature and
humidity ranges.
• Install the modem in a site free from strong
STATUS PWR
2 3
Description
Indicates strong signa
Indicates weak signal
Indicates no signal
Description
