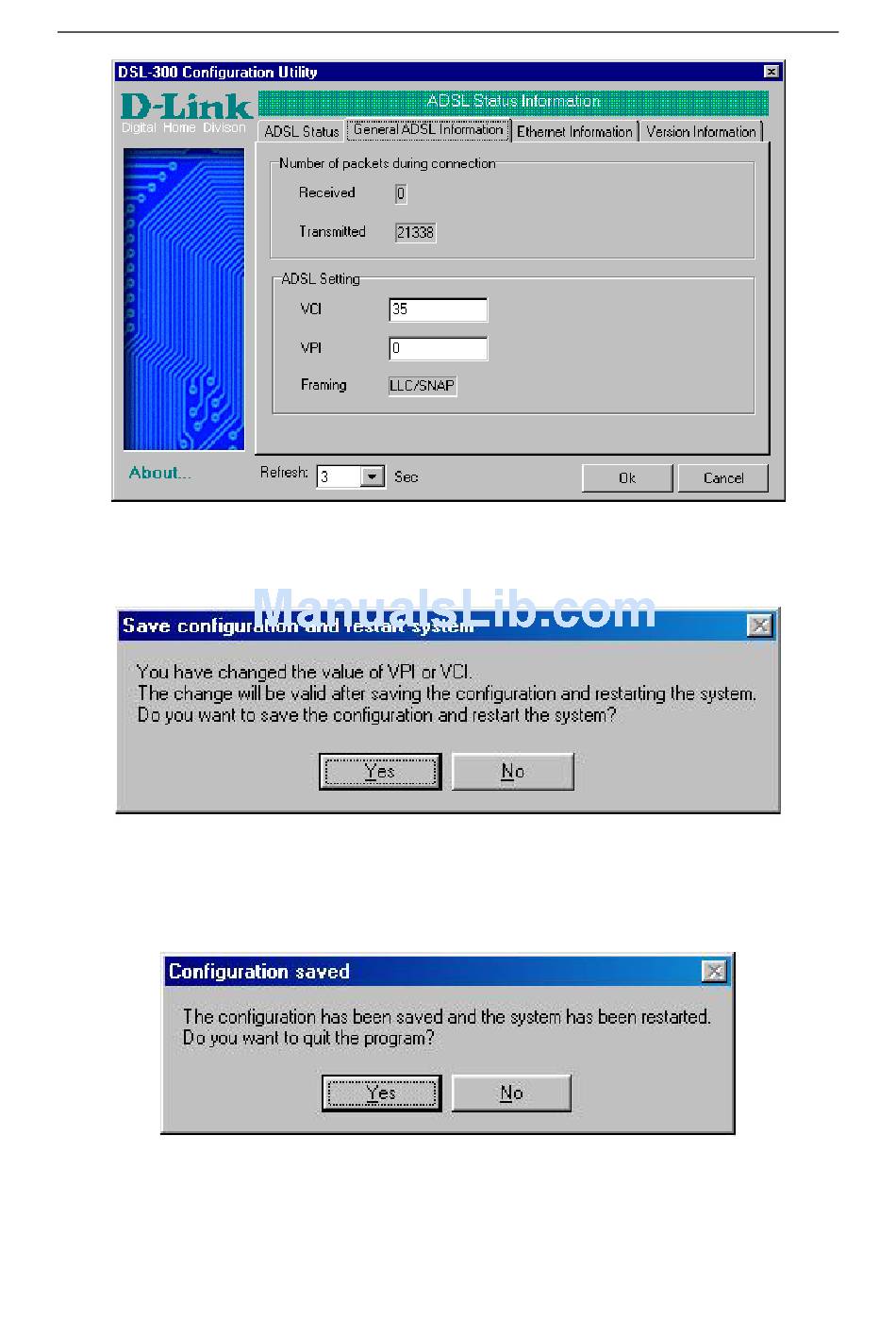

5. In the new window you must enter the VPI and VCI numbers (assigned to
you by your ADSL service provider). Type in these numbers in the ADSL
Setting field and click Finish.
6. The Save configuration and restart system window will appear. You will be
asked if you would like to save the changes you have made (the VPI and VCI
numbers) and restart the Modem. Click Yes if you have correctly entered the
necessary information.
7. The final window, Configuration saved, confirms that you have made changes
to the configuration of the Modem and restarted it. If you wish to quit DSL-
300 Configuration Utility, click Yes.
DSL-300 ADSL Ethernet Modem User's Guide
15
