Removing the Touchpad

Follow these steps to remove the touchpad:
1. Unplug the touchpad connector (CN5).
2. Pull up and remove the touchpad.

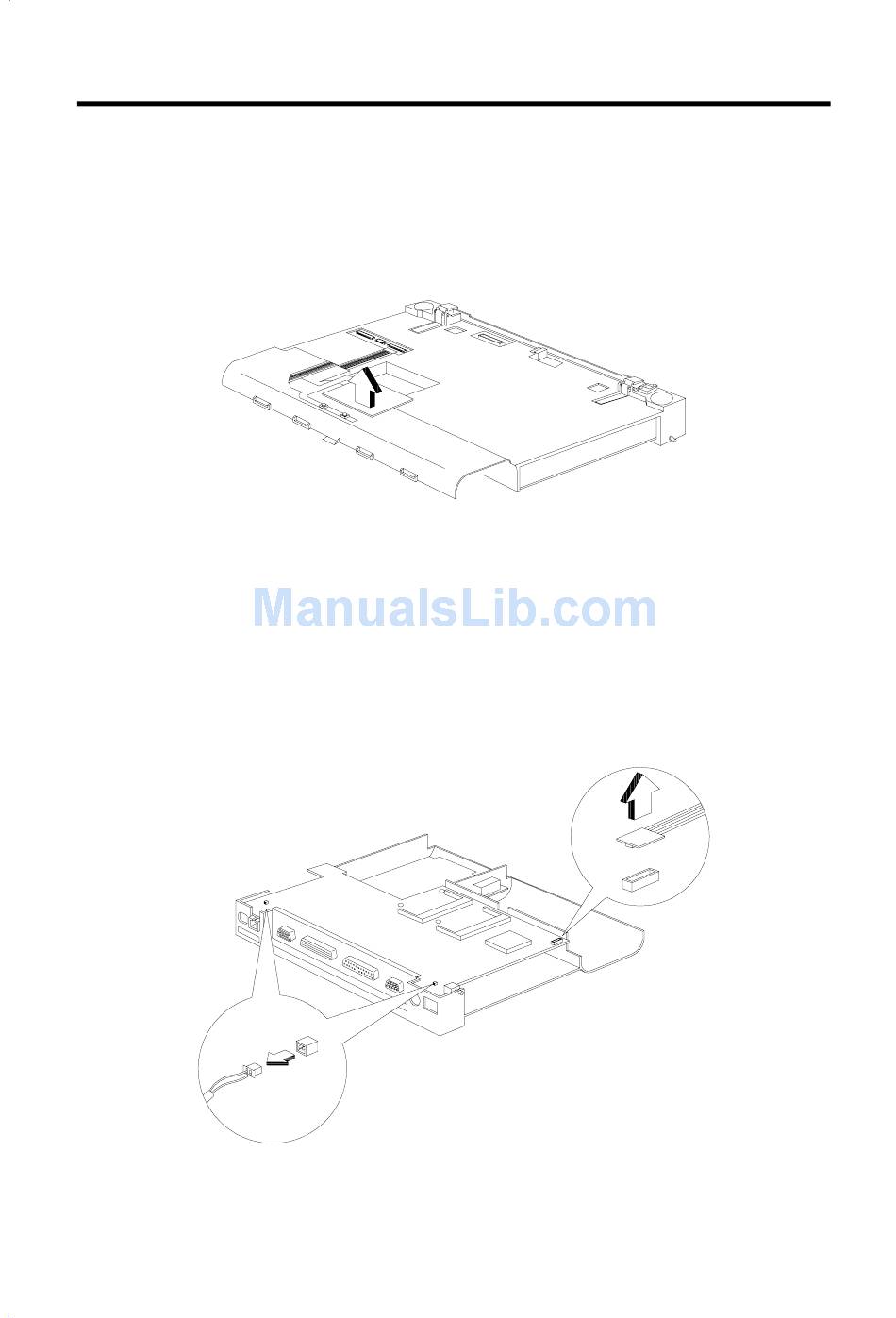

Figure 4-20 Removing the Touchpad
4.8.4

Removing the Main Board

Follow these steps to remove the main board from the inside assembly.
1. Unplug the speaker connectors (CN17 and CN23), and the battery pack connector (CN21).
Figure 4-21

Unplugging the Speaker Connectors and Battery Pack Connector

4-16 Service Guide
