COMPACT DISC PLAYER
C-7070
Instruction Manual
Thank you for purchasing an Onkyo product. Please read this
manual carefully before making any connections or using this
product. By following these instructions, you'll get the best audio
performance and the most listening pleasure from your Onkyo
product. Keep this manual for future reference.
Getting Started
............................En-
Connections
.............................. En-
Basic Operation
....................... En-
Disc Playback
........................... En-
Various Playback Modes
iPod / iPhone and USB
Playback
...................................... En-
Setup
............................................. En-
Miscellaneous
.......................... En-
2
13
15
16
21
..... En-
24
27
29
E
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-7070 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo C-7070

Summary of Contents for Onkyo C-7070

  • Page 1 ........En- Setup ..........En- Thank you for purchasing an Onkyo product. Please read this manual carefully before making any connections or using this product. By following these instructions, you’ll get the best audio performance and the most listening pleasure from your Onkyo product.

  • Page 2: Important Safety Instructions

    WARNING: WARNING AVIS RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE TO REDUCE THE RISK OF FIRE OR ELECTRIC DO NOT OPEN NE PAS OUVRIR SHOCK, DO NOT EXPOSE THIS APPARATUS The lightning flash with arrowhead symbol, within an TO RAIN OR MOISTURE. equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Precautions

    If water or any other liquid gets To prevent being exposed to the laser beam, do not try inside this unit, have it checked by your Onkyo to open the enclosure. dealer.

  • Page 4: Declaration Of Conformity

    LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY For Canadian Models declare in own responsibility, that the ONKYO product NOTE: THIS CLASS B DIGITAL APPARATUS described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, COMPLIES WITH CANADIAN ICES-003.

  • Page 5: Supplied Accessories

    • Aluminum die-casting tray with silent mechanism *1 DIDRC and the DIDRC logo are registered trademarks of • 1.6 mm thick anti-vibration full flat chassis Onkyo Corporation. • Solid aluminum front panel *2 iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod •...

  • Page 6: Table Of Contents

    Contents Important Safety Instructions.....................2 Precautions ..........................3 Supplied Accessories .........................5 Features............................5 Getting to Know the CD Player ....................7 Front Panel...............................7 Display ..............................8 Rear Panel ..............................8 Remote Controller............................9 Installing the Batteries ...........................10 Aiming the Remote Controller ......................10 Disc Notes ..........................11 Connecting the CD Player ......................13 Audio Connections ..........................13 Connections............................14 Connecting the Power Cord .....................14...

  • Page 7: Getting To Know The Cd Player

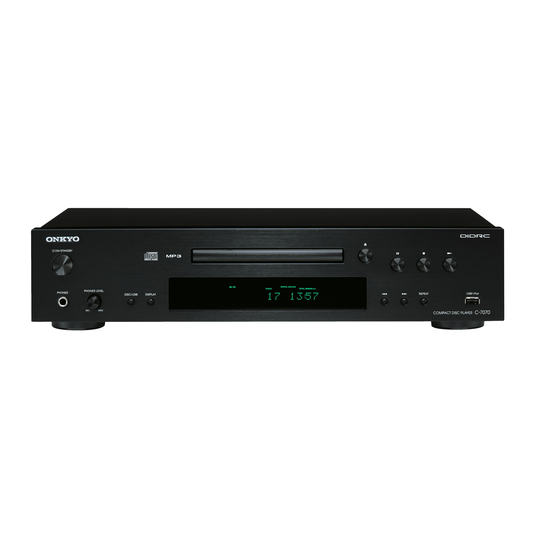

    Getting to Know the CD Player Front Panel  ON/STANDBY button (15) DISC/USB button (24, 25) Press to turn on or standby the C-7070. Press this button to select CD or USB. Disc tray (16) DISPLAY button (17, 20, 21) The CD is loaded here.

  • Page 8: Display

    These two digital audio outputs can be connected to audio cable. a digital audio input on an amplifier or recorder. REMOTE CONTROL jacks (14) These two identical (Remote Interactive) jacks can be connected to the  jacks on your other Onkyo components for interactive control.

  • Page 9: Remote Controller

    Use to clear any numbers that have been entered during numeric input. When making a memory setting, the selected track is erased. [] button (15) Press to turn on or standby the C-7070. DIMMER button (15) Press to adjust the display brightness. Pause [] button (16, 17)

  • Page 10: Installing The Batteries

    Getting to Know the CD Player—Continued Installing the Batteries Aiming the Remote Controller When you operate the remote controller, point it at the To open the battery compartment, press the CD Player’s remote control sensor, as shown below. small hollow and slide open the cover. Remote control sensor Insert two batteries (R03/AAA) into the Notes:...

  • Page 11: Disc Notes

    Disc Notes Precautions for Playback Playback of MP3 Discs Compact discs (CDs) with the following logo on the • Only MP3 files with the extension “.MP3” or “.mp3” label surface can be used. are supported. Do not use discs designed for purposes other than audio, •...
  • Page 12 Caring for Discs If the disc is dirty, the C-7070 will have a hard time read- ing signals, and the audio quality may drop. If the disc is dirty, gently wipe off fingerprints and dust with a soft cloth.

  • Page 13: Connecting The Cd Player

    Use red plugs to connect right-channel Note: audio inputs and outputs (typically labeled “R”). Use • Do not put anything on top of the C-7070, as it may white plugs to connect left-channel audio inputs and interfere with proper ventilation.

  • Page 14: Connections

    AV receiver, when you start playback on the • The C-7070 has two connectors. You can connect C-7070, the AV receiver will select the C-7070 as the either one to your Onkyo hi-fi amp or AV receiver. The input source.

  • Page 15: Basic Operation

    Basic Operation Notes: Turning On CD Player • If an iPod/iPhone is connected, ASb will not operate because the connected unit is being charged. ON/STANDBY • If playback is paused, the power will remain on even after 30 minutes have elapsed; the Auto Standby function will not operate.

  • Page 16: Disc Playback

    Disc Playback  Disc tray     /  Selecting Tracks Press the Open/Close [] button to open To return to the beginning of the track that’s currently the disc tray. playing or paused, press the Previous [] button. Place the CD on the tray with the label-side Press the Previous [] button repeatedly to select ear- facing up.

  • Page 17: Using The Remote Controller

    Disc Playback—Continued Using the Remote Controller [DISPLAY] Press repeatedly to display [] CD information Press to pause playback See below for details. [] Press to start playback []/[] Press to fast-forward or fast- []/[] reverse Press to select tracks During playback or while playback is •...

  • Page 18: Selecting Files (Mp3/Wma Cds)

    Disc Playback—Continued Selecting Files (MP3/WMA CDs) Selecting Files in Navigation Mode For MP3/WMA CDs, files (MP3/WMA files) may be In Navigation mode, you can select files by navigating organized in a hierarchy, with folders containing files through the folder hierarchy. This mode can only be used and subfolders, as shown below.

  • Page 19: Selecting Files In All Folder Mode

    Disc Playback—Continued Use the []/[] or []/[] buttons to select Press the [ENTER] or [] button. the files within the folder. Playback will start with the specified file or folder To select another folder, press the [] button again and continue until all of the files on the disc have (front panel: []), and then use the [/] been played.

  • Page 20: Displaying Mp3/Wma Information

    Disc Playback—Continued Artist name: Name of the artist (if ID3 tag is present). To select the previous folder, press the When there is no ID3 tag, “ARTIST-NO DATA” appears. Previous [] button. To select the next folder, press the Next [] button.

  • Page 21: Various Playback Modes

    Various Playback Modes You can select the following playback modes: Memory Playback (For Audio CDs) • Random playback In memory playback, you can create a playlist of up to • Memory playback 25 files. • Repeat playback Random Playback With random playback, all of the files on the disc are DISPLAY played in random order.

  • Page 22: Memory Playback (For Mp3/Wma Cds)

    Various Playback Modes—Continued ■ To Cancel Memory Playback Use the Previous and Next []/[] buttons • Stop playback, then press the [MEMORY] button to to select the first file you want to add to the change the playback mode. The MEMORY indicator playlist, and then press [ENTER] button.

  • Page 23: Repeat Playback

    Various Playback Modes—Continued Repeat Playback Use the []/[]/[] buttons to continue selecting other items for memory playback. In repeat playback, you can play an entire CD repeat- To move up a level, press the [] button. edly, play one track repeatedly, or combine it with mem- To continue selecting items for memory playback, ory playback to play the playlist repeatedly, or random repeat steps 4 and 5.

  • Page 24: Ipod / Iphone Playback

    • If the iPod/iPhone is connected while it is in the play mode, the iPod/iPhone playback might stop. • During playback on the iPod nano or iPod (5th gener- ation), “ONKYO” is displayed on the iPod display and the click wheel will be disabled. Note: When the playback stops, the “ONKYO”...

  • Page 25: Usb Playback

    USB Playback This section explains how to play music files on a USB flash drive. Connect a USB flash drive as shown below. DISPLAY USB/iPod SEARCH Note: Insert your USB flash drive. • When all music files of a USB flash drive have been played, playback will repeat from the top music file in the folder structure.

  • Page 26: Random Playback

    USB Playback—Continued Notes: • 1-Folder Repeat Playback: Repeats files in Folder. • See page 19 for “Selecting a Folder during Playback”. 1 FOLDER indicator appears. • Do not connect the CD player’s USB port to a USB port on your computer. Music on your computer can- not be played through the receiver in this way.

  • Page 27: Setup

    Setup Setup Procedure Common Settings The MP3/WMA preferences let you change the way Preferences MP3/WMA file information is displayed and the way Below, the name of each preference is followed by its MP3/WMA CDs are played. options in parentheses, with the default option in bold. ...

  • Page 28: Setting Mp3/Wma Preference

    Setup—Continued ❏ FILE NAME (Scroll/Not) ❏ CD EXTRA (Audio/MP3) This preference determines whether the file name scrolls This preference applies to CD Extra discs and across the display when an MP3/WMA file is selected. determines whether music in the audio session or MP3/ WMA files in the data session are played.

  • Page 29: Troubleshooting

    Can’t access the SETUP menu. • If any track has been selected even when the C-7070 is stopped, you must place it into the full stop state by pressing the [] button before you can view all the SETUP menus. However, settings can be made while USB is selected and...
  • Page 30 Relocate if necessary. • If the C-7070 is installed in a cabinet with colored glass doors, the remote controller may not work reliably when the doors are closed. Open the doors, or use a cabinet without colored glass.

  • Page 31: Specifications

    Specifications ■ Audio Outputs Frequency Response: 2 Hz – 20 kHz Digital Outputs: 1 (OPTICAL), 1 (COAXIAL) Audio Dynamic Range: 100 dB Analog Outputs: THD (Total Harmonic Distortion): 0.0025 % PHONES: 1 (ø 6.3 mm, 1/4 inch) Signal to Noise Ratio: 116 dB Rated RCA Output Level and Impedance: ■...
  • Page 32 1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396 I1108-1 SN 29400826 (C) Copyright 2011 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved. * 2 9 4 0 0 8 2 6 *...
