Onkyo C-7000R Service Manual

SERVICE MANUAL SERVICE MANUAL

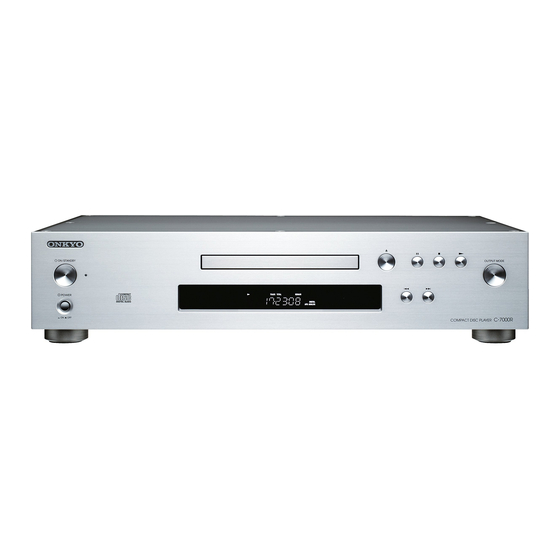

COMPACT DISC PLAYER
C-7000R(S)/(B)
MODEL
POWER
ON OFF
MEMORY CLEAR
Black and Silver models
B MPP
S MPP
B MDC
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
Schematic Diagram AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
LINEAR SINGLE Bit D/A CONVERTER
DISPLAY
230V AC, 50Hz
230V AC, 50Hz
120V AC, 60Hz
ON THE
C-7000R
Ref. No. 4254
012011
PAUSE STOP PLAY
PHONES PHONES LEVEL
MIN MAX
DX-7333
COMPACT DISC PLAYER
RC-796C
