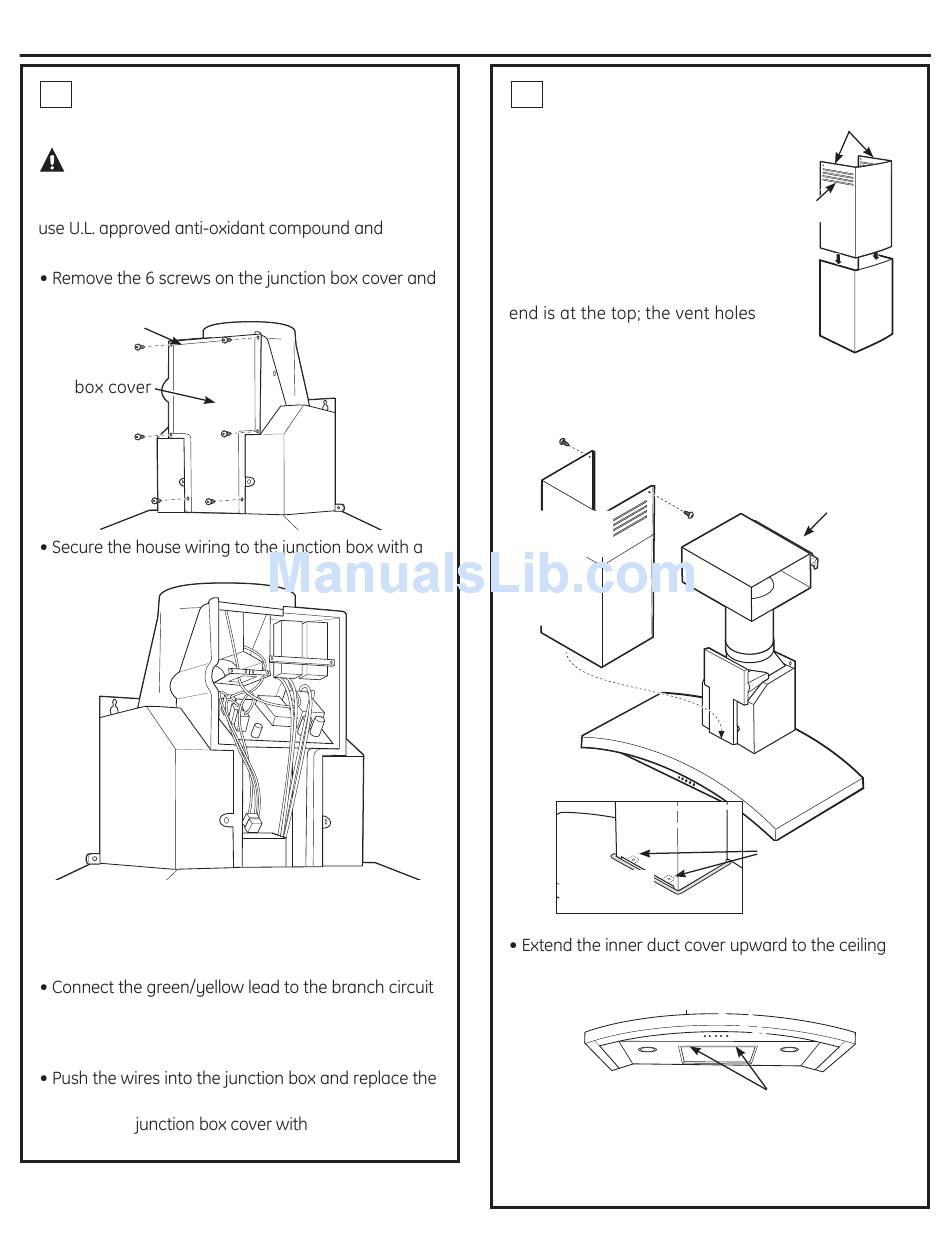

6 CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARNING:
with a ground wire, a ground must be provided by the
installer. When house wiring is aluminum, be sure to
aluminum-to-copper connectors.
the knockout on the top left side.
Knockout
Junction
strain relief.
• Connect the white lead to the branch circuit white
lead.
• Connect the black lead to the branch circuit black
lead.
green lead or bare ground lead.
• Secure all the connections with wire nuts on each
electrical connector.
cover. Be sure the wires are not pinched.
• Secure the
screws.
49-80549-2

Installation Instructions

If house wiring is not 2-wire
the 6 original
7 INSTALL DUCT COVERS
• Remove protective plastic
covering.
• Assemble duct covers
according to application.
NOTE: The upper duct cover
has vent holes on one end
intended for use when the hood
is installed for recirculating
purposes. Be sure the vented
will be visible in this installation.
Slide the upper duct cover into
the folded ends of the lower duct cover.
• Place the decorative duct covers on top of the hood.
Upper duct
cover
Lower
duct cover
Lower duct
cover seat
bracket.
• Secure with 2 screws to the duct cover bracket.
• Remove the packing material from the filter opening.
• Locate the screw holes on the inside front edge of
the opening. Install 2 screws to secure the lower
duct cover to the hood.
Mounting screws
Vent holes
Duct cover
support
bracket
Duct cover
attachment tabs
Screw holes
